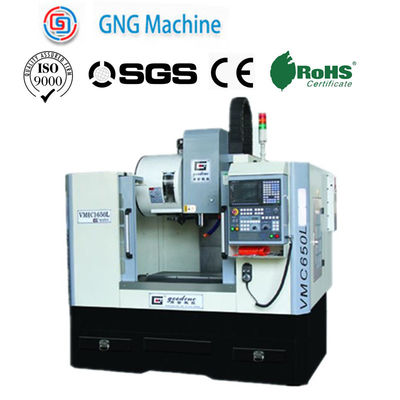

380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center

I'm Online Chat Now

380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center

380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center
380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center
380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center 380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center 380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center 380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center 380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center 380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center 380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center

Large Image :  380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center

Product Details:
Place of Origin: China
Certification: CE, RoHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

380V Cnc Metal Milling Machine With Foot Pads CNC Machine Center

Description
Model NO.: VMC650L Automatic Grade: Automatic
Precision: High Precision CNC Milling Machine: Vmc650L
CNC Center: Vmc650L Table Size L(mm)× W(mm): 900× 360
T Slot Qty /Width/Interval Distance(mm): 3-14-120 Maximum Load(Kg): 400
Control: Siemens 808d Transport Package: Ply Wood
Specification: 650L Trademark: CUSTOMER BRAND
Origin: Shangdong Chain HS Code: 84571010
Supply Ability: 300sets/ Per Year Type: Meter Milling Machine
Object: Casting ,or Steel Structure: Dedicated
Milling Cutter Type: Vertical Milling Cutter Milling Cutter Structure: Indexable Type
Controlling Mode: CNC
High Light:

380V Cnc Metal Milling Machine

,

380V Cnc Milling Machine

,

Foot Pads Cnc Metal Milling Machine

High Efficiency CNC Center Drilling&Milling Machine

Company Info.

Basic Info.

Model NO.
VMC650L
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS
CNC Milling Machine
Vmc650L
CNC Center
Vmc650L
Table Size L(mm)× W(mm)
900× 360
T Slot Qty /Width/Interval Distance(mm)
3-14-120
Maximum Load(Kg)
400
Control
Siemens 808d
Transport Package
Ply Wood
Specification
650L
Trademark
CUSTOMER BRAND
Origin
Shangdong Chain
HS Code
84571010
Production Capacity
300sets/ Per Year

Product Description



Min. Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T

Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: VMC650L
Type: Vertical
CNC or Not: CNC
Voltage: 380V
Power(W): 7500W
Weight: 3000kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Delivery Detail: 30-45days
High Efficiency CNC Center Drilling&Milling Machine
High Efficiency CNC Center Drilling&Milling Machine
High Efficiency CNC Center Drilling&Milling Machine
Specifications
CNC machine center
Vertical machine center

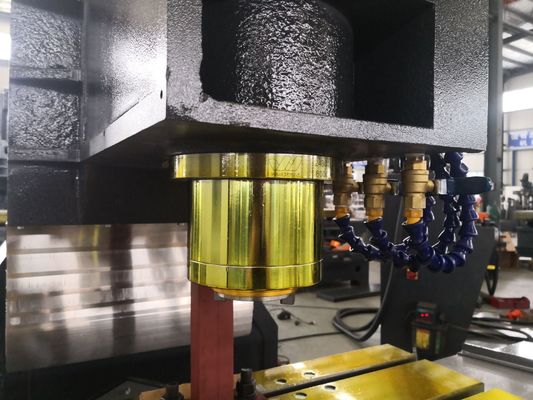

Taiwan spindle, Taiwan linear guideways

NO.

ITEM
Specification

1

Table size L(mm)× W(mm)
900× 360

2

T slot QTY /width/interval distance(mm)
3-14-120

3

Maximum load(KG)
400

4

X travel (mm)
650

5

Y travel (mm)
380

6

Z travel (mm)
480

7

Spindle nose to table (mm)
100-600

8

Spindle center to column (mm)
410

9

Spindle taper
BT40/120

10

Max. spindle speed (Rpm)
8000

11

Main motor (kW)
7.5

12



Feed motor



X torque(N. M)
6

Y torque(N. M)
7.7

Ztorque(N. M)
7.7

Max. install size
7.5

13

Rapid moving speed (m/min. )
12/12/10

14

Cutting speed (mm/min)
1-6000

15

Ball screw (diametermm/pitch )mm

32/10

17
Accuracy


Positioning accuracy (mm)
0.016

Repeatability accuracy (mm)
0.008

18

Tool changer

Funnel type (optional ) BT40

10 or 12

19

Air pressure Mpa
0.6

20

Machine weight (kg)

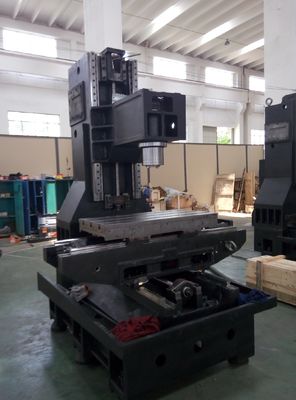

Frame
2500

Complete machine
3000

21

Machine overall size:

L(mm)× W(mm)× H(mm)

Frame
2200× 1550× 2000

Complete machine
2500x2250x2300

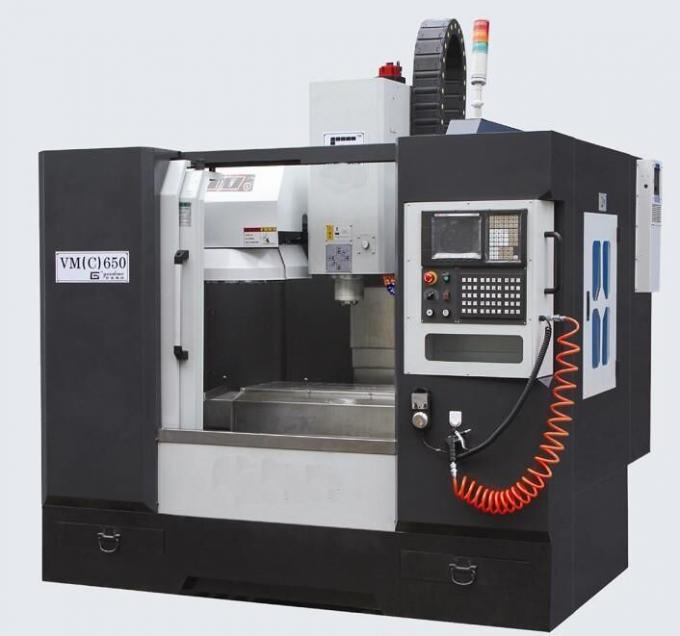

CNC  LATHE MODEL VMC650
GSK808Dcontrol                    Sinmense   system control
  1. Full metal cover and inner cover
2----16 tools ARM type tool changer
3---Siemense  spindle
4---cylinder
5---oil pump
6---water pump
7-air system

FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.

Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.

Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)

Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.

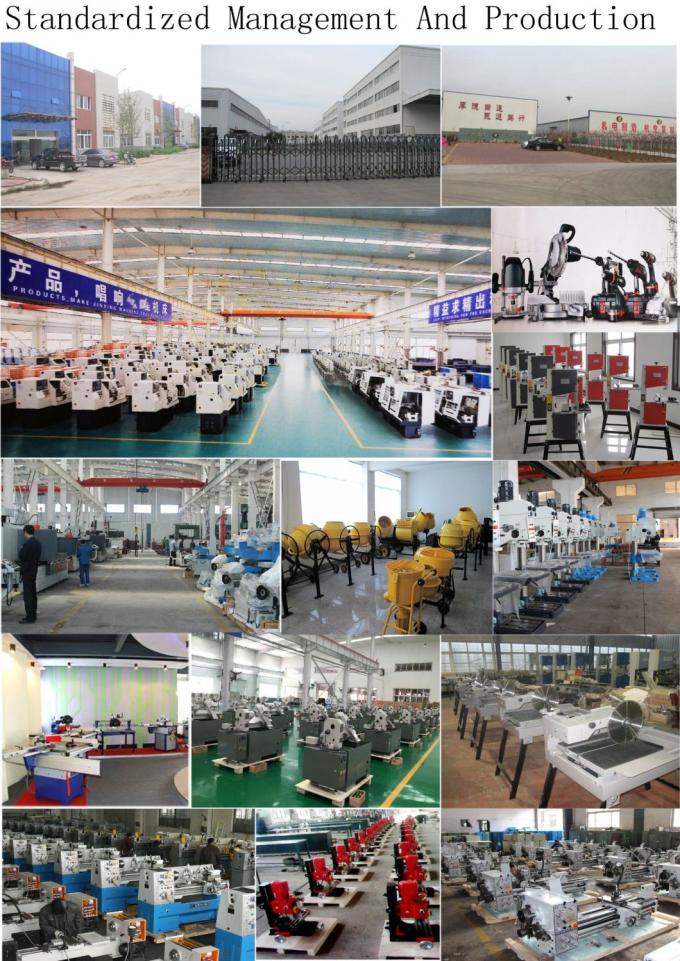

Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.

Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.


High Efficiency CNC Center Drilling&Milling Machine




High Efficiency CNC Center Drilling&Milling Machine
