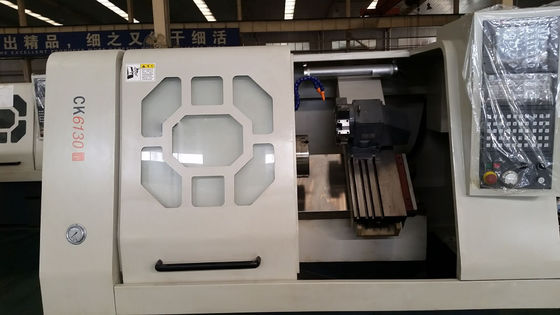

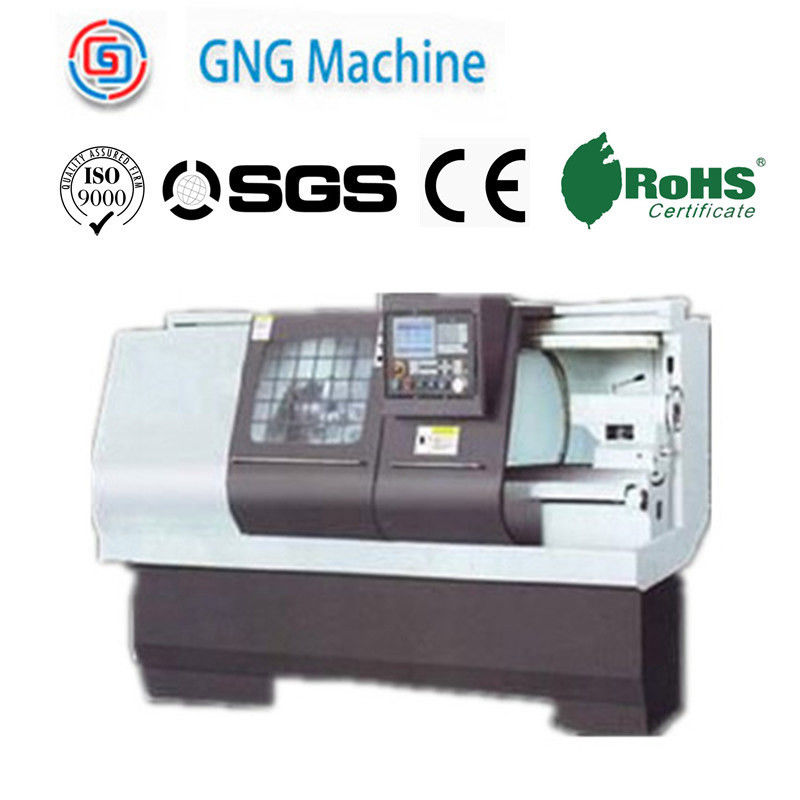

Product Details:
|
| Model NO.: | CK6136 | Automatic Grade: | Automatic |
|---|---|---|---|
| Setting Mode: | Table | Precision: | Precision |
| Condition: | New | Max.Swing Over Bed: | 360mm |
| Max.Diameter Over Slide: | 180mm | Bed Width: | 340mm |
| Size Of Tool Shank: | 20X20mm | Travel Of Tailstock Quill: | 140mm |
| Transport Package: | Package | Specification: | CE |
| Trademark: | G&G | Origin: | China Jiangsu |
| HS Code: | 845891000 | Supply Ability: | 300/Per Month |
| Type: | Horizontal Lathe | Processing Accessory: | Chuck CNC Lathe |
| Guide Rail: | Horizontal Guide Rail | Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric | Controlling Mode: | CNC |
| High Light: | Ck6136 CNC Metal Lathe,Ck6136 Cnc Precision Automatic Lathe,Horizontal Cnc Precision Automatic Lathe |
||
Min.Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: CNC
Automatic Grade: Automatic
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CK6136
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days

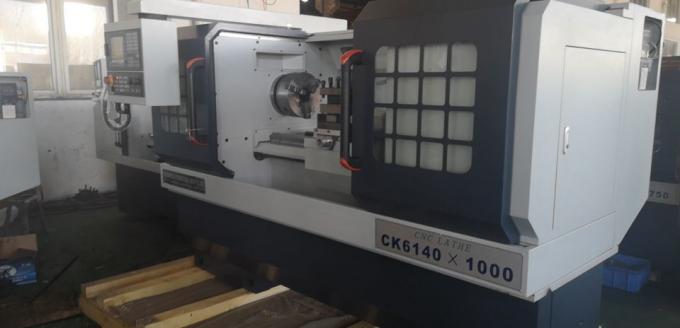

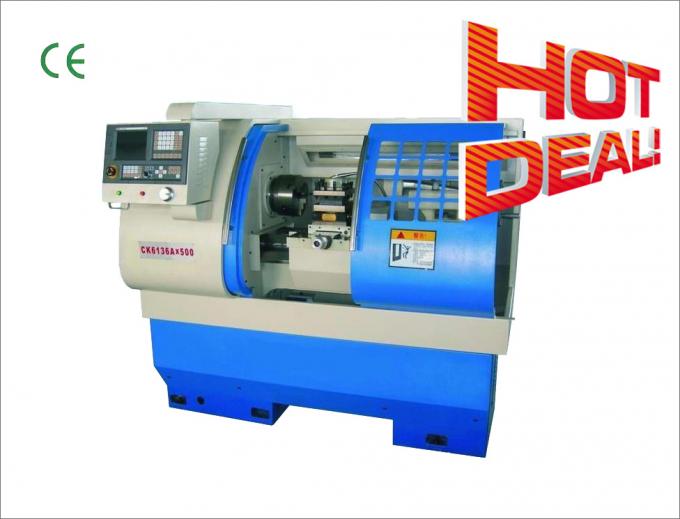

| CK6136/6140 CNC LATHE | |||||
| Technical spec. | CK6136 | CK6136A | CK6140 | CK6140A | |
| FOBQingDao Price(USD) | |||||
| Max.swing over bed | mm | Φ360 | Φ400 | ||
| Max.diameter over slide | mm | Φ180 | Φ200 | ||
| Max.turning length | mm | 650/850 | |||
| Spindle speed | rpm | 300-2000 | S:150-600 | 300-2000 | S:150-600 |
| M:300-1250 | M:300-1250 | ||||
| H:500-2000 | H:500-2000 | ||||
| Bed width | mm | 340 | |||
| Spindle bore | Φ60 | ||||
| Spindle taper | MT6 | ||||
| Spindle nose | A2-6 | ||||
| No.of tool stations | 4 | ||||
| Size of tool shank | mm | 20x20 | |||
| Diameter/taper of tailstock quill | Φ60/MT4 | ||||
| Travel of tailstock quill | mm | 140MM | |||
| Motor power | KW | 5.5 | |||
| Max.travel X axis | mm | 240 | |||
| Max.travel Z axis | mm | 650/850 | |||
| Min.input unit | mm | 0.0001 | |||
| Driving motor torque of X/Z axis | Nm | 4/6 | |||
| Over all dimensions (LxWxH) | mm | 2180/2380x1400x1590 | |||
| Package dimensions(LxWxH) | mm | 2370/2570x1600x2100 | |||
| Net/Gross weight | kg | 1700/1900 1800/2000 | 1750/1950 1850/2050 | 1750/1950 1850/2050 | 1800/2000 1900/2100 |
| Special accessories | 1.Φ72/Φ85 spindle bore 5.hydraulic tailstock 2.air chuck 6.quick clamp 3.hydraulic chuck 7.steady rest 4.air tailstock 8.follow rest http://gngmachine.en.made-in-china.com |
||||
