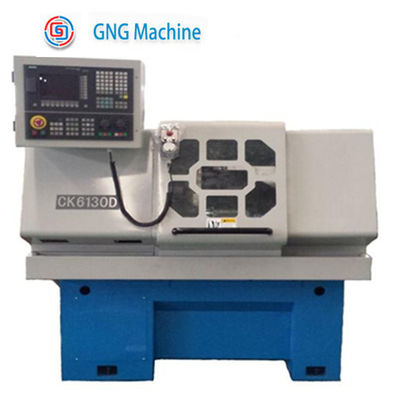

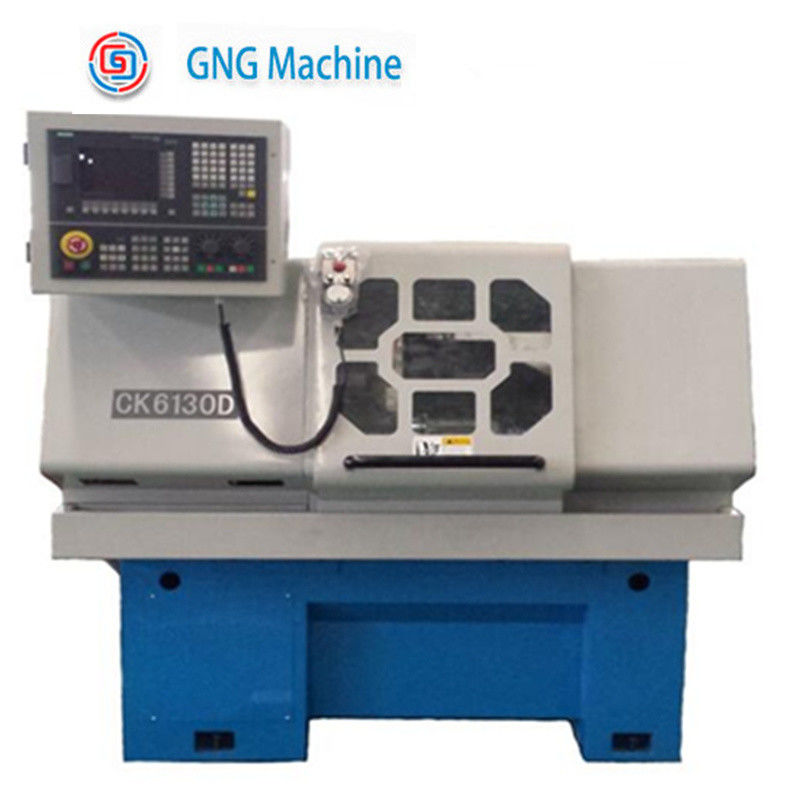

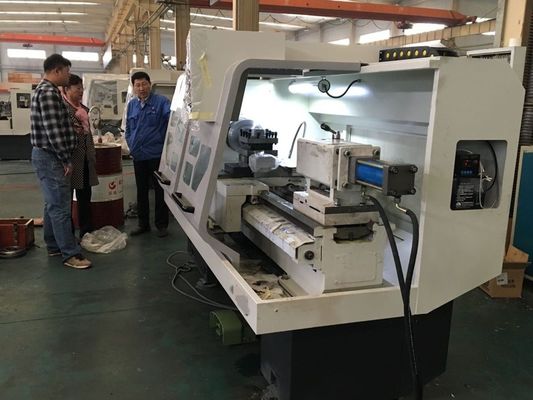

Taper Surface Metal Cnc Turning 340mm Programmable Metal Lathe

Large Image : Taper Surface Metal Cnc Turning 340mm Programmable Metal Lathe

Product Details:

Place of Origin:	China
Certification:	GS, CE, ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 1000-39000
Packaging Details:	Carton/Wooden case
Delivery Time:	30-45days
Payment Terms:	T/T
Supply Ability:	10sets/month

Contact Now

Taper Surface Metal Cnc Turning 340mm Programmable Metal Lathe

Description

Model NO.:	CAK6130D	Condition:	New
Max. Swing Diameter Over Bed:	340mm	Max. Swing Diameter Over Slide:	170mm
Spindle Speed (Infinitely):	100-4000r/Min	Spindle Bore:	42mm
Spindle Taper:	Mt5	Max. Longitudinal Stoke:	435mm
Transport Package:	Package	Specification:	CE
Trademark:	G&G	Origin:	China Jiangsu
HS Code:	845899000	Supply Ability:	10/Month
Application:	Metal	Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Contour Control	Control Method:	Semi-Closed Loop Control
Numerical Control:	CNC/MNC	Performance Classification:	High-End CNC Machine Tools
High Light:	Metal Cnc Turning 340mm , 340mm Programmable Metal Lathe , Taper Surface Metal Cnc Turning

High Precision Electric Horziontal CNC Matel Lathe

Main feature
CAK6130D is high efficient CNC lathe.It can turn cylindrical surface,taper surface,arc surface,internal hole,slots and threads,and is suitable for single or mass production of parts.
Standard configuration:

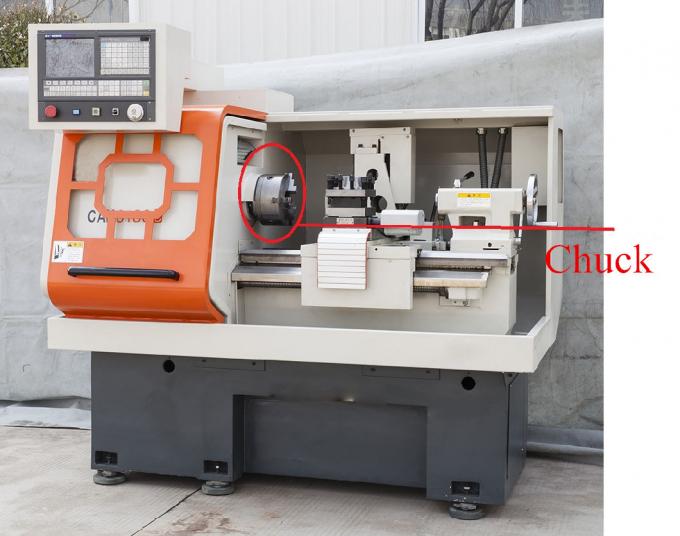

3-jaw chuck
lighting system
automatic lubricating system
cooling system
Siemens 808D system
4 station electric tool post
Special configuration:
gang type tool holder
6 station electric tool post
sleeve spring collet
pneumatic chuck
other brand CNC system

Parameter
SPECIFICATIONS	CAK6130D
Max. swing dia. over bed	ф340
Max. swing diameter over table	170mm
Spindle speed (infinitely)	100-4000r/min
Spindle bore	42mm
Spindle taper	MT5
Distance between centers	435mm
Max. longitudinal stoke	435mm
Max. cross stoke	260mm
Tailstock stroke	70mm
Tailstock taper	MT3
Turning tool size	20 x20mm
Rapid feed	X:6 Z:8 m/min
Circle	0.005mm/100mm
Cylinder	0.016mm/100 mm
Power of motor	3KW
Min. setting unit	0.001mm
Repositioning accuracy	X: 0.012 Z:0.016 mm
N.W./G.W.	1100/1200Kg
Overall dimensions(L´H´W)	1600x1470x1950mm

CNC Lathe Machine Characteristics:
CNC machine tool is the abbreviation of digital control machine tool, which is an automatic machine tool with program control system. The control system can logically process and decode the program with control code or other symbolic instructions to cause the machine to operate and machine the part.
Compared with ordinary machine tools, CNC machine tools have the following characteristics:
1. High processing precision and stable processing quality;
Multi-coordinate linkage can be performed to process parts with complex shapes;
2. When the machined parts are changed, generally only need to change the NC program, which can save production preparation time;
3. The machine tool itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (usually 3~5 times of ordinary machine tools);
4. The degree of automation of the machine tool is high, which can reduce the labor intensity;
5. Widening high stability bed
6.Two gear spindle speed, stepless in gear
7. Wider layor board
8. Intergrated automatic lubrication system.
Application:
CNC lathes are one of the most widely used CNC machine tools. The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece, and could also turn various threads, circle arc, circle cone, inside and outside surface of revolved body. and can be used for grooving, drilling, reaming and reaming. Holes and pupils, etc.This machine is widely used in sanitary, value, electrical appliance, instrument, automobile, motor cycle, bearing and so on.
