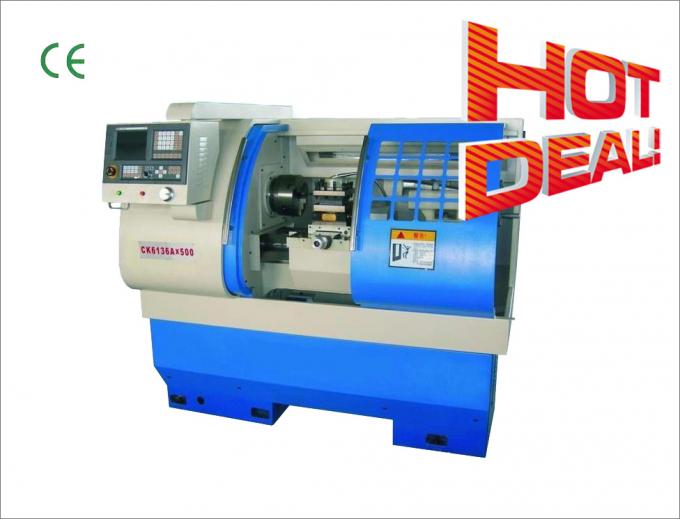

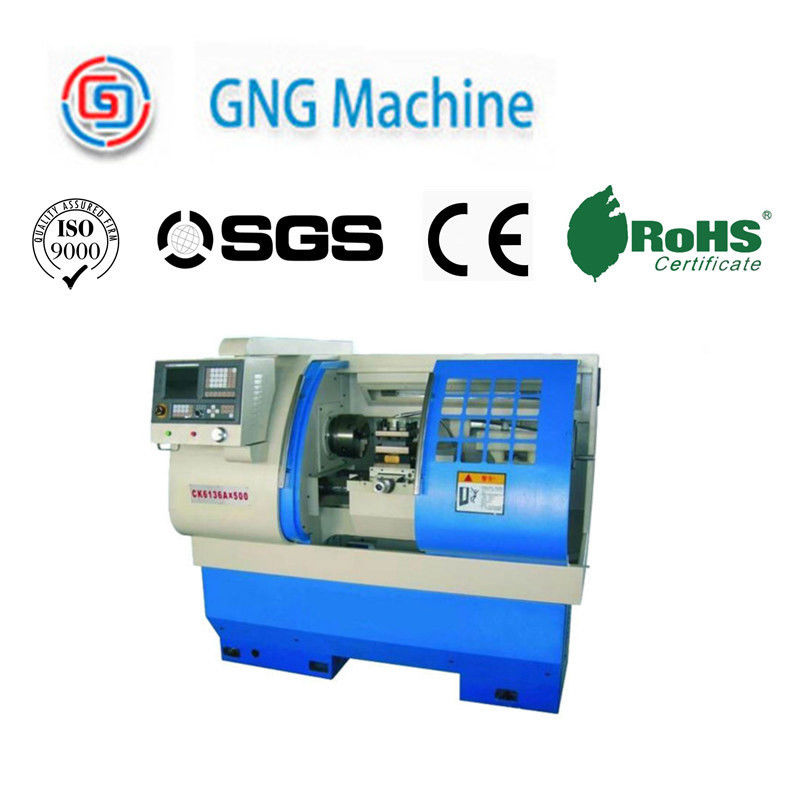

CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine

I'm Online Chat Now

CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine

CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine
CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine

Large Image :  CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

CE Certification CNC Metal Lathe Horizontal High Precision Lathe Machine

Description
Model NO.: Ck6136 Power Source: Electric
Controlling Mode: CNC Automatic Grade: Automatic
Setting Mode: Table Precision: Precision
Condition: New Max.Swing Over Bed: 360
Max.Diameter Over Slide: 180 Max.Turning Length: 650/850
Bed Width: 340 Spindle Taper: Mt6
Transport Package: Package Specification: CE
Trademark: G&G Origin: China Jiangsu
HS Code: 84589900 After-sales Service: Unlimited After-Sales Service
Warranty: Unlimited After-Sales Service Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe
High Light:

CE CNC Metal Lathe

,

CE High Precision Lathe Machine

,

Horizontal High Precision Lathe Machine

CNC Metal Processing High Precision Lathe Machine

Min.Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T

Quick Details
Condition: New
Type: Horizontal
CNC or Not: CNC
Automatic Grade: Automatic
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CK6136
Certification: CE
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Delivery Detail: 30-45days

Specifications
The machine is a CNC lathe controlled by a microcomputer and driven by servo motors.

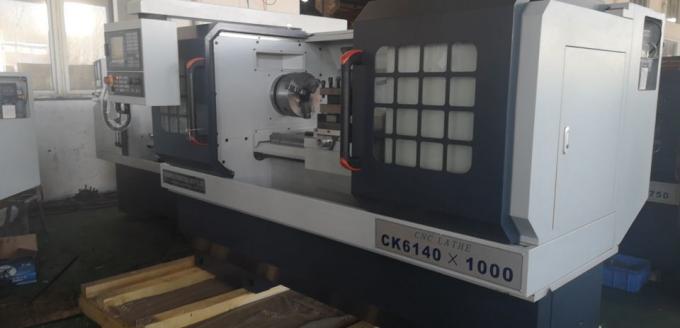

CK6136/6140 CNC LATHE
Technical spec.   CK6136 CK6136A CK6140 CK6140A
FOBQingDao Price(USD)
Max.swing over bed mm Φ360 Φ400
Max.diameter over slide mm Φ180 Φ200
Max.turning length mm 650/850
Spindle speed rpm 300-2000 S:150-600 300-2000 S:150-600
M:300-1250 M:300-1250
H:500-2000 H:500-2000
Bed width mm 340
Spindle bore   Φ60
Spindle taper   MT6
Spindle nose   A2-6
No.of tool stations   4
Size of tool shank mm 20x20
Diameter/taper of tailstock quill   Φ60/MT4
Travel of tailstock quill mm 140MM
Motor power KW 5.5
Max.travel X axis mm 240
Max.travel Z axis mm 650/850
Min.input unit mm 0.0001
Driving motor torque of X/Z axis Nm 4/6
Over all dimensions (LxWxH) mm 2180/2380x1400x1590
Package dimensions(LxWxH) mm 2370/2570x1600x2100
Net/Gross weight kg 1700/1900 1800/2000 1750/1950 1850/2050 1750/1950 1850/2050 1800/2000 1900/2100
Special accessories
1.Φ72/Φ85 spindle bore 5.hydraulic tailstock
2.air chuck 6.quick clamp
3.hydraulic chuck 7.steady rest
4.air tailstock 8.follow rest

http://gngmachine.en.made-in-china.com

FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.

2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
     We can Provide Technical support online service  and Machine operation Vedio
     We can provide on-site  training and commissioning Vedio
     We can Provide Spare parts replacement and repair service
     Give reasonable offers with the best quality.

3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
      OEM Accepted: We can produce customized design.
      Good Service: We treat clients as friends and provide problem solving anytime you need.
       Good Quality: We have strict quality control system. Good reputation in the market.
       Fast & Delivery: We have big discount from forwarder (Long-term Contract).

4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us

5. What is the MOQ?
---->We usually provide 1 set for customers to test.

6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before delivery)

8.Agents Wanted:

---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
