Flate Bed 400mm Cnc Metal Turning Lathe Horizontal ISO 9001 Hardway

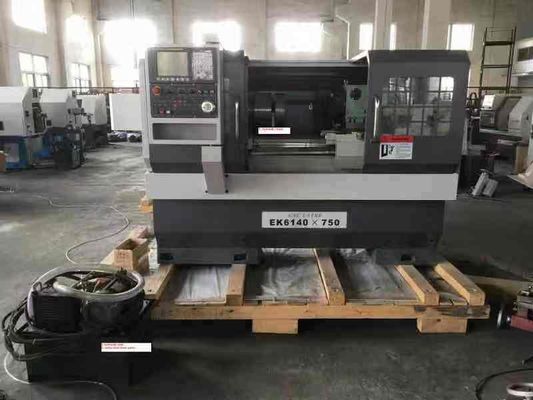

Large Image : Flate Bed 400mm Cnc Metal Turning Lathe Horizontal ISO 9001 Hardway

Product Details:

Place of Origin:	China
Certification:	CE, ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 1000-39000
Packaging Details:	Carton/Wooden case
Delivery Time:	30-45days
Payment Terms:	T/T
Supply Ability:	10sets/month

Contact Now

Flate Bed 400mm Cnc Metal Turning Lathe Horizontal ISO 9001 Hardway

Description

Model NO.:	CK6166	Automatic Grade:	Automatic
Setting Mode:	Table	Precision:	Precision
Condition:	New	System:	Siemens 808da
Max. Swim Over Bed:	Φ 660mm	Max. Swim Over Carriage:	Φ 400mm
Transport Package:	Package	Specification:	CE
Trademark:	G&G	Origin:	China Jiangsu
Supply Ability:	300/Per Month	Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe	Guide Rail:	Horizontal Guide Rail
Tool Holder:	Single-tool Holder CNC Lathe	Power Source:	Electric
Controlling Mode:	CNC
Highlight:	400mm Cnc Metal Turning Lathe , 400mm CNC Metal Lathe , Flate Bed Cnc Metal Turning Lathe

Flate Bed And Hardway CNC Metal Lathe

CK6166X1000 Flate Bed And Hardway CNC Lathe
Min.Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Flate Bed 400mm Cnc Metal Turning Lathe Horizontal ISO 9001 Hardway 0

Flate Bed 400mm Cnc Metal Turning Lathe Horizontal ISO 9001 Hardway 0

Quick Details
Condition: New
Type: Horizontal
CNC or Not: CNC
Automatic Grade: Automatic
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CK6166
System: Siemens 808DA
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days

Specifications
All cnc lathe certification ISO 9001:2000 cnc lathe
quality of our cnc lathe fine and price low
CNC metal lathe machine

Items	Specifications
Max. Swim Over Bed	Φ 660mm
Max. Swim Over Carriage	Φ 400mm
Max. Cutting Length	1000mm
Rail Width	460mm
Spindle Nose	A2-11
Spindle Bore	Φ 150mm
Taper Of Spindle Bore	Φ 113mm,1:20
Chuck	12"
With 3 Change Gears	30-150,100-500,150-1000rpm
X a-xis Travel	380mm
Z a-xis Travel	1000mm
X/Z Rapid Speed	5/8m/min
X/Z Screw	3206/5010
Hydralldic Turret	4 or 6 or 8
Max. Section Of Tool	32x32mm
Stroke Of Tailstock Sleeve	150mm
Diameter/Hole Of Tailstock Sleeve	Φ 75mm/MT5
Main Motor Power	11 KW
Coolant Pump Power	180W
Overall Dimensions	3000x1400x1700mm
Net weight	3600kg

Flate Bed 400mm Cnc Metal Turning Lathe Horizontal ISO 9001 Hardway 1

CNC Lathe Machine Characteristics:
CNC machine tool is the abbreviation of digital control machine tool, which is an automatic machine tool with program control system. The control system can logically process and decode the program with control code or other symbolic instructions to cause the machine to operate and machine the part.

Compared with ordinary machine tools, CNC machine tools have the following characteristics:
1. High processing precision and stable processing quality;
Multi-coordinate linkage can be performed to process parts with complex shapes;
2. When the machined parts are changed, generally only need to change the NC program, which can save production preparation time;
3. The machine tool itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (usually 3~5 times of ordinary machine tools);
4. The degree of automation of the machine tool is high, which can reduce the labor intensity;
5. Widening high stability bed
6.Two gear spindle speed, stepless in gear
7. Wider layor board
8. Intergrated automatic lubrication system.

Application:
CNC lathes are one of the most widely used CNC machine tools. The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece, and could also turn various threads, circle arc, circle cone, inside and outside surface of revolved body. and can be used for grooving, drilling, reaming and reaming. Holes and pupils, etc.This machine is widely used in sanitary, value, electrical appliance, instrument, automobile, motor cycle, bearing and so on.

FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.

2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.

3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).

4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us

5. What is the MOQ?
---->We usually provide 1 set for customers to test.

6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before delivery)

8.Agents Wanted:

---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
