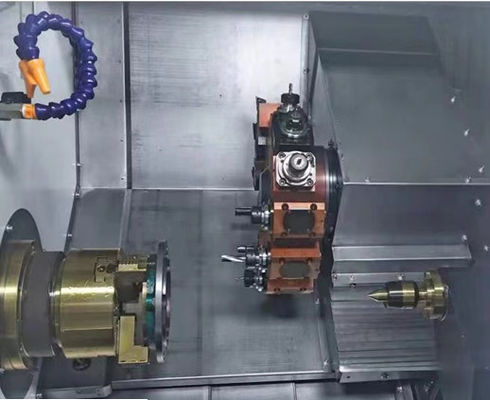

High Rigidity CNC Metal Drilling Milling Grinding Machine Heavy Cutting

CNC Metal Drilling Milling Grinding Machine

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
CNC or Not: CNC
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Delivery Detail: 30-45days

Specifications
CNC-650TC turn-milling compound machine parameters

Technical Parameters			Standard configuration
project	name	parameter	Accessory Name	Origin	Brand	Remarks
bed frame	Bed, base of high quality cast iron into one, 30 ° inclined bed		numerical control system	Japan
Processing range	Maximum turning diameter of bed	600mm	Spindle servant	Japan
	Maximum machining diameter of disc	320mm	feed axis servo	Japan
	Maximum machining diameter of the drag plate	320mm	turret servo	Joint venture
	Maximum processing length of bar stock	480mm	Mechanical spindle	Taiwan	JIANCHUN
	Maximum bar through hole diameter	Ф51	screw bearing	Japan	NACHI
			roller linear guide	Taiwan	YINTAI
stroke feed	X-axis maximum travel	220mm	ball screw	Taiwan	FANUC 0I-TF	5Bag
	Maximum Z-axis travel	520mm	Servo power turret	Taiwan	FANUC
	X/Z axis fast movement rate	30min	hollow hydraulic chuck	Taiwan	FANUC
	X/Z Screw Diameter/Pitch	X:4010 Z:32/10	Hydraulic system	Joint venture	TAIDA/HUICHUAN
	X/Z Linear Guide Width	45mm	automatic lubrication system	Joint venture	YUPU
	X-axis servo motor	β12(With brake )	Cooling water pump	Joint venture	WANQIAN
	Z-axis servo motor	β12	Electrical components	France
	turret servo motor	3N.M
	Power head motor	β12
Accuracy OGE O	X and Z axis positioning accuracy	±0.003mm
	X, Z axis repeatability	±0.003mm
Tailstock	Specification of tailstock sleeve	Mohs#5
	Tailstock sleeve travel	25~525	random file
	Cocktail pressure range	5~25pa	Factory certificate * 1 copy System Operating Instructions * 1 copy System Programming Manual * 1 copy
	Tailstock movement mode	Programmable hydraulic movement
Spindle	Spindle nose type	A2-8
	Spindle through hole diameter	Φ101
	Maximum spindle speed	4500rpm
	Spindle servo motor power	11kw
Tool	Servo power turret	BMT55/12T
	Cutter head size	330
	Handle specifications	25*25
	Boring bar	Ф32
	0 degree side milling head (1)	ER32/3000 Turn
	90 degree side milling head (1)	ER32/3000 Turn
Other	Total capacitance	26KW
	net weight of machine tool	About 4000kg
	Machine size (length * width * height)	2800*1700*2000

There may be errors between this product description, data and reality, if there is any change will be notified separately!

product characteristics
High rigidity, heavy cutting, high stability: the use of integral casting type inclined bed, 30 ° inclined bed structure, and with thick reinforcement design, to minimize the distortion and thermal deformation.
High precision and high dynamic response: high precision ball bearings are used at the front and back, so that the spindle can obtain high rigidity and high spindle rotation accuracy. The spindle servo unit has high precision and convenient maintenance.
High efficiency: the maximum spindle speed 4500 rpm/min, fast movement up to 30 m/min. Through the configuration of Fanaco CNC system, the X-C axis linkage interpolation is realized, and the virtual Y-axis function is realized.
