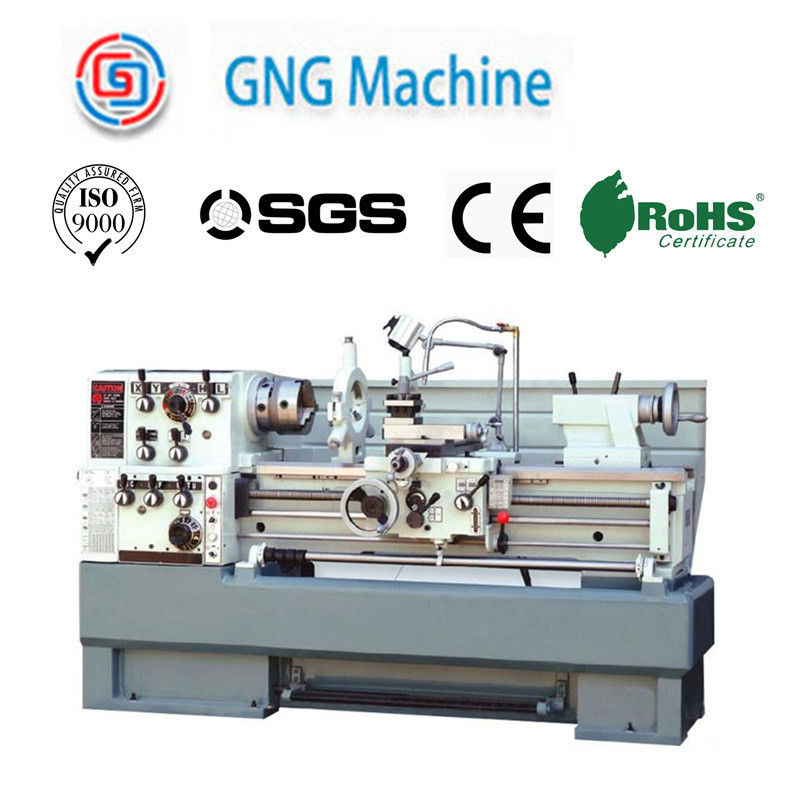

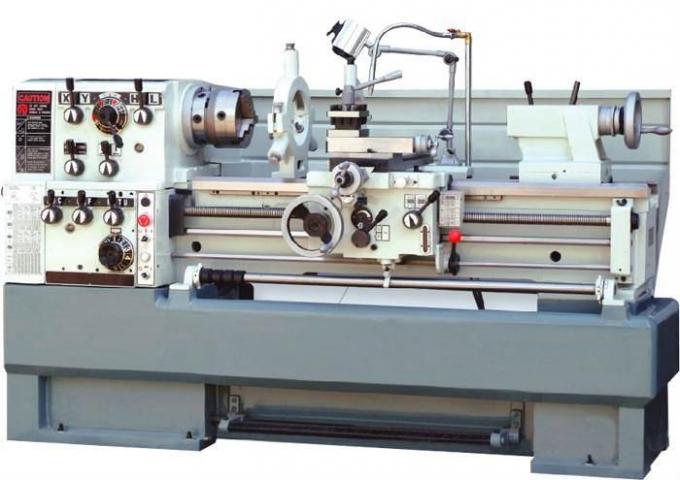

C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe

I'm Online Chat Now

C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe

C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe
C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe
C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe

Large Image :  C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

C6241 CNC Metal Lathe 230V Double Wall Structure Metal Bench Lathe

Description
Model NO.: C6241 Automatic Grade: Manual
Setting Mode: Table Precision: Precision
Condition: New Swing Over Bed: 410mm(16" )
Swing Over Cross Slide: 224mm(8-13/16" ) Swing In Gap: 640mm(25-1/8" )
Length Of Gap: 155mm(6-1/8" ) Max Length Of Workpiece: 1000mm(40" )/1500(60" )
Transport Package: Package Specification: CE
Trademark: G&G Origin: China Jiangsu
HS Code: 84589900 Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe Power Source: Electric
Controlling Mode: Artificial
High Light:

CNC Metal Lathe 230V

,

230V Metal Bench Lathe

,

Double Wall Structure Metal Bench Lathe

C6241 High Precision Heavey Duty High Speed Metal Lathe Bench Lathe

Min. Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T

Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 410mm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: C6241
Voltage: 230V
Power(W): 4000W
Certification: CE
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Delivery Detail: 30-45days

Specifications
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure,giving super rigidity.

C6241/6246 PRECISION LATHE MACHINE

C6241 High Precision Heavey Duty High Speed Metal Lathe Bench LatheC6241 High Precision Heavey Duty High Speed Metal Lathe Bench Lathe

Min. Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T

Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 410mm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: C6241
Voltage: 230V
Power(W): 4000W
Certification: CE
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Delivery Detail: 30-45days

Specifications
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure,giving super rigidity.
C6241/6246 PRECISION LATHE MACHINE
Technical spec.

C6241 C6246
FOBQingDao Price(USD)





Swing over bed

410mm(16" ) 460mm(18" )
Swing over cross slide

224mm(8-13/16" ) 274mm(10-3/4" )
Swing in gap

640mm(25-1/8" ) 690mm(27-1/8" )
Length of gap

155mm(6-1/8" )
Max length of workpiece

1000mm(40" )/1500(60" )
Bed width

300mm(11-13/16" )
Spindle nose

D1-6
Spindle bore

58mm(2-1/4" )
Taper of spindle bore

NO. 6Morse
Range of sppindle speed

12changes 25-2000r/min
Max travel of compound rest

120mm(4-3/4" )
Max travel of cross slide

290mm(11-3/8" )
Leadscrew pitch

Metric 6mm
Max section of tool

25mmx25mm(1x1" )
Longitudinal feeds range

42kninds 0.031-1.7mm/rev
(0.0011" -0.0633" /rev)
Cross feeds range

42kinds 0.014-0.784mm/rev
(0.00033" -0.01837" /rev)
Metric threads range

41kinds 0.1-14mm
Inch threads range

60kinds 2-112T. P. I
Diametrical pitches range

50kinds 4-112D. P
Module pitched range

34kinds 0.1-7M. P
Dia. of tailstock sleeve

60mm(2-5/16" )
Travel of tailstock sleeve

120mm(4-3/4" )
Morse taper of tailstock sleeve

NO. 4 Morse
Power of main motor

4kw(5.4HP) optional 5.5kw(7.5HP)3PH
Power of coolant pump

40W
Standard Accessories 1.3 jaw chuck 8. change gears set
2. chasing dial indicator 9. reduction sleeve
3. dead centers 10. full length splash guard
4. coolant system 11. brake system
5.4 jaw chuck 12. face plate
6. steady rest 13. follow rest
7. tool box & tools
Optional Accessories 1. taper turing attachment 6. live center
2. work light 7. leadscrew guard
3. digital readout 8. quick change tool post
4. chuck guard 9. digital readout (2Axis)
5. drill chuck+drill arbor


C6241 High Precision Heavey Duty High Speed Metal Lathe Bench Lathe
C6241 High Precision Heavey Duty High Speed Metal Lathe Bench Lathe
C6241 High Precision Heavey Duty High Speed Metal Lathe Bench Lathe
C6241 High Precision Heavey Duty High Speed Metal Lathe Bench Lathe
C6241 High Precision Heavey Duty High Speed Metal Lathe Bench Lathe
