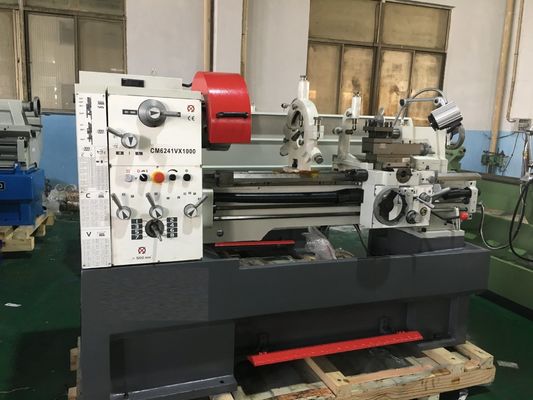

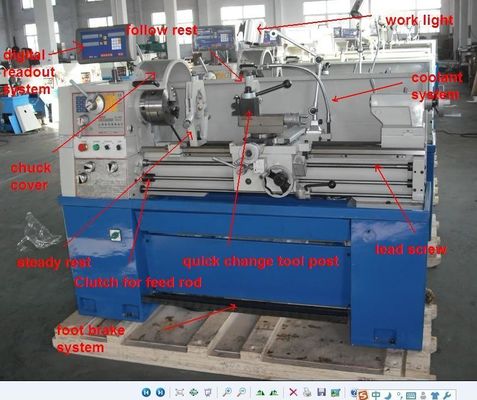

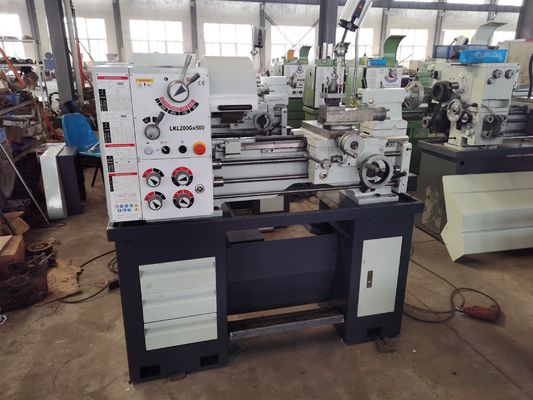

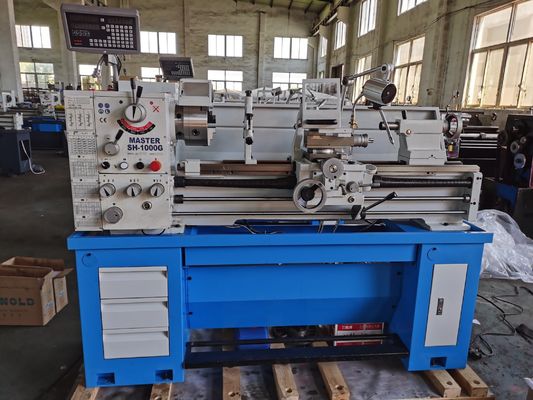

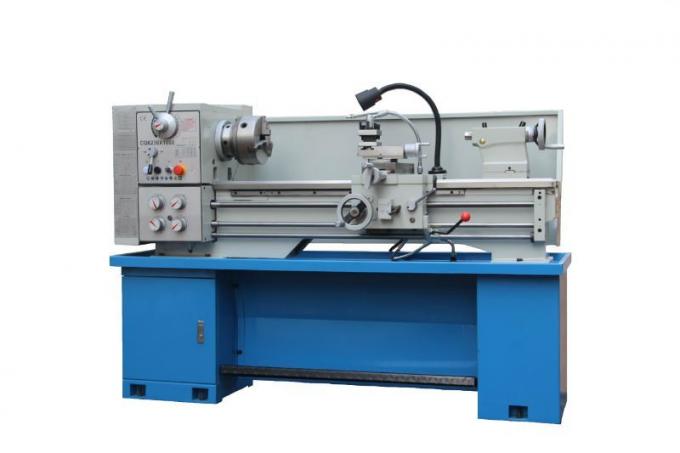

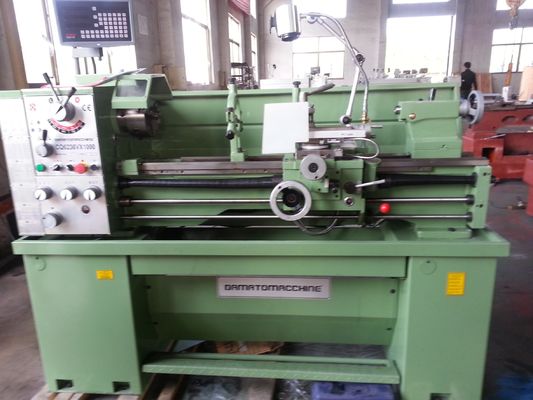

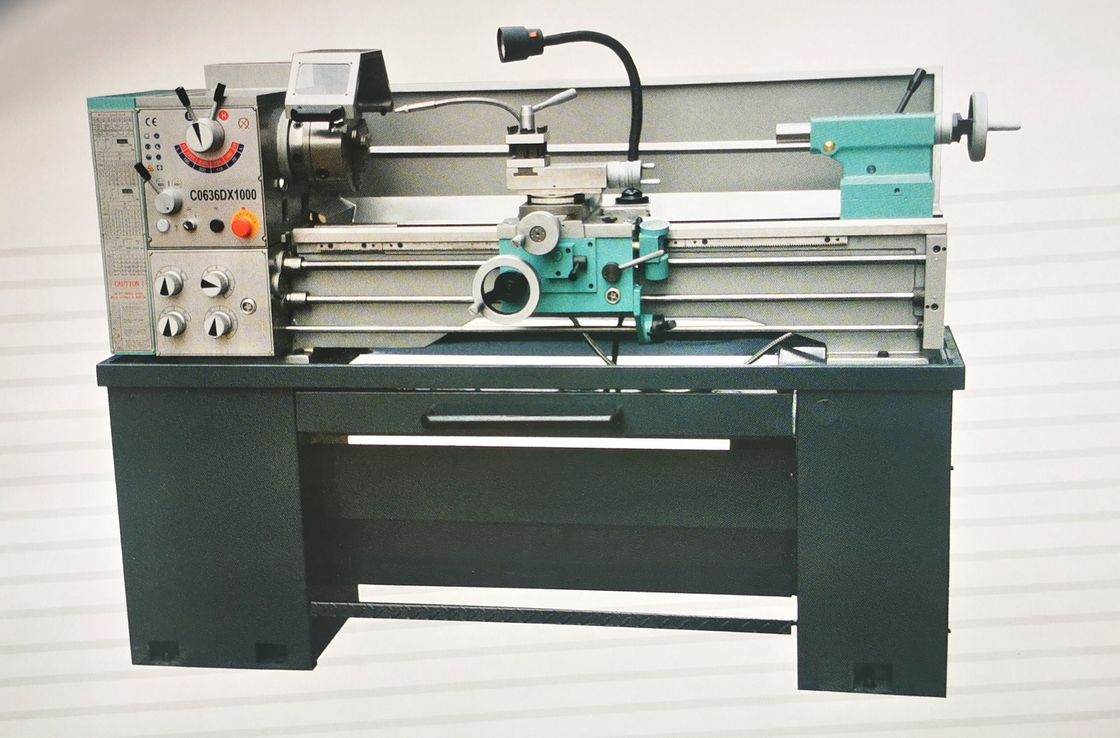

Mechanical Precision Bench Top Metal Lathe 1000mm New Condition

I'm Online Chat Now

Mechanical Precision Bench Top Metal Lathe 1000mm New Condition

Mechanical Precision Bench Top Metal Lathe 1000mm New Condition
Mechanical Precision Bench Top Metal Lathe 1000mm New Condition
Mechanical Precision Bench Top Metal Lathe 1000mm New Condition Mechanical Precision Bench Top Metal Lathe 1000mm New Condition Mechanical Precision Bench Top Metal Lathe 1000mm New Condition Mechanical Precision Bench Top Metal Lathe 1000mm New Condition Mechanical Precision Bench Top Metal Lathe 1000mm New Condition Mechanical Precision Bench Top Metal Lathe 1000mm New Condition Mechanical Precision Bench Top Metal Lathe 1000mm New Condition

Large Image :  Mechanical Precision Bench Top Metal Lathe 1000mm New Condition

Product Details:
Place of Origin: China
Certification: GS, CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

Mechanical Precision Bench Top Metal Lathe 1000mm New Condition

Description
Model NO.: C0636A Automatic Grade: Manual
Setting Mode: Table Precision: Precision
Condition: New Swing Over Bed: 360mm
Swing Over Cross Slide: 224mm Swing In Gap Diameter: 502mm
Length In Gap: Length In Gap Length Between Centers: 1000mm
Center Height: Center Height Transport Package: Package
Specification: CE Trademark: G&G
Origin: China Jiangsu HS Code: 845899000
Type: Horizontal Lathe Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric Controlling Mode: Artificial
High Light:

Bench Top Metal Lathe 1000mm

,

Mechanical Precision Bench Top Metal Lathe

Universal Mechanical Precision Lathe Metal Bench Lathe


Specifications


Model
C0636Ax1000mm
Swing over bed 360mm
Swing over cross slide 224mm
Swing in gap diameter 502mm
Length in gap 130mm
Length between centers 1000mm
Center height 180mm
Width of bed 210mm
Taper in nose MT5
Spindle nose D1-5
Spindle bore 38mm/52mm(optional)
Speeds range 70-2000r/min
Compound rest travel 76mm
Cross slide travel 170mm
Leadscrew thread 3mm pitch
Leadscrew diameter 24mm
Cutting tool max section 16x16 mm
Longitudinal feeds metric 0.052-0.395mm/rev (32Nos.)
Longitudinal feeds imperial 0.002-0.548"/rev (32Nos.)
Cross feeds metric 0.014-0.380mm/rev (32Nos.)
Cross feeds imperial 0.007-0.0187"/rev (32Nos.)
Thread metric pitches 0.4-7mm
Thread imperial pitches 60-4 T.P.I
Thread diametral pitches 44-16.DP
Thread module pitches 0.4-3mm
Quill diameter 32mm
Quill travel 100mm
Quill taper MT3
Main motor power 1.5KW (2HP)
Coolant pump power 40W (1/16HP)
Packing size(cm) 1930*760*1530mm
NW/GW(kg) 540 / 645kg
