80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness

I'm Online Chat Now

80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness

80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness
80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness
80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness 80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness 80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness 80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness 80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness 80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness 80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness

Large Image :  80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

80mm CNC Metal Lathe Constant Torque Cnc Hydraulic Chuck High Roughness

Description
Model NO.: CJ0618A/B Automatic Grade: Manual
Setting Mode: Table Precision: Precision
Condition: New Swing Over Bed: 180mm
Swing Over Cross Slide: 110mm Chuck Diameter: 80mm
Spindle Bore: 20mm Cross Slide Travel: 65mm
Tool Slide Travel: 35mm Transport Package: Package
Specification: CE Trademark: G&G
Origin: China Shanghai HS Code: 94669300
Type: Horizontal Lathe Processing Accessory: Chuck CNC Lathe
Guide Rail: Horizontal Guide Rail Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric Controlling Mode: Artificial
High Light:

80mm CNC Metal Lathe

,

80mm Cnc Hydraulic Chuck

,

Constant Torque CNC Metal Lathe

Mini Engingeers Hobby Metal Bench Lathe

Specifications

*Spindle speed readout
*High-power DC motor
*Variable speed
*Induction harden bedway
*Imported speed control uni

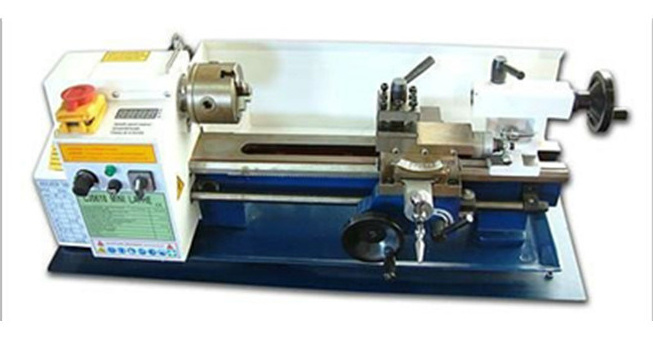

Technical spec. mini engingeers lathe CJ0618A
Distance between centers 200/300/350mm
Swing over bed 180mm
Swing over cross slide 110mm
Spindle taper MT3
Tailstock taper MT2
Chuck diameter 80mm
Spindle bore 20mm
Cross slide travel 65mm
Tool slide travel 35mm
Range of metric threads 0.5-2.5mm
Range of imperial threads 12-52TPI
Spindle accuracy 0.01mm
Spindle speed 50-2500/100-2500RPM
Power of motor 400W/550W
Voltage/Frequency 230V/50Hz or 120V/60Hz
Net weight 35/38/40kg
Gross Weight 38/42/45kg
Packing size 660/760/810x310x320mm
Product featues *This precision mini lathe is designed is to pretorm various types of processing jobs.Counter turming,drilling,threading and cutting jobs on materials made up of round bar and bar maerials can be performed with this machine can be used in areas such as mini precision parts processing,sample processing and modeling works.
*This machine is DC motor drived.
*CJ0618A speed readout mini lathe-spindle speed is inflnltely variable from 50-2500RPM*The feed speed can be adjusted according to the requirement of different workpieces.


Mini Engingeers Hobby Metal Bench Lathe



Mini Engingeers Hobby Metal Bench Lathe







Mini Engingeers Hobby Metal Bench Lathe

Mini Engingeers Hobby Metal Bench Lathe
Mini Engingeers Hobby Metal Bench Lathe
Mini Engingeers Hobby Metal Bench Lathe
Mini Engingeers Hobby Metal Bench Lathe
