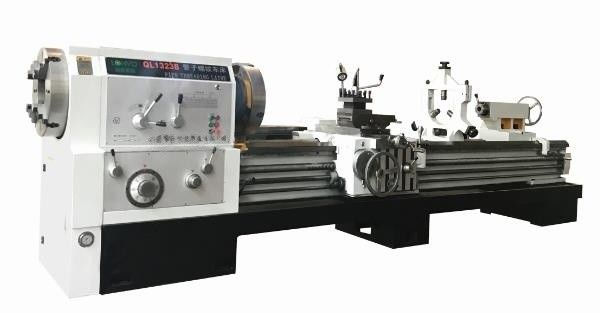

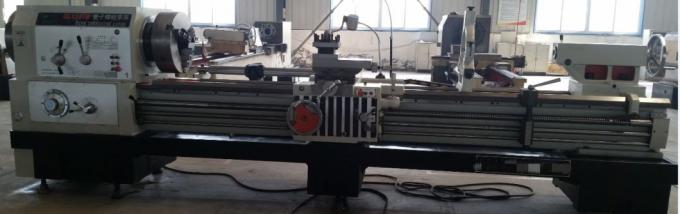

QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

I'm Online Chat Now

QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine
QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

Large Image :  QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T

QL1320 Horizontal Cnc Lathe Surface Roughness Metal Pipe Thread Machine

Description
Supply Ability: 300/Per Month Model NO.: QL1320
Automatic Grade: Manual Setting Mode: Table
Precision: Precision Condition: New
Transport Package: Package Specification: CE
Trademark: G&G Origin: China Jiangsu
HS Code: 84589900 Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe Power Source: Electric
Controlling Mode: Artificial
High Light:

QL1320 Horizontal Cnc Lathe

,

Surface Roughness Horizontal Cnc Lathe

Heavy Duty Metal Pipe Thread Machining Lathe

Heavy Duty Metal Pipe Thread Machining Lathe QL1320
Specification:
Max. swing over bed:  Φ630mm
Max. swing over carriage:  Φ350mm
Max. diameter of turning pipe:  Φ50--200mm
Max. workpiece length :1500mm
Max. traverse of carriage :360mm
Max.working length of taper attachment :750mm
Width of bed :550mm
Hole through spindle :205mm
Range of spindle speed change: 18-440rpm
                2 range change speed ,
                in range speed change averable 2  ,
                2 pcs Chuck mm Φ520
                4 jaws chuck
Range and number of metric thread :1-15mm   21 kinds
Range and number of  t.p.i Inch thread :  1-14tpi   26kinds
Work precision mm : 0.01
Cylinder degree: 0.030/300
Flatness: 0.025/Φ300
Surface roughness (steel piece ): Ra1.6  surface roughness
Diameter of tailstock spindle : Φ100mm
Tailstock travel :250mm
Spindle taper: M5
Power of main motor:  11kW
Length×Width×Height :3300×1450×1500mm
Net weight : 4.5T
