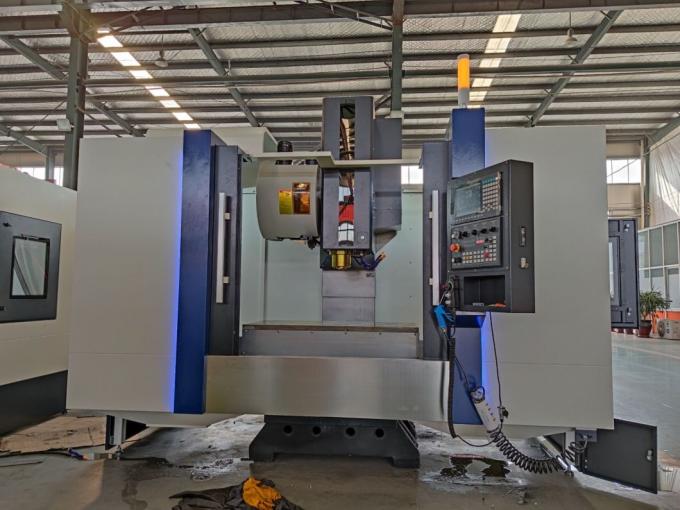

Product Details:
|
Model NO.: | VMC550L | Controlling Mode: | CNC |
---|---|---|---|
Automatic Grade: | Automatic | Precision: | High Precision |
Condition: | New | Voltage: | 380V |
Power: | 5500W | Spindle Nose To Table (mm): | 100-470 |
Spindle Center To Column (mm): | 380 | Transport Package: | Package |
Specification: | CE | Trademark: | G&G |
Origin: | China | HS Code: | 845710110 |
Supply Ability: | 100sets/Month | Warranty: | 1year |
Type: | Worktable Milling Machine | Object: | Hardware |
Structure: | Bed Type | Milling Cutter Type: | Three Blade Milling Cutter |
Milling Cutter Structure: | Indexable Type | ||
High Light: | Vmc550L CNC Metal Lathe,GS Cnc Vertical Milling Machine,Vmc550L Cnc Vertical Milling Machine |
NO. | ITEM | SPECIFICATION | |||
1 | Table size L(mm)× W(mm) | 800× 320 | |||
2 | T slot QTY /width/interval distance(mm) | 3-14-100 | |||
3 | Maximum load(KG) | 300 | |||
4 | X travel (mm) | 550 | |||
5 | Y travel (mm) | 340 | |||
6 | Z travel (mm) | 460 | |||
7 | Spindle nose to table (mm) | 100-470 | |||
8 | Spindle center to column (mm) | 380 | |||
9 | Spindle taper | BT40 | |||
10 | Max. spindle speed (Rpm) | 8000 | |||
11 | Main motor kW | 5.5 | |||
12 | Feed motor | X torqueN. M | 5 | ||
Y torqueN. M | 6 | ||||
ZtorqueN. M | 6 | ||||
Max. install size | 5.5 | ||||
13 | Rapid moving speed (m/min. | 12/12/10 | |||
14 | Cutting speed mm/min | 1-5000 | |||
15 | Ball screw diametermm/pitch mm | 32/10 | |||
17 | Accuracy | Positioning accuracy (mm) | 0.016 | ||
Repeatability accuracy (mm) | 0.008 | ||||
18 | Tool changer | Funnel type (optional ) BT40 | 10 or 16 | ||
19 | Air pressure Mpa | 0.6 | |||
20 | Machine weight (kg) | Frame | 2000 | ||
Complete machine | 2500 | ||||
21 | Machine overall size: | Frame | 1600x1860x2100 | ||
L(mm)× W(mm)× H(mm) | Complete machine | 2200x1600x2300 |
