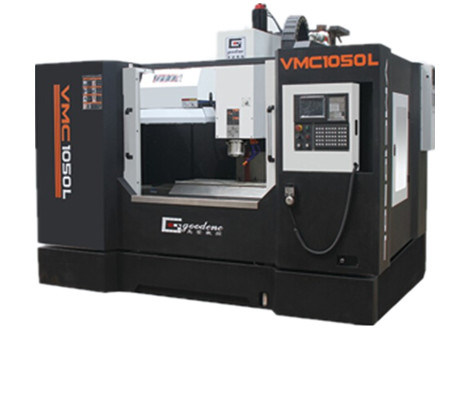

Product Details:
|
| Model NO.: | VMC1050L | Performance Classification: | Economical CNC Machine Tools |
|---|---|---|---|
| Condition: | New | Spindle Nose To Table(Mm): | 150-700 |
| Spindle Center To Column(Mm): | 530 | Table Dimension(Mm): | 1100*450 |
| Max .Load(Kg): | 500 | T-Slot Width(Mm): | 18 |
| Transport Package: | Carton | Specification: | CE ISO |
| Trademark: | G&G | Origin: | China |
| HS Code: | 8458110010 | Supply Ability: | 200 Sets/Month |
| Application: | Wood | Process Usage: | CNC Non-Conventional Machine Tools |
| Movement Method: | Point To Point Control | Control Method: | Closed-Loop Control |
| Numerical Control: | NC | Processing Precision: | ±0.008 |
| Highlight: | Vmc1050L CNC Metal Lathe,Vmc1050L CNC Milling Machine,Economical CNC Milling Machine |
||
| specifications | VMC1050 |
| Travel X(mm) | 1000 |
| Y | 500 |
| Z | 550 |
| Spindle nose to table(mm) | 150-700 |
| Spindle center to column(mm) | 530 |
| Table dimension(mm) | 1100*450 |
| Max .load(kg) | 500 |
| T-slot width(mm) | 18 |
| T-slot number | 3 |
| Taper | Bt40 |
| Spindle speed(r.p.m) | 8000 |
| Main motor(kw) | 7.5 |
| X(Nw) | 15 |
| Y(Nw) | 15 |
| Z(Nw) | 15 |
| Control system | KND |
| X Y Rapid feed(mm) | 20000 |
| Z Rapid feed (mm) | 15000 |
| Cutting speed(mm/min) | 1-10000 |
| Positioning accuracy(mm) | ±0.008 |
| Repeatability accuracy(mm) | ±0.003/300 |
| Air pressure (kg/cm²) | ≥6 |
| Tool changer | 16 |
| Machine weight(t) | 6 |
| Machine size (mm) | 3100*2400*2700 |
