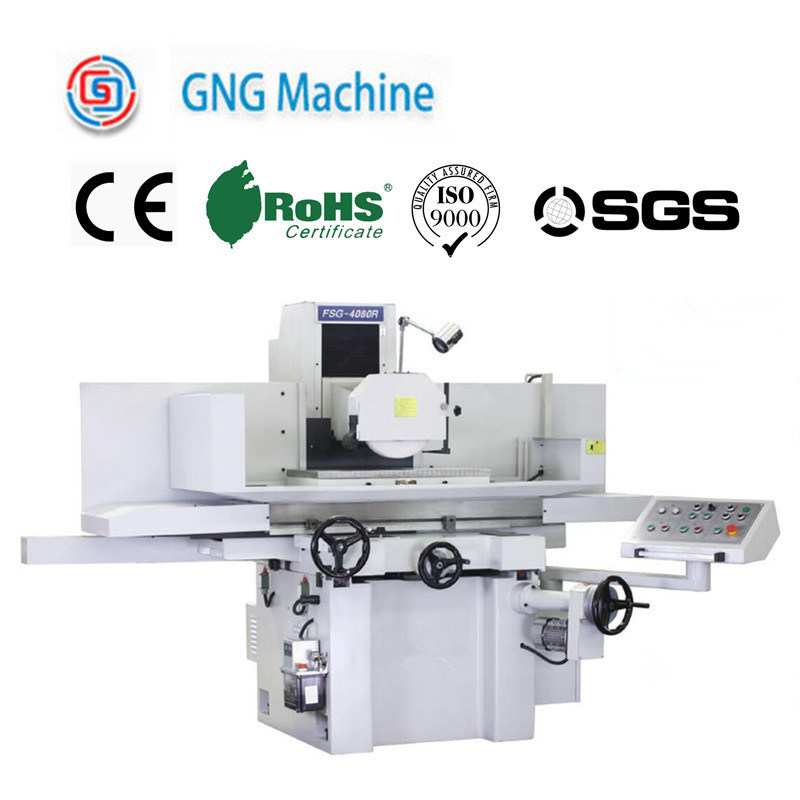

Product Details:
|
| Model NO.: | FSG-4080 | Working Style: | Shaking |
|---|---|---|---|
| Disc Diameter: | 150mm | Variable Speed: | With Variable Speed |
| Table Size(mm): | 406X613 | Magnetic Chuck Size(mm): | 400X800 |
| Table Cross Travel(mm): | 450 | Table Longitudinal Travel(mm): | 910 |
| Max. Loading Capacity(Kg): | 500 | Transport Package: | Wooden Package |
| Specification: | CE | Trademark: | GNG MACHINE |
| Origin: | China Weihai | HS Code: | 8460219000 |
| Supply Ability: | 100sets/Month | Type: | Bench Grinder |
| Power Source: | Electricity | Object: | Milling Cutter |
| Application: | Construction | Disc(Wheel) Type: | Grinding Disc |
| Material: | Steel | ||
| High Light: | 150mm Surface Grinding Machine,150mm Bench Grinder Machine,Saddle Bench Grinder Machine |
||

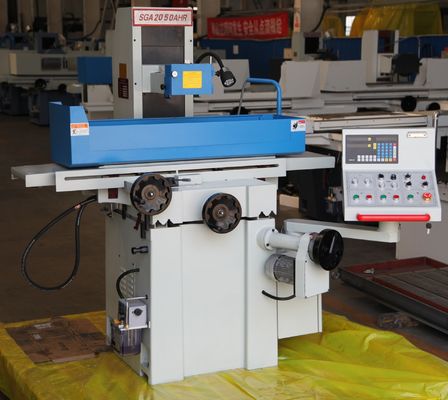

| Item/Model | Unit | SG-2050AH SG-2050AHR SG-2050AHD | ||
| table size(WxL) | mm | 200x400 | ||
| max. longitudinal travel | mm | 510 | ||
| max. cross travel | mm | 238 | ||
| max. distance from spindle center to table | mm | 450 | ||
| electro magnetic chuck size | mm | 200x460 | ||
| speed of table longitudinal movement | m/min | 7-23 | ||
| table transverse movement | auto feed | mm/min | 0.1-8 | |
| rapid speed | mm/min | 990 | ||
| feed of handwheel | mm/div | 0.02 | ||
| wheelhead vertical movement | auto feed | mm | ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) | |
| rapid speed | mm/min | ---(H/AH model) / 460 (for AHR model) | ||
| feed of handwheel | mm/div | 0.005 | ||
| grinding wheel | speed | rpm | 2850(50Hz),3450(60Hz) | |
| eize(ODxWxID) | mm | 200x20x31.75 | ||
| spindle motor | kw | 1.5 | ||
| hydranlic motor | kw | 0.75 | ||
| cooling pump motor | kw | 0.04 | ||
| elecating motor | kw | ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor) | ||
| cross feed motor | kw | 1.04 | ||
| max.loading capacity of table(include chuck) | kg | 120 | ||
| total rated power | kw | 3 | ||
