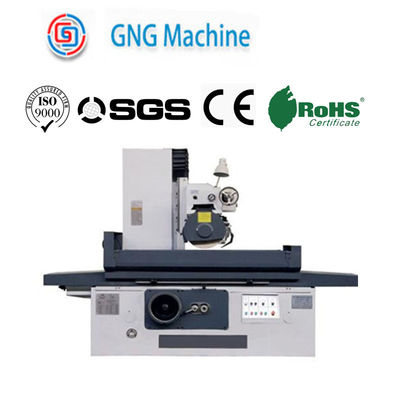

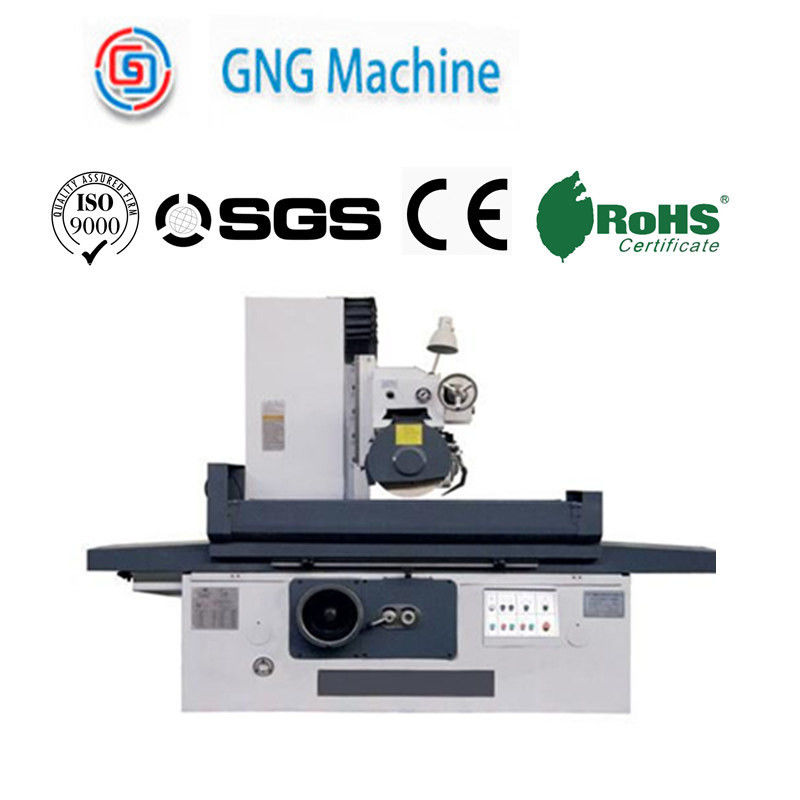

Electric Metal Surface Precision Surface Grinder 230mm For Construction

I'm Online Chat Now

Electric Metal Surface Precision Surface Grinder 230mm For Construction

Electric Metal Surface Precision Surface Grinder 230mm For Construction
Electric Metal Surface Precision Surface Grinder 230mm For Construction Electric Metal Surface Precision Surface Grinder 230mm For Construction Electric Metal Surface Precision Surface Grinder 230mm For Construction Electric Metal Surface Precision Surface Grinder 230mm For Construction Electric Metal Surface Precision Surface Grinder 230mm For Construction Electric Metal Surface Precision Surface Grinder 230mm For Construction

Large Image :  Electric Metal Surface Precision Surface Grinder 230mm For Construction

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-50500
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

Electric Metal Surface Precision Surface Grinder 230mm For Construction

Description
Model NO.: M7140Ax2200 Working Style: High-speed Universal
Disc Diameter: 230mm Variable Speed: With Variable Speed
Table Size(Wxl): 400X1600(Mm) Max. Machining Dimension(Wxl): 400X1600(Mm)
Longitudinal Moving Speed Of Worktable: 5-25m/Min T-Slot Number X W: 3X18(Mm)
Transport Package: Wood Case Or Carton Specification: CE ISO
Trademark: GNG MACHINE Origin: China
HS Code: 84595900 Type: Disc Grinder
Power Source: Electricity Object: Drilling Bit
Application: Construction Disc(Wheel) Type: Grinding Disc
Material: Metal
High Light:

Precision Surface Grinder 230mm

,

Construction Precision Surface Grinder

Electric Metal Surface Cylindrical Grinding Machine

Company Info.

Basic Info.

Model NO.
M7140Ax2200
Working Style
High-speed universal
Disc Diameter
230mm
Variable Speed
With Variable Speed
Table Size(Wxl)
400X1600(Mm)
Max. Machining Dimension(Wxl)
400X1600(Mm)
Longitudinal Moving Speed of Worktable
5-25m/Min
T-Slot Number X W
3X18(Mm)
Transport Package
Wood Case or Carton
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84595900
Production Capacity
500 Sets/Month

Product Description

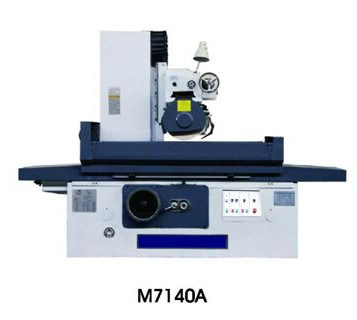

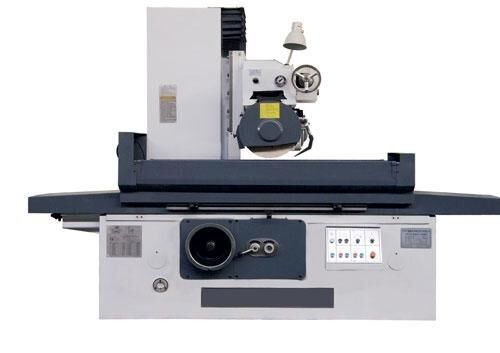

M71 wheel head moving surface grinder M7140Ax2200
table size(WxL) mm 400x2200
max. machining dimension(WxL) mm 400x2200
max. distance between spindle center line and worktable surface mm 600
longitudinal moving speed of worktable m/min 5-25
T-slot number x W mm 3x18
wheel head cross moving continuous feed speed m/min 0.5-4.5
intermittent feed speed mm/t 3-30
hand wheel feed mm/gra 0.02
wheel head vertical moving rapid speed mm/min 400
feed of handwheel mm/gra 0.01
wheel head motor power kw 7.5
rotation speed rpm 1440
total power kw 13.5
max. loading capacity of worktable with chuck kg 1380
wheel size (ODxWxID):400x40x127(mm)
machine dimension(LxWxH):674x182x223(cm)
package dimensions(LxWxH):680x220x233(cm)
machine weight:8.5T
Electric Metal Surface Cylindrical Grinding Machine
Electric Metal Surface Cylindrical Grinding Machine
Electric Metal Surface Cylindrical Grinding Machine
Electric Metal Surface Cylindrical Grinding Machine
Electric Metal Surface Cylindrical Grinding Machine
Electric Metal Surface Cylindrical Grinding Machine
