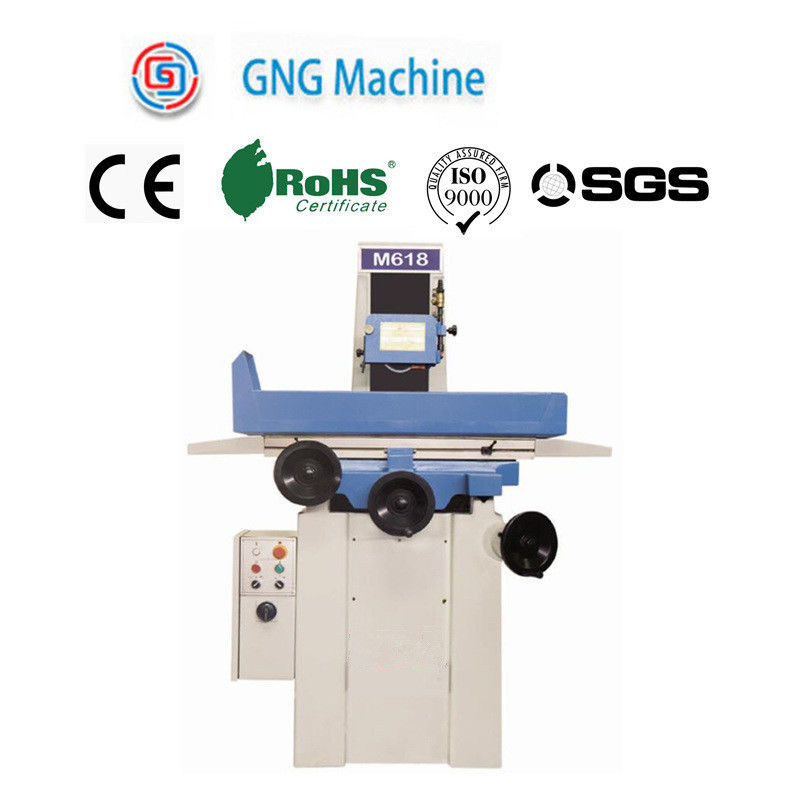

Product Details:
|

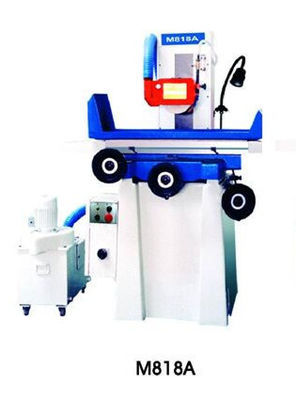

| Model NO.: | M618/M818 | Working Style: | Shaking |
|---|---|---|---|
| Disc Diameter: | 150mm | Variable Speed: | With Variable Speed |
| Table Size(mm): | 150X450 | Max.Grinding Size Wxl: | 160X470 |
| Magnetic Chuck Size(Optional Equipment): | 150X400 | Stroke Of Table Cross Motion (mm): | 185 |
| Stroke Of Table Left And Right Motion: | 500 | Transport Package: | Wooden Package |
| Specification: | CE | Trademark: | GNG MACHINE |
| Origin: | China Weihai | HS Code: | 8460219000 |
| Supply Ability: | 100sets/Month | Type: | Bench Grinder |
| Power Source: | Electricity | Object: | Milling Cutter |
| Application: | Construction | Disc(Wheel) Type: | Grinding Disc |
| Material: | Steel | ||
| High Light: | Milling Cutter 6 Inch Bench Grinder,Working Style 6 Inch Bench Grinder,Milling Cutter Table Grinding Machine |
||

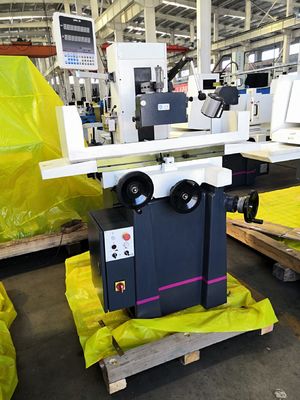

| M SG manual surface grinder | |||

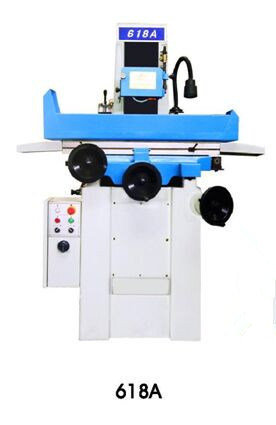

| Item/Model | unit | M618A | |
| max. width to be ground | mm | 165 | |
| max. length to be ground | mm | 470 | |
| max. height to be ground | mm | 350 | |
| table size | mm | 155x460 | |
| permanent magnetic chuck size(optional) | mm | 150x400 | |
| max.longitudinal travel | mm | 500 | |
| max.cross travel | mm | 185 | |
| max.distance from spindle center to table surface | mm | 450 | |
| feed of vertical handwheel | per rev. | mm | 1 |
| per div. | mm | 0.005 | |
| grinding wheel size(ODxWxID) | mm | 200x13x31.75 | |
| spindle speed | r/min | 3450(60Hz),2850(50Hz) | |
| power of spindle head | kw | standard 1.5(build in spindle:1.1KW) | |
| max.load capacity (include permanent magnetic chuck) | kg | 97 | |
| machine weight | kg | 790 | |
| machine appearance size(LxWxH) | mm | 1330x1090x1680 | |
| package dimension(LxWxH) | mm | 1153x1373x1920 | |
| package size(dismantle table(LxWxH) | mm | 1340x1120x1930 | |
