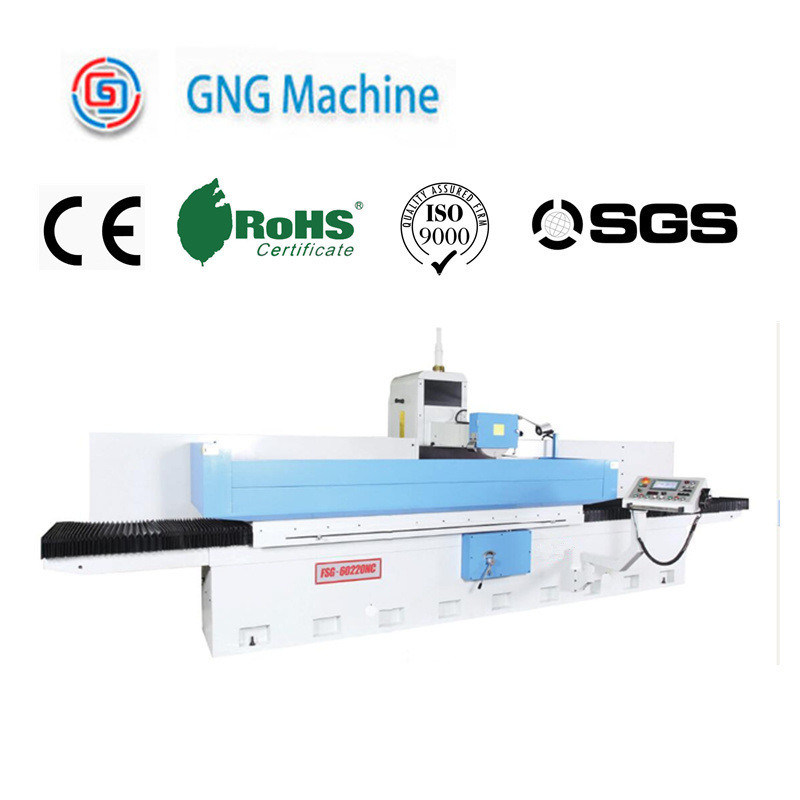

Table size: 600x1250 mm, three models to select: M,R,A.
Please reply us your needing of optional accesories in the inquiry, thank you.
Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 610
Max. Grinding Length: 1600
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SGT60160SD
Voltage: 380V
Power(W): 17000
Dimension(L*W*H): 2000X2100X2175mm
Weight: 3300kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
Worktable sizeL610X1600
Gringding height: 600/790/850/1050
Spindle power: 5.5KW
| SG SGA plc cnc column moving surface grinder | | |
| Item/Model | Unit | SG60160SD |
| SG60160CNC |
| table size(WxL) | mm | 610X1600 |
| max. grinding(WxL) | mm | 610X1600 |
| max. distance between spindle center line and worktable surface | mm | 820/1050(925) |
| magnetic chuck size (optional equipment) | mm | 600x800x2 |
| speed of table longitudinal movement | m/min | 5-25 |
| wheel head cross moving | auto feed | mm/t | 1-30 |
| rapid speed | m/min | 0.05-2 |
| hand wheel feed | mm/div | 0.005 |
| wheel head vertical moving | auto feed | mm/t | 0.005-0.05 |
| rapid speed | mm/min | 0.05-2 |
| feed of handwheel | mm/div | 0.005 |
| wheel | speed | rpm | 960(1450) |
| size(ODxWxID) | mm | 500x75x305(450x75x203) |
| motor of spindle | kw | 18.5 |
| max. loading capacity of worktable with chuck | kg | 1230 |
| total rated power | kw | 28.5 |
| height of machine | mm | 2720/2920 |
| floor space(LxW) | mm | 4700x3000 |
| gross weight | kg | 8500 |
