500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder

500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder
500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder 500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder 500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder 500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder 500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder 500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder

Large Image :  500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-50500
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

500mm Cnc Cylindrical Grinder Excellent Stability Cnc Cutter Grinder

Description
Model NO.: SGA-2550AH/ SGA-2550AHR /SGA-2550AHD Working Style: High-speed Universal
Disc Diameter: 150mm Variable Speed: With Variable Speed
Table Size(Wxl): 250X500(Mm) Max. Longitudinal Travel: 560mm
Max. Cross Travel: 275mm Max. Distance From Spindle Center To Tab: 450mm
Electro Magnetic Chuck Size: 250X500mm Transport Package: Wood Case
Specification: CE ISO Trademark: GNG MACHINE
Origin: China HS Code: 84595900
Type: Disc Grinder Power Source: Electricity
Object: Milling Cutter Application: Construction
Disc(Wheel) Type: Grinding Disc Material: Metal
High Light:

500mm Cnc Cylindrical Grinder

,

500mm Cnc Cutter Grinder

,

Excellent Stability Cnc Cutter Grinder

Electric High Precision Saddle Moving Surface Grinder

Company Info.

Basic Info.

Model NO.
SGA-2550AH/ SGA-2550AHR /SGA-2550AHD
Working Style
High-speed universal
Disc Diameter
150mm
Variable Speed
With Variable Speed
Table Size(Wxl)
250X500(Mm)
Max. Longitudinal Travel
560mm
Max. Cross Travel
275mm
Max. Distance From Spindle Center to Tab
450mm
Electro Magnetic Chuck Size
250X500mm
Transport Package
Wood Case
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84595900
Production Capacity
100sets/Month

Product Description

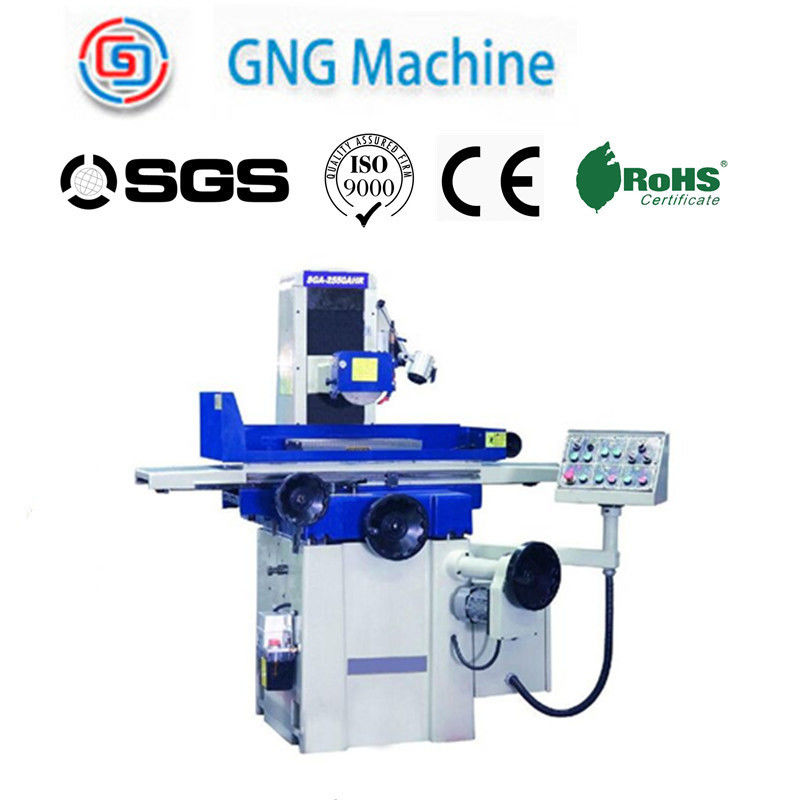

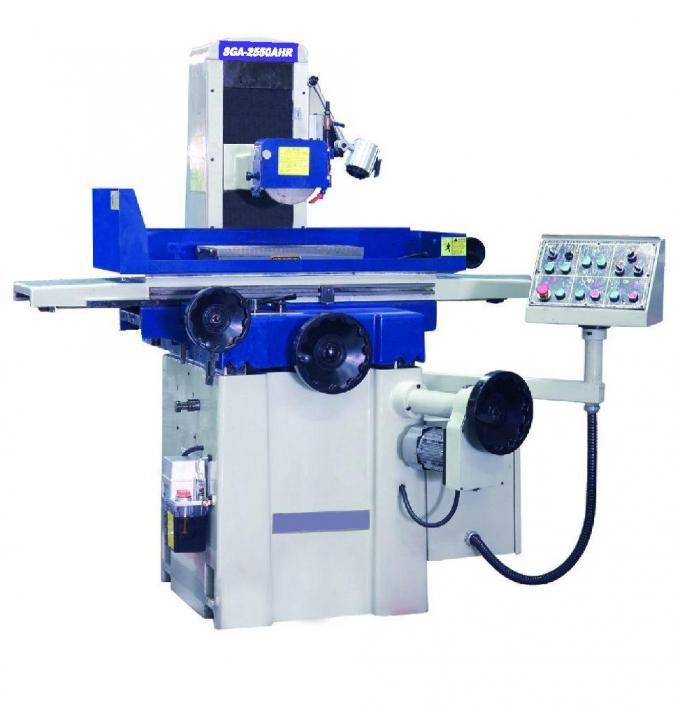

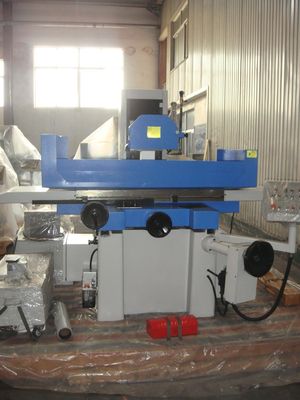

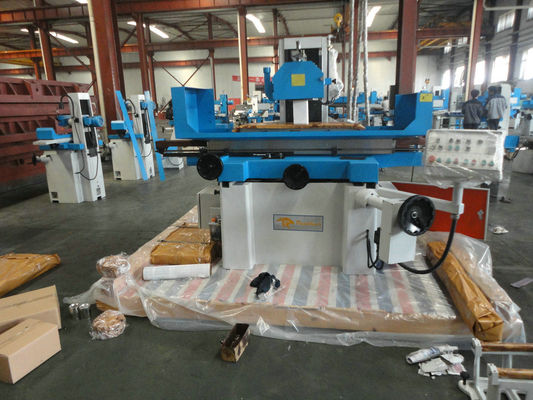

SG SGA saddle moving surface grinder SGA-2550AH  SGA-2550AHR  SGA-2550AHD
Item/Model   Unit SGA-2550AH  SGA-2550AHR  SGA-2550AHD
table size(WxL) mm 250x500
max. longitudinal travel   mm 560
max. cross travel mm 275
max. distance from spindle center to table mm 450
electro magnetic chuck size mm 250x500
speed of table longitudinal movement m/min #REF!
table transverse movement auto feed mm/min 0.1-8
rapid speed mm/min 990
feed of handwheel mm/div 0.02
wheelhead vertical movement auto feed mm ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
rapid speed mm/min ---(H/AH model) / 460 (for AHR model)
feed of handwheel mm/div 0.005
grinding wheel speed rpm 2850(50Hz),3450(60Hz)
eize(ODxWxID) mm 200x20x31.75
spindle motor kw 2.2
hydranlic motor kw 0.75
cooling pump motor kw 0.04
elecating motor kw ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)
cross feed motor kw 1.04
max.loading capacity of table(include chuck) kg 180
total rated power kw 3.7
height of machine:1675mm
floor space(LxW):2300x1600(mm)
Gross weight:1800kg
package dimensions(LxWxH):2000x2100x2175(mm)
Electric High Precision Saddle Moving Surface Grinder
Electric High Precision Saddle Moving Surface Grinder
Electric High Precision Saddle Moving Surface Grinder
Electric High Precision Saddle Moving Surface Grinder
Electric High Precision Saddle Moving Surface Grinder
Electric High Precision Saddle Moving Surface Grinder
