Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-50500
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

Metal Processing Saddle Moving Surface Grinder Machine 180mm

Description
Model NO.: SG-2050AH/ AHR / AHD Working Style: High-speed Universal
Disc Diameter: 180mm Variable Speed: With Variable Speed
Table Size(Wxl): 200X400(Mm) Max. Longitudinal Travel: 510mm
Max. Cross Travel: 238mm Max. Distance From Spindle Center To Tab: 450mm
Electro Magnetic Chuck Size: 200X460(Mm) Transport Package: Wood Case
Specification: CE ISO Trademark: GNG MACHINE
Origin: China HS Code: 84595900
Type: Disc Grinder Power Source: Electricity
Object: Milling Cutter Application: Construction
Disc(Wheel) Type: Grinding Disc Material: Metal
High Light:

180mm Surface Grinder Machine

,

180mm Saddle Surface Grinder

,

Metal Processing Surface Grinder Machine

Metal Processing Saddle Moving Surface Grinder Machine

Company Info.

Basic Info.

Model NO.
SG-2050AH/ AHR / AHD
Working Style
High-speed universal
Disc Diameter
180mm
Variable Speed
With Variable Speed
Table Size(Wxl)
200X400(Mm)
Max. Longitudinal Travel
510mm
Max. Cross Travel
238mm
Max. Distance From Spindle Center to Tab
450mm
Electro Magnetic Chuck Size
200X460(Mm)
Transport Package
Wood Case
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84595900
Production Capacity
100 Sets/Month

Product Description

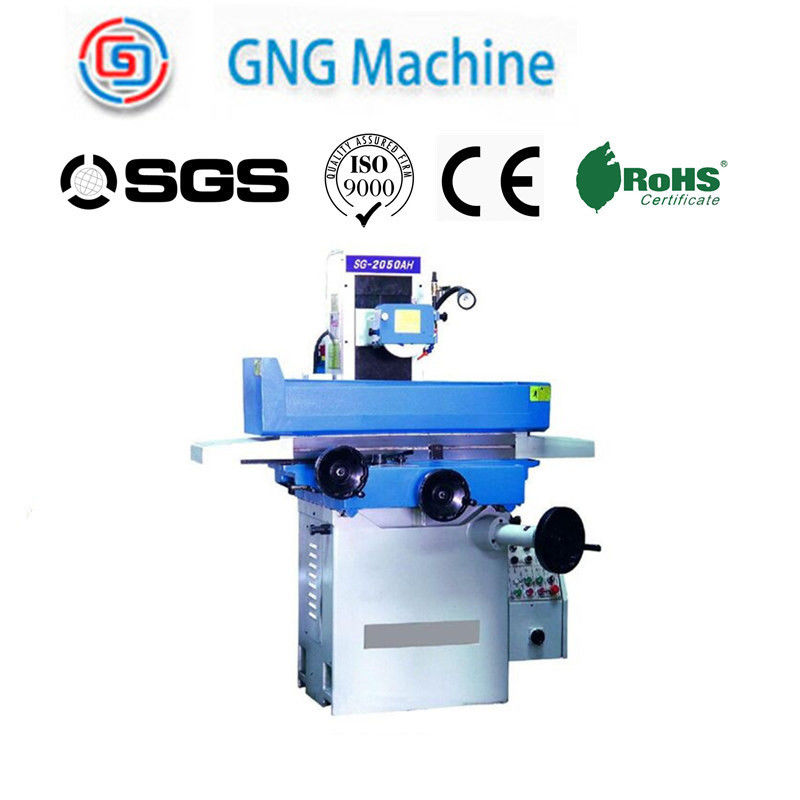

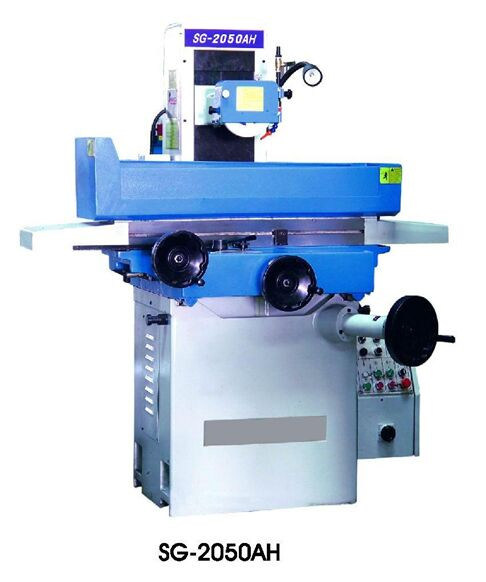

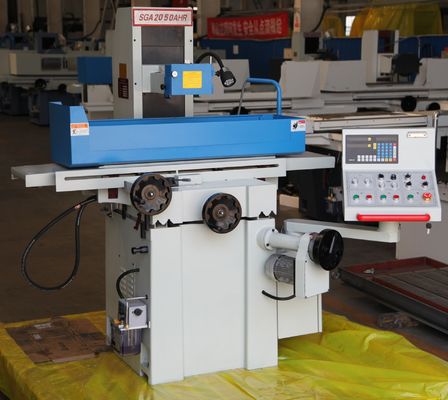

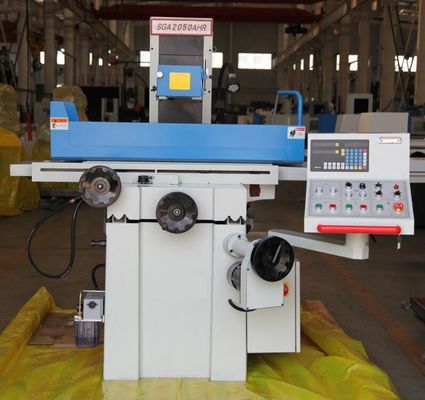

SG SGA saddle moving surface grinder:SG-2050AH / SG-2050AHR / SG-2050AHD
Item/Model   Unit SG-2050AH  SG-2050AHR  SG-2050AHD
table size(WxL) mm 200x400
max. longitudinal travel   mm 510
max. cross travel mm 238
max. distance from spindle center to table mm 450
electro magnetic chuck size mm 200x460
speed of table longitudinal movement m/min 7-23
table transverse movement auto feed mm/min 0.1-8
rapid speed mm/min 990
feed of handwheel mm/div 0.02
wheelhead vertical movement auto feed mm ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
rapid speed mm/min ---(H/AH model) / 460 (for AHR model)
feed of handwheel mm/div 0.005
grinding wheel speed rpm 2850(50Hz),3450(60Hz)
eize(ODxWxID) mm 200x20x31.75
spindle motor kw 1.5
hydranlic motor kw 0.75
cooling pump motor kw 0.04
elecating motor kw ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)
cross feed motor kw 1.04
max.loading capacity of table(include chuck) kg 120
total rated power kw 3
height of machine:1675mm
floor space(LxW):2050x1400mm
Gross weight:1600kg
package dimensions(LxWxH):1900x1720x2175(mm)
