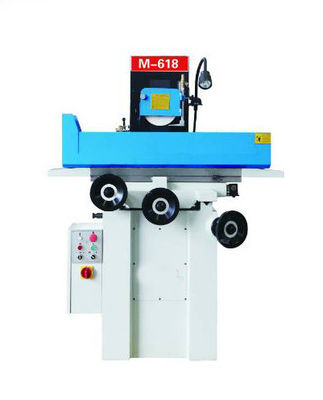

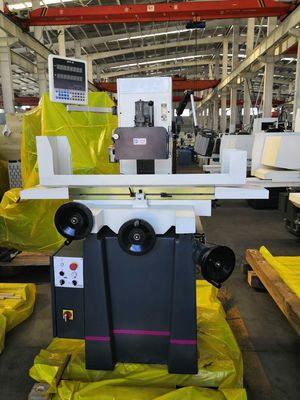

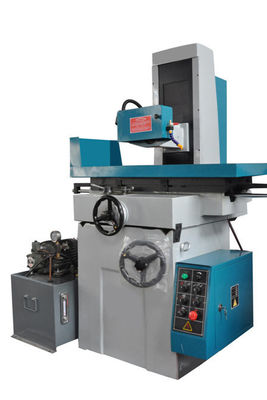

MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine

I'm Online Chat Now

MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine

MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine
MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine

Large Image :  MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-50500
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

MD618 Cnc Universal Grinder Reliable Structure Universal Grinder Machine

Description
Model NO.: MD618 Precision: Precision
Distance From Table Surface To Spind: 335mm Net Weight: 750kg
Gross Weight: 800kg The Total Input Power: 150W
Number Of T -Slot T (×): 1×12mm Transport Package: Carton Or Wood Case
Specification: CE ISO Trademark: G&G
Origin: China HS Code: 84571010
Type: Surface Grinding Machine Processing Object: Gear
Abrasives: Grinding Wheel Controlling Mode: Artificial
Automatic Grade: Automatic Cylindrical Grinder Type: Universal Cylindrical Grinder
High Light:

MD618 Cnc Universal Grinder

,

MD618 Universal Grinder Machine

,

Reliable Structure Cnc Universal Grinder

MD618 High Quality Automatic Precision Surface Milling Grinder Machine

Company Info.

Basic Info.

Model NO.
MD618
Precision
Precision
Certification
CE, ISO 9001
Distance From Table Surface to Spind
335mm
Net Weight
750kg
Gross Weight
800kg
The Total Input Power
150W
Number of T -Slot T (×)
1×12mm
Transport Package
Carton or Wood Case
Specification
CE ISO
Trademark
G&G
Origin
China
HS Code
84571010
Production Capacity
1000 Sets/Month

Product Description

MD618 High Quality Automatic Precision Surface Milling Grinder Machine
Characteristics of machine tools:
Based on manual surface grinder, it covert the longitudinal and vertical machine to fully automatic The bidirectional friction electronic clutch, simple and reliable structure, clutch reversing process has no impact, no noise, safe commutation 5000000 times; the electric control part with electronic switching frequency switching, The service life 10 times longer than the relay control, simple operation, sensitive, infinitely variable; large output torque, low noise, Safe and reliable.  Power supply use a number of mechanical and electrical protection function which is safe voltage, Energy saving, power saving, power consumption per class (calculated according to 8 hours) is only 0.6.When the manual grinding is working,Before and after the workbench's movement, in and out, around the reversing are automatic operation, greatly improving the production's efficiency and the surface finish, suitable scope that from the original single, small  batch to mass batch.
Model       MD618
Bench   Max.workpiece  to  be Ground (L×W×H)   (×) mm 460×180
Maximum travel of table (L × W)         (×) mm 500×190
Table maximum cutting area (L × W)     (×) mm 500×190
Number  of  T -Slot  T (×) mm 1×12
The grinding head      Distance  From  Table Surface  To  Spindle  Center                                                           mm 335
Wheel  Size(dia×width×bore)                                                         (WA46K5V) (××) mm ø200×20×31.75
Spindle speeds     (50HZ) r/m 2850
The amount of feed  Table longitudinal (left and right) speed (stepless)                                          ()() /min 3--23
Table horizontal (before and after) the amount of feed                      () Continuous (variable speed)                      () m/min 150
Intermittent (stepless)                   () m/ 0-5
The handwheel rotates  mm 2.5
Hand wheel each grid   mm 0.02
Vertical (up and down) feed wheel feed                                        () The handwheel rotates  mm 1.25
Hand wheel each grid   mm 0.01
Reversing feeder        The total input power  W 150
X- feeder output speed.   X- /min 0--225
X- feeder size   X- m 280×130×120
Y- feeder output speed.   Y- /min 0--120
Y- feeder size M    Y- m 280×130×120
Motor power          Spindle motor kw 1.1
Cooling motor kw 0.4
Working precision               The machined surface of the base of parallelism                        m 300/0.005
Surface  Roughness  μm Ra0.32
Weight of machine                       Net   kg 750
Cross kg 800
Packing  Size (L×W×H)      (××) m 1060×1170×1870

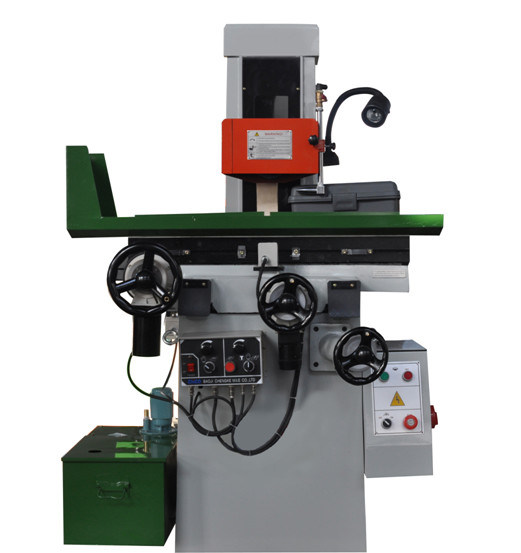

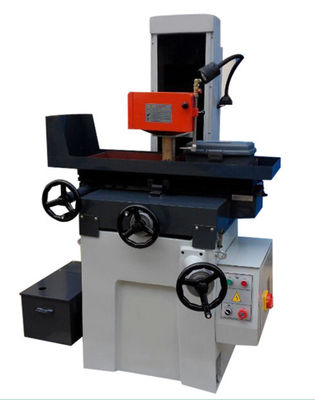

MD618 High Quality Automatic Precision Surface Milling Grinder Machine
MD618 High Quality Automatic Precision Surface Milling Grinder Machine
MD618 High Quality Automatic Precision Surface Milling Grinder Machine
MD618 High Quality Automatic Precision Surface Milling Grinder Machine
MD618 High Quality Automatic Precision Surface Milling Grinder Machine
