Contour Control Surface Grinding Machine Universal Cylindrical Grinder Machine

Description
Model NO.: MA1420 X 500/750MM Performance Classification: Cylindrical Gringding Machine
Condition: New Max. Grinding Diameter: 125mm
Max. Grinding Length: 550mm Voltage: 380V
Power(W): 5090W Dimension(L*W*H): 250X160X180cm
Weight: 280kgs Max Gring Length: 550mm/750mm
Max Gring Bore Depth: 125mm External Grinding Dia. Mm: 8-200mm
Internal Grind Ida. Mm: 13-80mm Transport Package: Package
Specification: CE Trademark: G&G
Origin: China HS Code: 8460211900
Application: Metal Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Contour Control Control Method: Electric Switch By Hands.
Numerical Control: NC Processing Precision: +- 0.025
High Light:

Contour Control Surface Grinding Machine

,

Contour Control Cylindrical Grinder Machine

,

Universal Cylindrical Grinder Machine

Universal Cylindrical Grinder Machine

Company Info.

Basic Info.

Model NO.
MA1420 X 500/750MM
Performance Classification
Cylindrical Gringding Machine
Certification
ISO 9001
Condition
New
Max. Grinding Diameter
125mm
Max. Grinding Length
550mm
Voltage
380V
Power(W)
5090W
Dimension(L*W*H)
250X160X180cm
Weight
280kgs
Max Gring Length
550mm/750mm
Max Gring Bore Depth
125mm
External Grinding Dia. Mm
8-200mm
Internal Grind Ida. Mm
13-80mm
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China
HS Code
8460211900
Production Capacity
100sets/Month

Product Description

FOB Price: US $ 16, 000 - 17, 000 / Set
Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T

Quick Details
Condition: New
Type: Cylindrical Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 125mm
Max. Grinding Length: 550mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: MA1420/H
Voltage: 380V
Power(W): 5090W
Dimension(L*W*H): 250X160X180cm
Weight: 280kgs
Certification: CE
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Delivery Detail: 30-45days
Universal Cylindrical Grinder Machine
Specifications

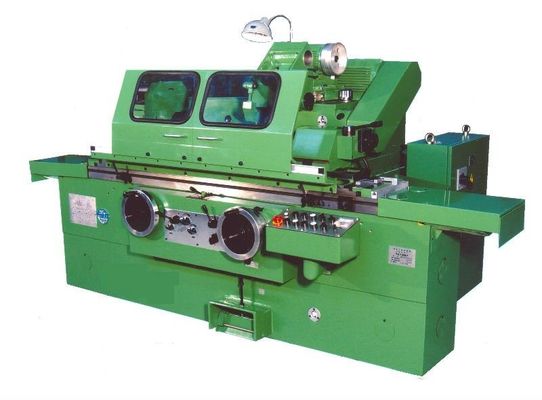

Universal cylindrical grinder. This machine is suitable for grinding external and internal cylinder and cone, and end face

SPECIFICATION Unit M1420X550 M1420X750
External grinding dia mm Φ 8-200mm
Internal grinding dia mm Φ 13-80mm
Max grinding length mm 550mm 750mm
Max grinding bore depth mm 125mm
Swivel range of the table -5o-+9o -3o-+9o
Max peripheral speed of
Grinding wheel m/sec 38m/sec
External wheel size Φ 400X40XΦ 203
Spindle of wheel diameter mm Φ 60mm
Internal wheel spindle
Rotating speed r. P. M 20000r. P. M and 18000r. P. M
Workhead and tailstock
Center (Morse) 4≠
Max workpiece weight kg 60kg
Machine motor power AC380V 5.09kw
Overall dimensions mm 2500X1600X1800mm 2700X1600X1800mm
Weight of machine kg 280kg 3300kg

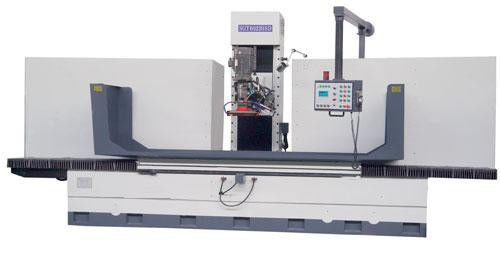

Item Content
YM-7163X12A

YM-7163X16B

YM-7163X20B

YM-7163X30B

YM-7163X40B

Working table size(W× L)


630× 1250


630× 1600


630× 2000


630× 3000


630× 4000

Max. grinding size no chuck(L× W× H)


1250× 630× 550


1600× 630× 600


2000× 630× 600


3000× 630× 600


4000× 630× 600

Max. table longitudinal travel

1350

1700

2100

3100

4100

Max. cross travel of grinding head

680

700

700

700

700

Max. vertical travel of grinding head

550

600

600

600

600

Feed on vertical feed handwheel

Per grad.

0.005

0.005

0.005

0.005

0.005

Per rev.

0.5

0.5

0.5

0.5

0.5

Wheel size

400× 50× 203

450× 75× 203

450× 75× 203

450× 75× 203

450× 75× 203

The rotating speed of grinding wheel

1440

1440

1440

1440

1440

Motor total power

15.2

19.5

24

24

28

Wheel spindle motou

9

11

11

11

11

Oil pump motor

5.5

7.5

11

11

15

Parallesism of machining sueface to reference surface

0.008/300

0.008/300

0.008/300

0.008/300

0.008/300

Surface roughness

Ra: 0.63

Ra: 0.63

Ra: 0.63

Ra: 0.63

Ra: 0.63

N. /G. weight

4700/5500

7000/8000

8500/10000

11500/13000

15000/17000

Packing dimensions(L× W× H)

282× 210× 275

500× 210× 275

600× 210× 275

800× 210× 275

1100× 210× 275

Confguration of hydraulic station











Note


To heighten column design according to customer needs

Universal Cylindrical Grinder Machine
Universal Cylindrical Grinder Machine
Universal Cylindrical Grinder Machine
