Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-50500
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

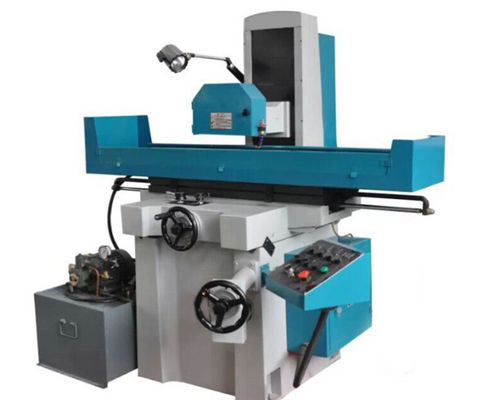

Saddle Hydraulic Surface Grinder Shaking With Variable Speed

Description
Model NO.: FSG-3063 Working Style: Shaking
Disc Diameter: 150mm Variable Speed: With Variable Speed
Table Size(mm): 306X635 Magnetic Chuck Size(mm): 300X600
Table Cross Travel(mm): 340 Table Longitudinal Travel(mm): 765
Max. Loading Capacity(Kg): 270 Transport Package: Wooden Package
Specification: CE Trademark: GNG MACHINE
Origin: China Weihai HS Code: 8460219000
Type: Bench Grinder Power Source: Electricity
Object: Milling Cutter Application: Construction
Disc(Wheel) Type: Grinding Disc Material: Steel
High Light:

Saddle Hydraulic Surface Grinder

,

Hydraulic Surface Grinder Shaking

Saddle Moving Surface Grinder Fsg-3063

Company Info.

Basic Info.

Model NO.
FSG-3063
Working Style
Shaking
Disc Diameter
150mm
Variable Speed
With Variable Speed
Table Size(mm)
306X635
Magnetic Chuck Size(mm)
300X600
Table Cross Travel(mm)
340
Table Longitudinal Travel(mm)
765
Max. Loading Capacity(Kg)
270
Transport Package
Wooden Package
Specification
CE
Trademark
GNG MACHINE
Origin
China Weihai
HS Code
8460219000
Production Capacity
100sets/Month

Product Description

305*635mm, three models to select: M,R,A.

Please reply us your needing of optional accesories in the inquiry, thank you.

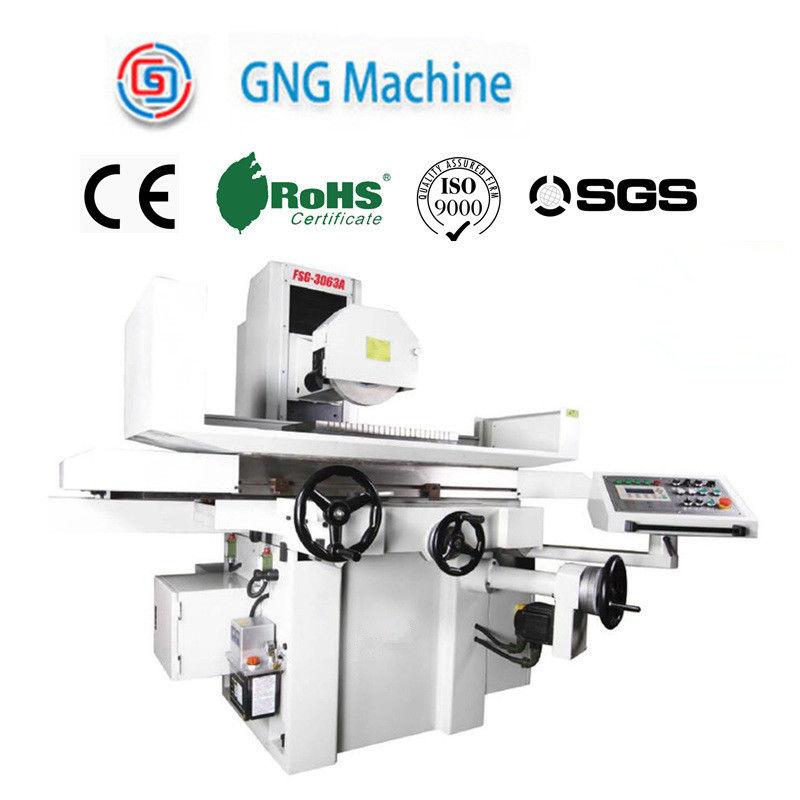

Saddle Moving Surface Grinder Fsg-3063

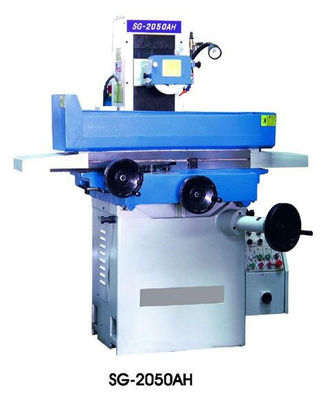

SG SGA saddle moving surface grinder:SG-2050AH / SG-2050AHR / SG-2050AHD
Item/Model   Unit SG-2050AH  SG-2050AHR  SG-2050AHD
table size(WxL) mm 200x400
max. longitudinal travel   mm 510
max. cross travel mm 238
max. distance from spindle center to table mm 450
electro magnetic chuck size mm 200x460
speed of table longitudinal movement m/min 7-23
table transverse movement auto feed mm/min 0.1-8
rapid speed mm/min 990
feed of handwheel mm/div 0.02
wheelhead vertical movement auto feed mm ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
rapid speed mm/min ---(H/AH model) / 460 (for AHR model)
feed of handwheel mm/div 0.005
grinding wheel speed rpm 2850(50Hz),3450(60Hz)
eize(ODxWxID) mm 200x20x31.75
spindle motor kw 1.5
hydranlic motor kw 0.75
cooling pump motor kw 0.04
elecating motor kw ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)
cross feed motor kw 1.04
max.loading capacity of table(include chuck) kg 120
total rated power kw 3
height of machine:1675mm
floor space(LxW):2050x1400mm
Gross weight:1600kg
package dimensions(LxWxH):1900x1720x2175(mm)

254*508mm, three models to select: M,R,A.
Please reply us your needing of optional accesories in the inquiry, thank you.
Saddle Moving Surface Grinder Fsg-3063
Saddle Moving Surface Grinder Fsg-3063
Saddle Moving Surface Grinder Fsg-3063
Saddle Moving Surface Grinder Fsg-3063
Saddle Moving Surface Grinder Fsg-3063
