5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder

I'm Online Chat Now

5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder

5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder
5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder 5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder 5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder 5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder 5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder 5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder

Large Image :  5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-50500
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

5.5kw Surface Grinding Machine Precision Sga Saddle Moving Surface Grinder

Description
Model NO.: SGA-40100AH /SGA-40100AHR /SGA-40100AHD Working Style: High-speed Universal
Disc Diameter: 230mm Variable Speed: With Variable Speed
Electro Magnetic Chuck Size: 400X1000(mm) Speed Of Table Longitudinal Movement: 7-23m/Min
Spindle Motor: 5.5kw Hydranlic Motor: 2.2kw
Cooling Pump Motor: 0.125kw Transport Package: Wood Case Or Carton
Specification: CE ISO Trademark: G&G
Origin: China HS Code: 846021900
Type: Bench Grinder Power Source: Electricity
Object: Milling Cutter Application: Construction
Disc(Wheel) Type: Grinding Disc Material: Metal
High Light:

5.5kw Surface Grinding Machine

,

5.5kw Saddle Surface Grinder

,

Precision Saddle Surface Grinder

Electric Precision Sga Saddle Moving Surface Grinder

Company Info.

Basic Info.

Model NO.
SGA-40100AH /SGA-40100AHR /SGA-40100AHD
Working Style
High-speed universal
Disc Diameter
230mm
Variable Speed
With Variable Speed
Electro Magnetic Chuck Size
400X1000(mm)
Speed of Table Longitudinal Movement
7-23m/Min
Spindle Motor
5.5kw
Hydranlic Motor
2.2kw
Cooling Pump Motor
0.125kw
Transport Package
Wood Case or Carton
Specification
CE ISO
Trademark
G&G
Origin
China
HS Code
846021900
Production Capacity
100sets/Month

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T

Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter:1020
Max. Grinding Length: 406
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SGA40100
Voltage: 550V
Power(W): 5500W
Dimension(L*W*H): 2950x2270x2210mm
Weight: 4000 kgs
Certification: CE
After-sales Service Provided: No overseas service provided

Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days

Specifications
Surface grinding machine
Table size: 406x1020
Megnetic chuck
Grind wheel size: 350X40X127
SGA saddle moving surface grinder
Item/Model Unit SGA-40100AH
SGA-40100AHR
SGA-40100AHD
table size(WxL) mm 406x1020
max. longitudinal travel mm 1130
max. cross travel mm 450
max. distance from spindle center to table mm 580
electro magnetic chuck size mm 400x1000
speed of table longitudinal movement m/min 7-23
table transverse movement auto feed mm/min 0.1-8
rapid speed mm/min 990
feed of handwheel mm/div 0.02
wheelhead vertical movement auto feed mm ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
rapid speed mm/min ---(H/AH model) / 460 (for AHR model) 240(only for AHD model)
feed of handwheel mm/div 0.005
grinding wheel speed rpm 1450(50Hz),1750(60Hz)
eize(ODxWxID) mm 350x40x127
spindle motor kw 5.5
hydranlic motor kw 2.2
cooling pump motor kw 0.125
elecating motor kw ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)
cross feed motor kw 0.04
max.loading capacity of table(include chuck) kg 600
total rated power kw 9
height of machine mm 1890
floor space(LxW) mm 4400x2400
Gross weight kg 4000
package dimensions(LxWxH) mm 2950x2270x2210

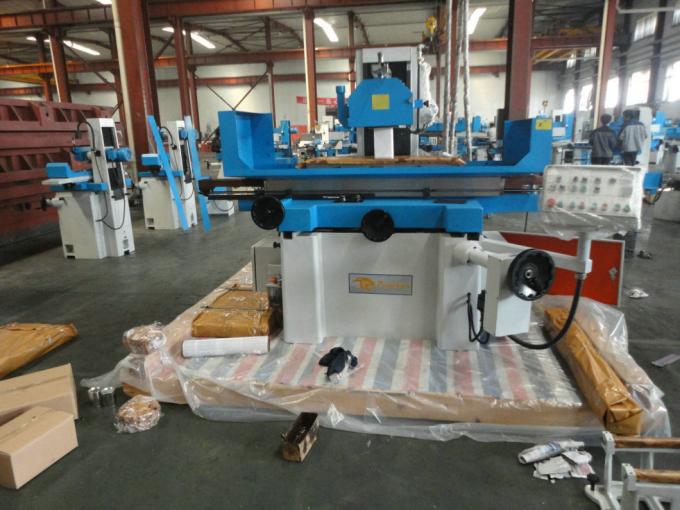

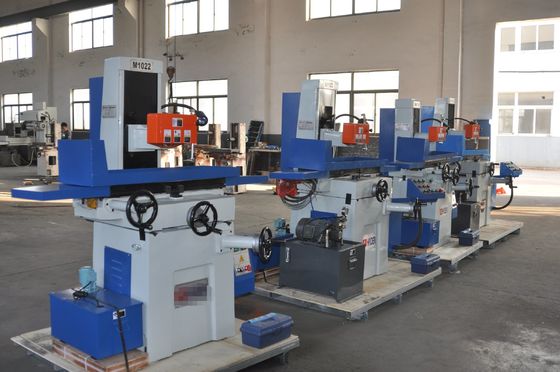

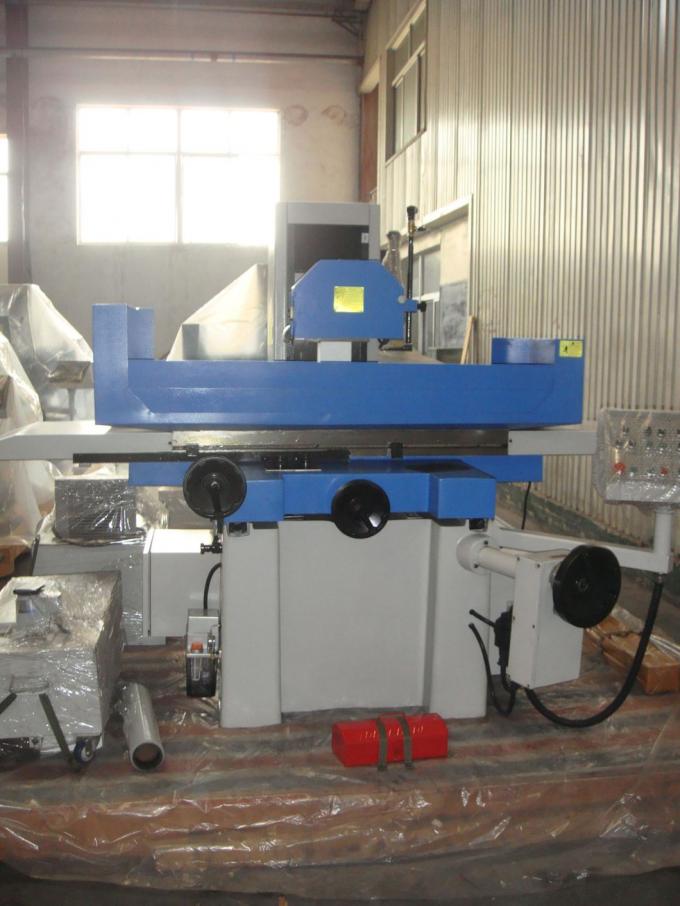

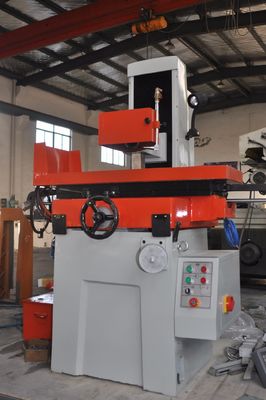

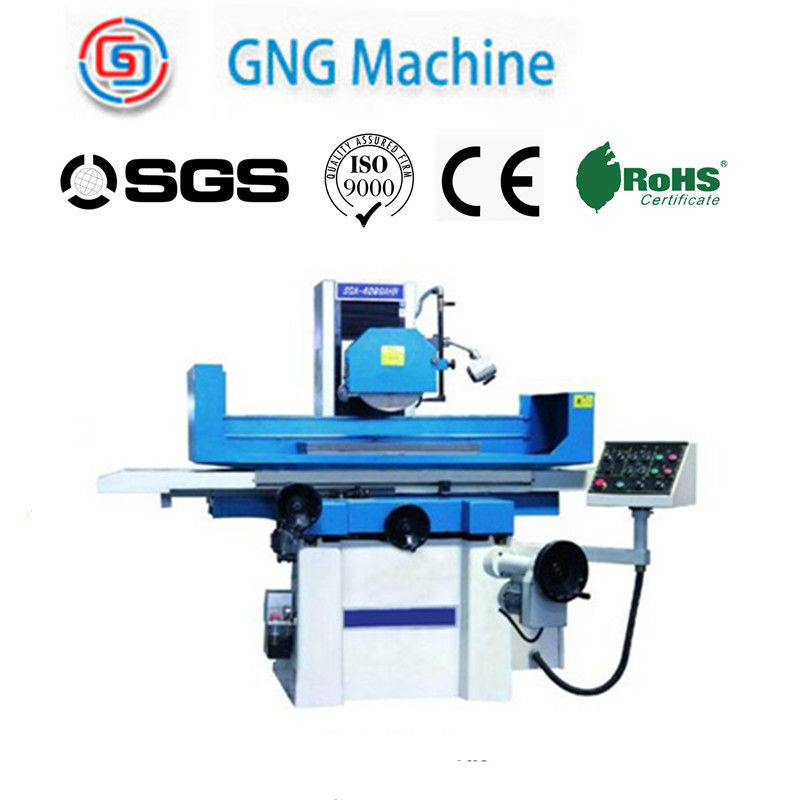

Electric Precision Sga Saddle Moving Surface Grinder

Electric Precision Sga Saddle Moving Surface Grinder
Electric Precision Sga Saddle Moving Surface Grinder
Electric Precision Sga Saddle Moving Surface Grinder
Electric Precision Sga Saddle Moving Surface Grinder
Electric Precision Sga Saddle Moving Surface Grinder
Electric Precision Sga Saddle Moving Surface Grinder
