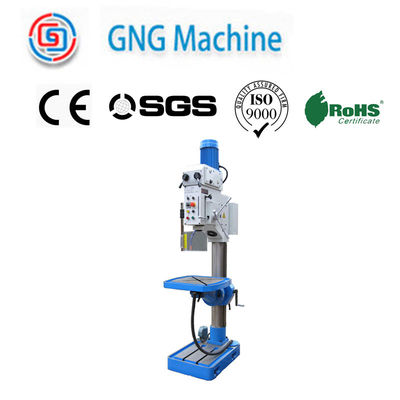

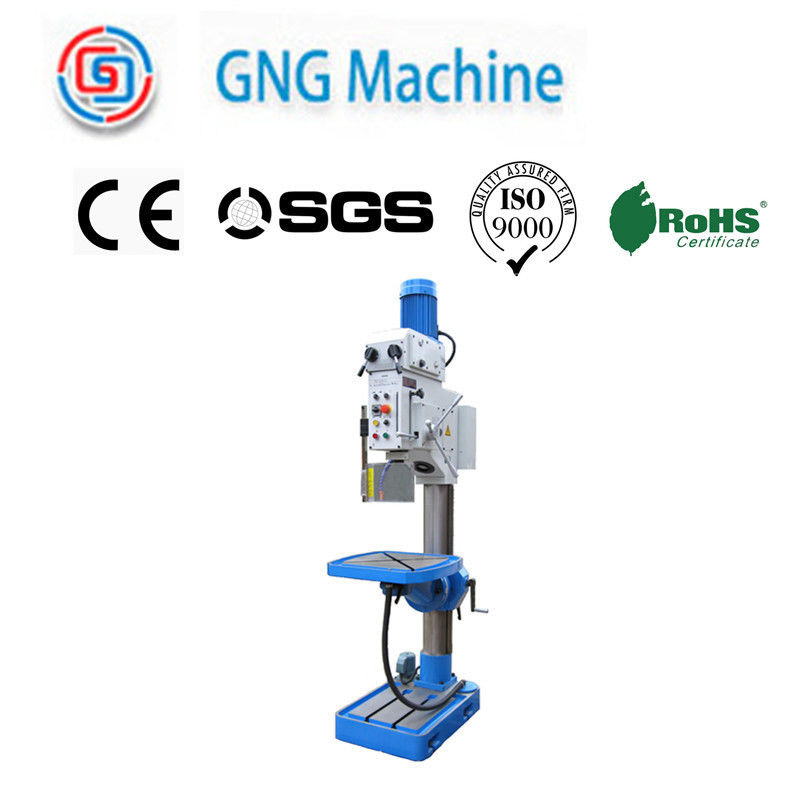

Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press

I'm Online Chat Now

Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press

Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press
Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press

Large Image :  Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press

Product Details:
Place of Origin: China
Certification: GS, CE
Payment & Shipping Terms:
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T

Normal Precision Metal Drilling Machine 1500W Metal Working Drill Press

Description
Supply Ability: 1000 Sets/Month Model NO.: Z5040
Precision: Normal Precision Material: High Speed Steel
Use: Metal Drilling Transport Package: Plywood, Or Wood Case
Specification: CE/GS Trademark: Wei Hao
Origin: Shanghai HS Code: 845911000
Structure: Vertical Drilling Machine Layout: Vertical
Controlling Mode: Artificial Number Of Shaft: 3
Hole Diameter: <50mm Automatic Grade: Semiautomatic
High Light:

Metal Drilling Machine 1500W

,

1500W Metal Working Drill Press

Electric Radial Gear Head Metal Drilling Machine

Company Info.

Basic Info.

Model NO.
Z5040
Precision
Normal Precision
Certification
GS, CE
Material
High Speed Steel
Use
Metal Drilling
Transport Package
Plywood, or Wood Case
Specification
CE/GS
Trademark
Wei hao
Origin
Shanghai
HS Code
845911000
Production Capacity
1000 Sets/Month

Product Description

Min. Order Quantity: 10 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-1450rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: ZS5040
Voltage: 380V
Power(W): 1500W
Dimension(L*W*H): 2270X690X1100mm
Weight: 465kgs
Certification: CE After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 2270X690X1100mm 465/615kg
Delivery Detail: 30-45days
Specifications
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping

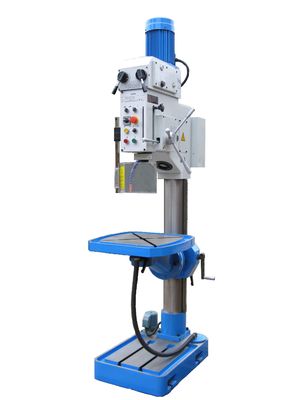

Electric gear head drilling machine model Z5040
Specifications: Z5040(machinery power feed)/Z5040E(electronic power feed)
1. Max. Drilling capacity: 40mm
2. Threading in steel& cast iron: M20&M24
3. Spindle travel: 180mm
4. Spindle taper: MT#4
5. Spindle power feed: 2steps/0.1-0.2mm/rev
6. Spindle speed: 50-1450rpm
7. Width of T-slot: 18mm
8. Max. Distance from spindle axis to surface of column: 350mm
9. Max. Distance from spindle end to surface of table: 770mm
10. Max. Distance from spindle end to surface of bace: 1210mm
11. Table size: 560X560mm
12. Base size: 730X500mm
13. Motor power: 0.75/1.5KW
14. NW/GW: 465/615kg
15. Packing size: 2270X690X1100mm
Feature:
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping
ITEM Z5040
Max.drilling capacity 40mm
Spindle taper M.T.4
Spindle travel 130mm
Step of spindle speed 6
Range of spindle speed     50Hz 80-1250 r.p.m
                        60Hz   95-1500 r.p.m
Min.distance from spindle axis to column 283mm
Max.distance from spindle nose to worktable 725mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock 250mm
Swivel angle of headstock
(horizontal/perpendicular)
360°/±90°
Max.travel of worktable bracket 600mm
Worktable size of avaliablity 380×300mm
Swivel angle of table horizontally 360°
Table leaned ±45°
Size of stand worktable of avaliability 417×416mm
Motor Power 1.1KW(1.5HP)
speed of motor 1400 r.p.m
Net weight/Gross weight 432kg/482kg
Packing size 1850×750×1000mm
Electric Radial Gear Head Metal Drilling Machine
Electric Radial Gear Head Metal Drilling Machine
Electric Radial Gear Head Metal Drilling Machine
Electric Radial Gear Head Metal Drilling Machine
Electric Radial Gear Head Metal Drilling Machine
