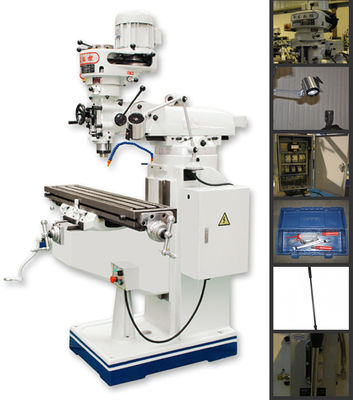

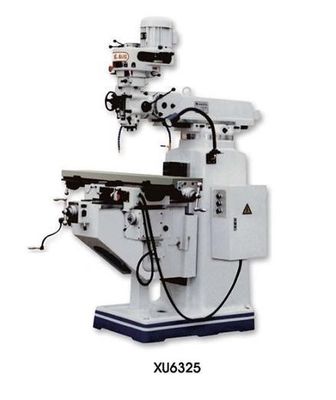

Cantilevered Structure Turret Drilling Machine CNC Universal

Cantilevered Structure Turret Drilling Machine CNC Universal
Cantilevered Structure Turret Drilling Machine CNC Universal Cantilevered Structure Turret Drilling Machine CNC Universal Cantilevered Structure Turret Drilling Machine CNC Universal Cantilevered Structure Turret Drilling Machine CNC Universal Cantilevered Structure Turret Drilling Machine CNC Universal Cantilevered Structure Turret Drilling Machine CNC Universal

Large Image :  Cantilevered Structure Turret Drilling Machine CNC Universal

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T

Cantilevered Structure Turret Drilling Machine CNC Universal

Description
Supply Ability: 300/Per Month Model NO.: X6323B
Automatic Grade: Semiautomatic Precision: Precision
Working Table Size: 230X1246(9"X49") Spindle Hole Taper: R8 Or ISO30/40
Long Travel: 840mm Cross Travel: 305mm
Spindle Motor Power: 2.25kw/3HP Transport Package: Package
Specification: CE Trademark: G&G
Origin: China HS Code: 84595900
Type: Meter Milling Machine Object: Hardware
Structure: Cantilevered Milling Cutter Type: Vertical Milling Cutter
Milling Cutter Structure: Indexable Type Controlling Mode: Program Control
High Light:

Cantilevered Turret Drilling Machine

,

CNC Universal Turret Drilling Machine

CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine

Company Info.

Basic Info.

Model NO.
X6323B
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Working Table Size
230X1246(9"X49")
Spindle Hole Taper
R8 or ISO30/40
Long Travel
840mm
Cross Travel
305mm
Spindle Motor Power
2.25kw/3HP
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China
HS Code
84595900
Production Capacity
300/Per Month

Product Description

CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine
Min. Order Quantity: 1 Set/Sets
Port: Qingdao
Payment Terms: L/C, T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: X6323B
Type: Universal
CNC or Not: Normal
Voltage: 380V
Power(W): 2250W
Dimension(L*W*H): 1400X1476X2030mm
Weight: 1060kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications

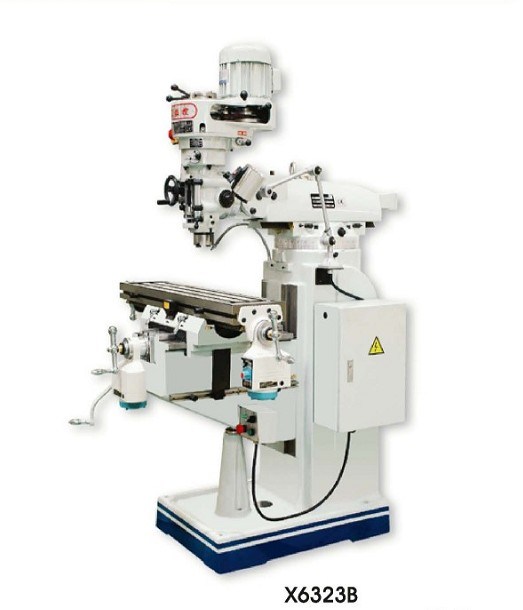

Universal milling machine X6323b

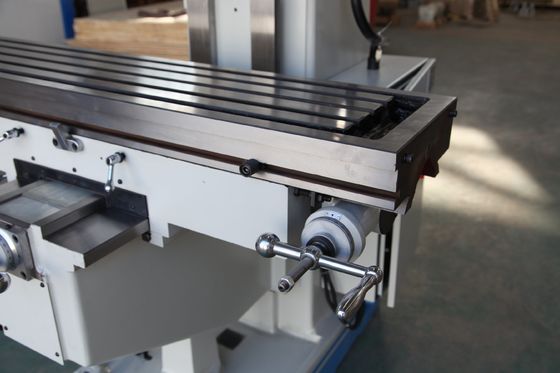

Table size: 230X1246(9"X49")
Long travel: 840mm
Cross travel: 305mm
Vertical travel: 350mm
T-slot number and size: 3X16
RAM travel: 315mm
Distance from spindle nose to table surface: 0-350mm
Spindle hole taper: STANDARD-R8, OPTIONAL ISO30/40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-4200
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 2250W
Head swivel 90°
Head tilting 45°
Packing size: 1400X1476X2030mm
Gross weight 1060kgs

FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.

CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine
CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine
CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine
CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine
CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine
