3HP Milling Drilling Machine ISO 9001 Universal Milling Machine

I'm Online Chat Now

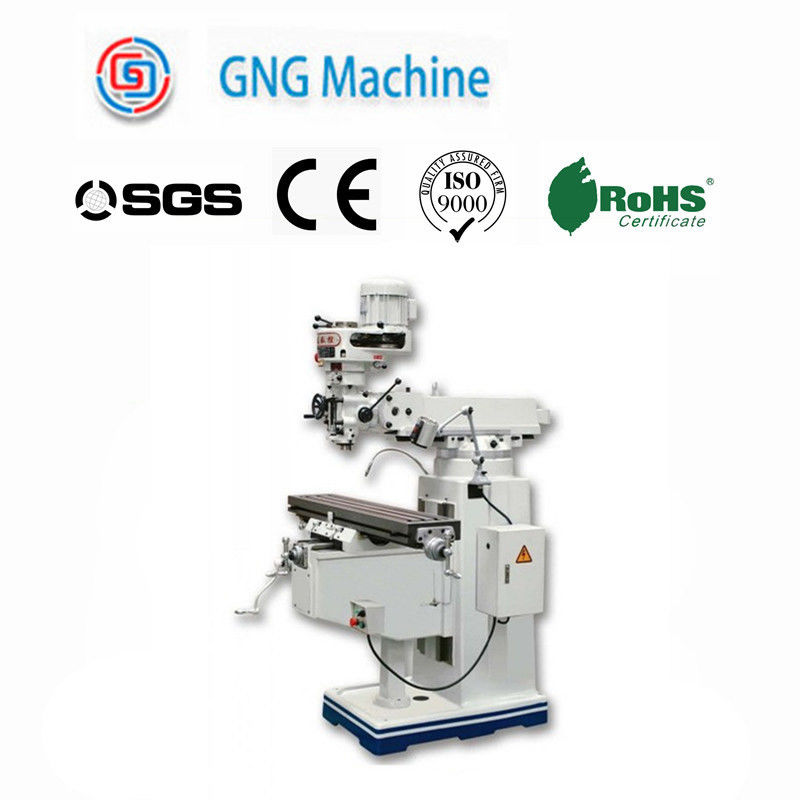

3HP Milling Drilling Machine ISO 9001 Universal Milling Machine

3HP Milling Drilling Machine ISO 9001 Universal Milling Machine
3HP Milling Drilling Machine ISO 9001 Universal Milling Machine 3HP Milling Drilling Machine ISO 9001 Universal Milling Machine 3HP Milling Drilling Machine ISO 9001 Universal Milling Machine 3HP Milling Drilling Machine ISO 9001 Universal Milling Machine 3HP Milling Drilling Machine ISO 9001 Universal Milling Machine 3HP Milling Drilling Machine ISO 9001 Universal Milling Machine

Large Image :  3HP Milling Drilling Machine ISO 9001 Universal Milling Machine

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T

3HP Milling Drilling Machine ISO 9001 Universal Milling Machine

Description
Supply Ability: 300/Per Month Model NO.: X6325A
Automatic Grade: Semiautomatic Precision: Precision
Table Size: 254X1270mm ( 10"X42") Long Travel Size: 850mm
Scross Travel Size: 380mm Vertical Travel Size: 400mm
Spindle Motor: 2250W/3HP Transport Package: Package
Specification: CE Trademark: G&G
Origin: China Shandong HS Code: 845959000
Type: Worktable Milling Machine Object: Hardware
Structure: Bed Type Milling Cutter Type: Angle Milling Cutter
Milling Cutter Structure: Indexable Type Controlling Mode: Artificial
High Light:

3HP Milling Drilling Machine

,

3HP Universal Milling Machine

,

ISO 9001 Universal Milling Machine

Electric CNC High Precision Universal Milling Machine

Company Info.

Basic Info.

Model NO.
X6325A
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Table Size
254X1270mm ( 10"X42")
Long Travel Size
850mm
Scross Travel Size
380mm
Vertical Travel Size
400mm
Spindle Motor
2250W/3HP
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Shandong
HS Code
845959000
Production Capacity
300/Per Month

Product Description

Electric CNC High Precision Universal Milling Machine
Min. Order Quantity: 1 Set/Sets
Port: Qingdao
Payment Terms: L/C, T/T
Quick Details
Condition: New
CNC or Not: Normal
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: X6325A
Type: Universal
Voltage: 380V
Power(W): 2250W
Dimension(L*W*H): 1516X1550X2080mm
Weight: 1280kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Table size 254X1270(10"X50")
Spindle hole taper R8 or ISO30/40
Spindle travel127

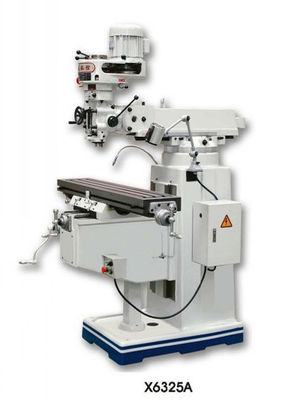

Universal milling machine X6325A
Table size: 254X1270(9"X42")
Long travel: 850mm
Cross travel: 380mm
Vertical travel: 400mm
T-slot number and size: 3X16
RAM travel: 470mm
Distance from spindle nose to table surface: 0-400mm
Spindle hole taper: STANDARD-R8, OPTIONAL ISO30/40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-4200
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 2250W
Head swivel 90°
Head tilting 45°
Packing size: 1516X1550X2080mm
Gross weight 1280kgs
Electric CNC High Precision Universal Milling Machine
Electric CNC High Precision Universal Milling Machine
Electric CNC High Precision Universal Milling Machine
Electric CNC High Precision Universal Milling Machine
Electric CNC High Precision Universal Milling Machine
