Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press

Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press
Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press

Large Image :  Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T

Strong Rigidity Radial Arm Drill Press ISO Heavy Duty Drill Press

Description
Supply Ability: 100 Model NO.: ZX45
Max. End Mill Capacity (Mild Steel): 32mm Spindle Stroke / Travel: 130mm
Spindle Centre To Column Face: 285mm Transport Package: Package
Specification: CE ISO Trademark: G&G
Origin: China Type: Tool Milling Machine
Object: Tool Precision: High Precision
Condition: New Drilling Capacity (Mild Steel): 40mm
Max. Face Mill Capacity (Mild Steel): 80mm
High Light:

Radial Arm Drill Press ISO

,

Strong Rigidity Radial Arm Drill Press

,

Strong Rigidity Heavy Duty Drill Press

High Dovetail Column Milling & Drilling Machine

Company Info.

Basic Info.

Model NO.
ZX45
Max. End Mill Capacity (Mild Steel)
32mm
Spindle Stroke / Travel
130mm
Spindle Centre to Column Face
285mm
Transport Package
Package
Specification
CE ISO
Trademark
G&G
Origin
China
Production Capacity
100

Product Description

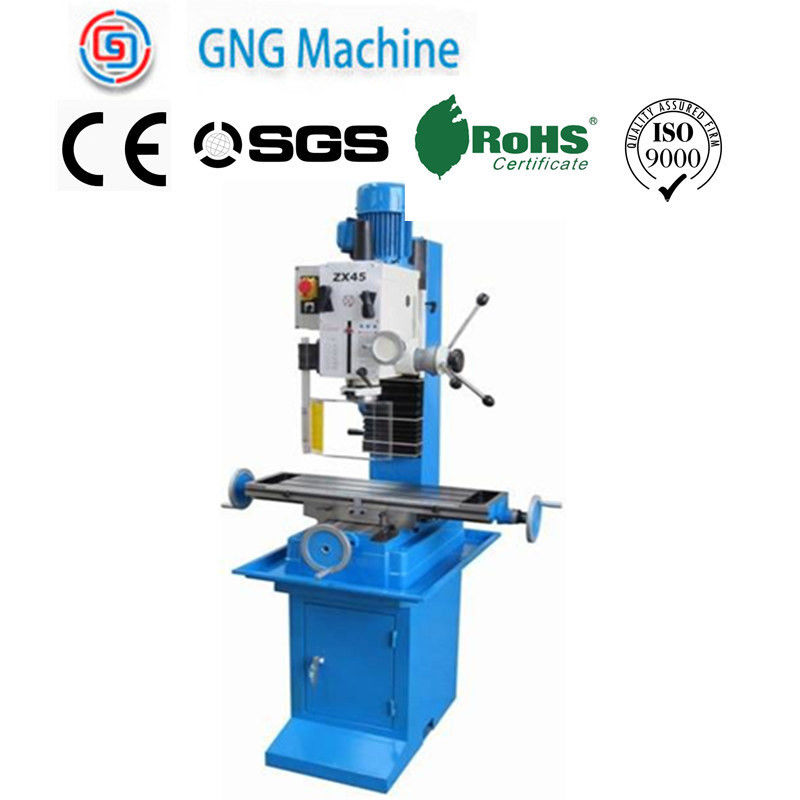

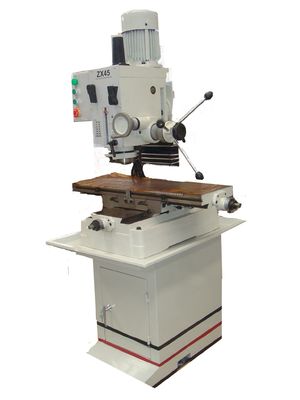

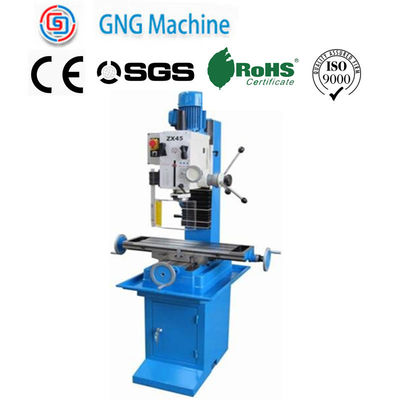

ZX45 Milling & Drilling Machine - High Dovetail Column
 Main specification
Model ZX45 Two Speed Motor

Graduation system Metric
Colour Same colour as above picture
Drilling capacity (Mild Steel) 40mm
Max. Face mill capacity (Mild Steel) 80mm
Max. End mill capacity (Mild Steel) 32mm
Spindle stroke / travel 130mm
Longitudinal Travel (X-axis) 570mm
Cross Travel (Y-axis) 230mm
Vertical Travel (Z-axis) 470mm
Spindle centre to column face 285mm
Head swivels +-90°
Working table size 800mm × 240mm
Motor power 1100W (240 Volt 50Hz Australian 3 Pin Plug)
Spindle taper MT3
Spindle speed 75 - 1600RPM in 6 steps
Drawbar threads M12
Work table capacity 100KG
Table T-Slots size 14mm
Standard accessories DRAW BAR   DRILLCHUCK  MORSE TAPER MT4/B16
Net weight/gross weight 300kg/350kg
Packing size 850X760X1150mm
Features:
  1. Milling drilling, tapping, boring and reaming.Head swivels  +-90°of perpendicularSpindle micro feed precision.Positive spindle lock.Super high column, wide large table and lower noise gear driveHeavy-duty tapered roller bearing spindleAdjustable gibs on table.Accurate position, strong rigidity, strong cutting power.
High Dovetail Column Milling & Drilling Machine
High Dovetail Column Milling & Drilling Machine
High Dovetail Column Milling & Drilling Machine
High Dovetail Column Milling & Drilling Machine
High Dovetail Column Milling & Drilling Machine
High Dovetail Column Milling & Drilling Machine
