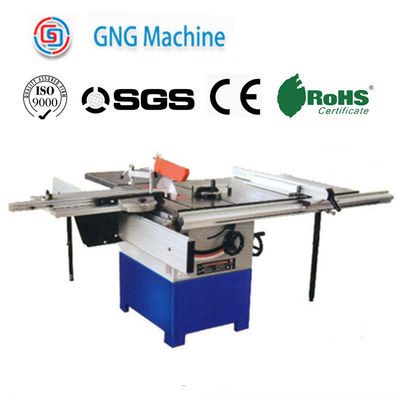

3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine

I'm Online Chat Now

3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine

3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine
3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine 3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine 3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine 3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine 3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine 3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine

Large Image :  3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine

Product Details:
Place of Origin: China
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: USD 510-1300
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 100sets/month

3000W Sliding Cutting Equipment Compact Wood Cutter Table Saw Machine

Description
Model NO.: MJ12-1600/2000/2600/2800/3200 Customized: Customized
Condition: New Color: Customized
Saw Blade Bore Diameter: 30mm Saw Blade Diameter: 315mm
Main Table Size: 600X800mm Cross Extension Table(2PCS) Size: 440X800mm
Rip Extension Table Size: 530X600mm Transport Package: Package
Specification: CE Trademark: G&G
Origin: China Shandong HS Code: 84659200
Type: Table Panel Saw Power Type: Electric
Layout: Horizontal Controlling Mode: Artificial
Automatic Grade: Manual Precision: Precision
High Light:

3000W Sliding Cutting Equipment

,

3000W Wood Cutter Table Saw Machine

Electric Woodworking Sliding Cutting Equipment/ Compact Wood Table Saw Machinery

Company Info.

Basic Info.

Model NO.
MJ12-1600/2000/2600/2800/3200
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Saw Blade Bore Diameter
30mm
Saw Blade Diameter
315mm
Main Table Size
600X800mm
Cross Extension Table(2PCS) Size
440X800mm
Rip Extension Table Size
530X600mm
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Shandong
HS Code
84659200
Production Capacity
300/Per Month

Product Description

Specifications

Min. Order Quantity: 5 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T

Quick Details
Condition: New
Type: Table Panel Saw
Use: Woodworking
Style: Vertical
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Usage: Woodworking
Certification: CE
Warranty: 1year After-sales Service Provided: No overseas service provided

                                                              MODEL  MJ12-1600/2000/2600/2800/3200
Description SLIDING SAW MJ12-1600/2000/2600/2800/3200
TECHNICAL SPECIFICATIONS                       model NO.              EXW QINGDAO price

Motor power 3000W
Main table size 385*800mm
Extension table size (cast iron) 440*800mm
Extension table size(stell plate) 440*800mm
Rear extension table size 310*500mm
Sliding panel size 1600*270mm
Extension sliding panel size 680*580mm
Cross cut fence 1200-2200mm
Main blade size 315*30*3mm
Small blade size 90*20*3mm
Main blade speed 4000rpm
Small blade speed 5800rpm
Max cut depth 100mm @90° 80mm @45°
Max distance-blade to rip fence 1220mm
Sliding panel strock 1600/2000/2600/2800/3200mm
Packing size(mm) 940x765x1000   940x785x1000               1600x766x1040     1600x766x1040         1600x766x1040   1660x250x320               2060x250x320    2660x250x320                       2660x250x320   3260x250x320
N.W/G.W 210/240KGS   210/240KGS    240/300KGS   240/300KGS  240/300KGS  40/50KGS            45/55KGS   56/68KGS    58/70KGS    60/72KGS

Electric Woodworking Sliding Cutting Equipment/ Compact Wood Table Saw Machinery

Electric Woodworking Sliding Cutting Equipment/ Compact Wood Table Saw Machinery
Electric Woodworking Sliding Cutting Equipment/ Compact Wood Table Saw Machinery

Features
1,Circular rod structure with chromium plating, compared with the past linear ball sliding table, has high positioning accuracy, long service life and promotes smoothness.
2,Upgrade large motor, the machine uses pure copper motor, the default main motor is 4kw, the scoring motor is 0.75kw. If you need to cut solid wood and other plates, you can customize 5.5kw+1.1kw large motor.
3,The ruler to adopt the European style large ruler, stable and non-displacement, effectively ensure the precision in the cutting process of the board.
4,Main and scoring saw blade first by a scoring saw blade to open a line, followed by a main saw blade can be easily cut with high precision to prevent chipping burrs.
5,The machine saw blade adopts an electric lifting system, which is more accurate than a hand-cranked saw blade.

Application
It is used for cross-cutting of various kinds of wood-based panels, such as veneers, particleboards, fiberboards, plywood and solid wood panels, aluminum alloys, plexiglass panels, etc.

This is our company's main product. This product has been selling well in Europe, North America, Australia and South America for more than ten years. We can adjust the details according to the different needs of our customers.



Electric Woodworking Sliding Cutting Equipment/ Compact Wood Table Saw Machinery


Electric Woodworking Sliding Cutting Equipment/ Compact Wood Table Saw Machinery
