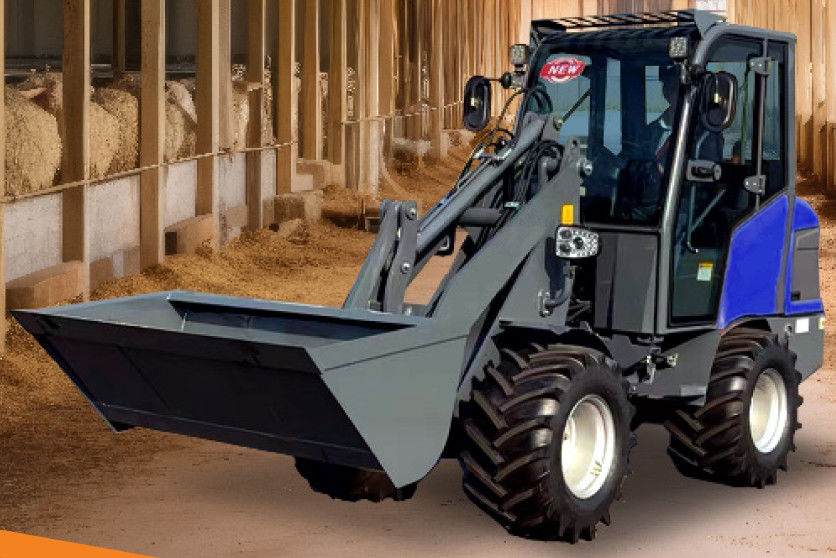

Self-Locking Hydraulic Valves Fully Hydraulic Loader

Min. Order Quantity: 20 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
After-sales Service Provided: No overseas service provided
Delivery Detail: 30-45days

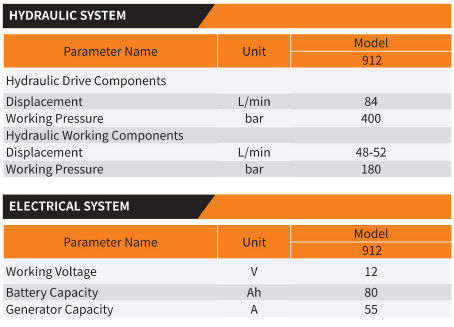

Hydraulic Drive Components
Displacement 84L/min
Working Pressure 400bar
Hydraulic Working Components
Displacement 48-52L/min
Working Pressure 180bar
Working Voltage 12V
Battery Capacity 80Ah
Generator Capacity 55A

Performance characteristics:

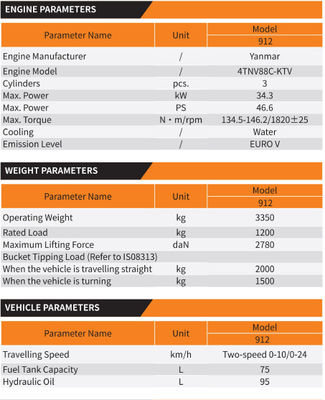

Engine: Yanmar Euro Vengine, equipped with an intelligent electronic control system for the
whole machine.
Hydraulic system: lt adopts plunger pump from ltaly, Bucher self-locking hydraulic
valves,PWG two-speed hydraulic motors, and is equipped with a self-made weighted drive
axle.
Heat dissipation system: Plate-fin heat dissipation system.
Cab related: The self-made cab has a rollover protection system and a faling object protection
system.
Hydraulic pipelines: Imported American-made hydraulic pipelines.
Other features:CE certification. The steering angle is 45 degrees, the seat box can be openedat
an anale of 50 degrees, which is convenient for maintenance. There is a unified exterior design.
