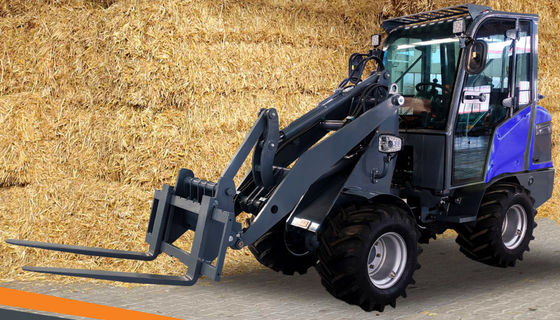

Intelligent Electronic Control System Fully Hydraulic Loader

Min. Order Quantity: 20 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
After-sales Service Provided: No overseas service provided
Delivery Detail: 30-45days

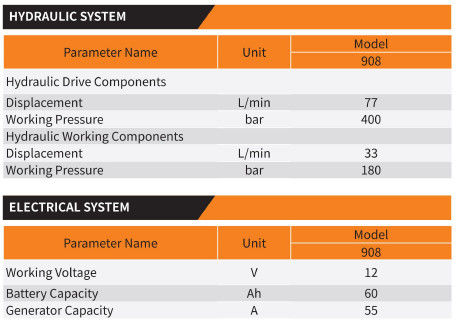

Hydraulic Drive Components
Displacement :77L/min
Working Pressure: 400 bar
Hydraulic Working Components
Displacement :33 L/min
Working Pressure :180 bar
Working Voltage : 12V
Battery Capacity :60Ah
Generator Capacity: 55A

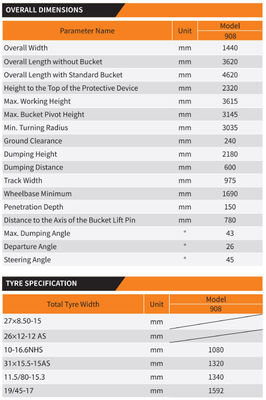

Overall Width :1440mm
Overall Length without Bucket :3620 mm
Overall Length with Standard Bucket: 4620mm
Height to the Top of the Protective Device: 2320mm
Max. Working Height : 3615mm
Max. Bucket Pivot Height :3145mm
Min. Turning Radius : 3035mm
Ground Clearance :240mm
Dumping Height :2180mm
Dumping Distance :600mm
Track Width :975mm
Wheelbase Minimum :1690mm
Penetration Depth :150mm
Distance to the Axis of the Bucket Lift Pin : 780mm
Max. Dumping Angle 43°
Departure Angle 26°
Steering Angle 45°
27×8.50-15 mm
26×12-12 AS mm
10-16.6NHS : 1080mm
31×15.5-15AS :1320mm
11.5/80-15.3 : 1340mm
19/45-17 :1592mm

Performance characteristics:

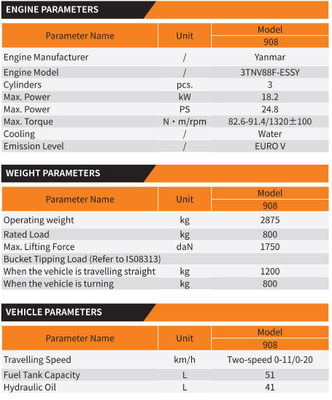

Engine: Yanmar Euro V engine, equipped with an intelligent electronic control system for the
whole machine.
Hydraulic system: lt adopts plunger pump from ltaly, Bucher self-locking hydraulic
valves, PWG two-speed hydraulic motors, and is equipped with a self-made weighted drive
axle.
Heat dissipation system: Plate-fin heat dissipation system.
Cab related: The self-made cab has a rollover protection system and a faling object protection
system.
Hydraulic pipelines: Imported American-made hydraulic pipelines.
Other features: CE certification. The steering angle is 45 degrees, the seat box can be openedat
an anale of 50 degrees, which is convenient for maintenance. There is a unified exterior design.
