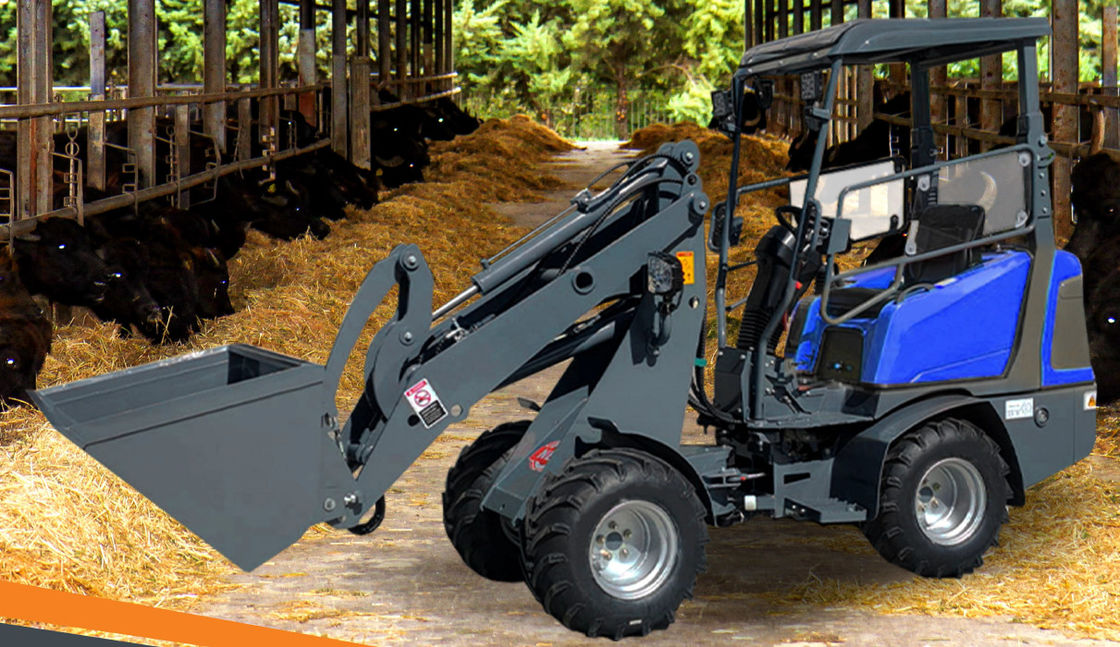

Double Hydraulic Motors Fully Hydraulic Loader

Min. Order Quantity: 20 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
After-sales Service Provided: No overseas service provided
Delivery Detail: 30-45days

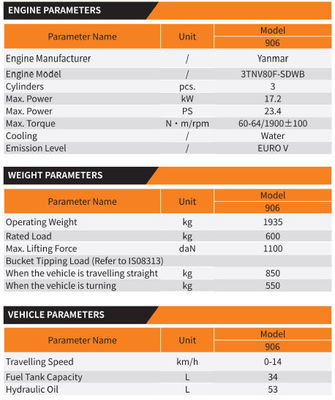

Model KL906
Engine Manufacturer :Yanmar
Engine Model: 3TNV80F-SDWB
Cylinders :3pcs
Max. Power kW :17.2
Max. Power PS: 23.4
Max. Torque N m/rpm: 60-64/1900±100
Cooling : Water
Emission Level : EURO V
Operating Weight kg :1935
Rated Load kg :600
Max. Lifting Force daN :1100
Bucket Tipping Load (Refer to IS08313)
When the vehicle is travelling straight kg :850
When the vehicle is turning kg :550
Travelling Speed km/h :0-14
Fuel Tank Capacity :34L
Hydraulic Oil : 53L

Performance characteristics:
Engine:Yanmar Euro V engine, equipped with an intelligent electronic control system for the
whole machine.

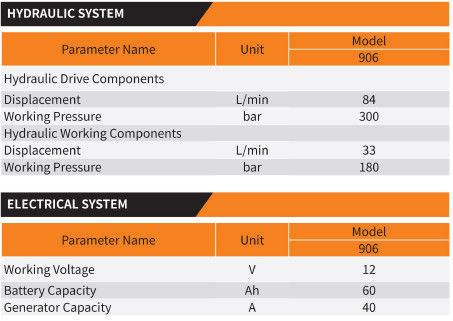

Hydraulic system: lt adopts plunger pump from ltaly, Bucher self-locking hydraulic
valves, double hydraulic motors from Zhenjiang, and is matched with a self-made weighted
drive axle.
Heat dissipation system: Plate-fin heat dissipation system.
Cab related:Self-made cab rollover protection system.
Hydraulic pipelines: Imported American-made hydraulic pipelines.
Other features: The steering angle is 45 degrees, the seat box can be opened at an angle of 70
degrees, which is convenient for maintenance. There is a unified exterior design style, and the
appearance of the whole machine is serially inherited.
