54mm Cnc Metal Lathe

54mm Cnc Metal Lathe
54mm Cnc Metal Lathe 54mm Cnc Metal Lathe 54mm Cnc Metal Lathe 54mm Cnc Metal Lathe 54mm Cnc Metal Lathe 54mm Cnc Metal Lathe

Large Image :  54mm Cnc Metal Lathe

Product Details:
Place of Origin: China
Certification: GS, CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T

54mm Cnc Metal Lathe

Description
Supply Ability: 10/Month Model NO.: CAK6136C
Numerical Control: CNC/MNC Performance Classification: High-End CNC Machine Tools
Condition: New Swing Diameter Over Bed: 400mm
Swing Diameter Over Table: 200mm Spindle Speed(Infinitely): 50~2000(2500)R/Min
Spindle Bore: 54mm Spindle Taper: Mt6
Transport Package: Package Specification: CE
Trademark: G&G Origin: China Jiangsu
HS Code: 845899000 After-sales Service: Unlimited After-Sales Service
Warranty: Unlimited After-Sales Service Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Contour Control
Control Method: Semi-Closed Loop Control
High Light:

54mm Cnc Metal Lathe

,

54mm Cnc Milling Machine

,

High End Cnc Metal Lathe

High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment

Main feature

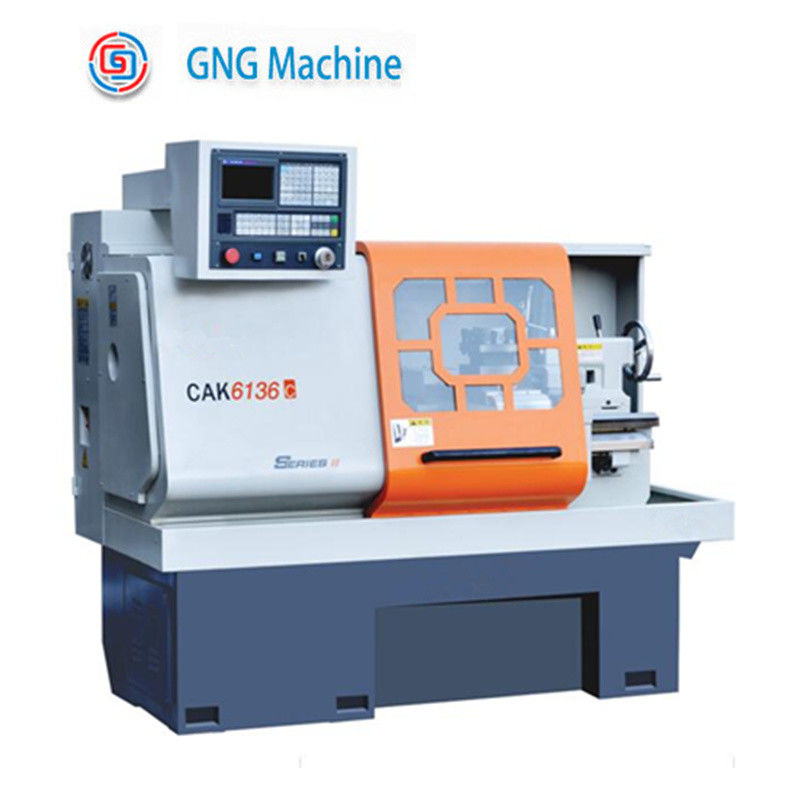

CAK6136C is high efficient CNC lathe.It can turn cylindrical surface,taper surface,arc surface,internal hole,slots and threads,and is suitable for single or mass production of parts.

Standard configuration:

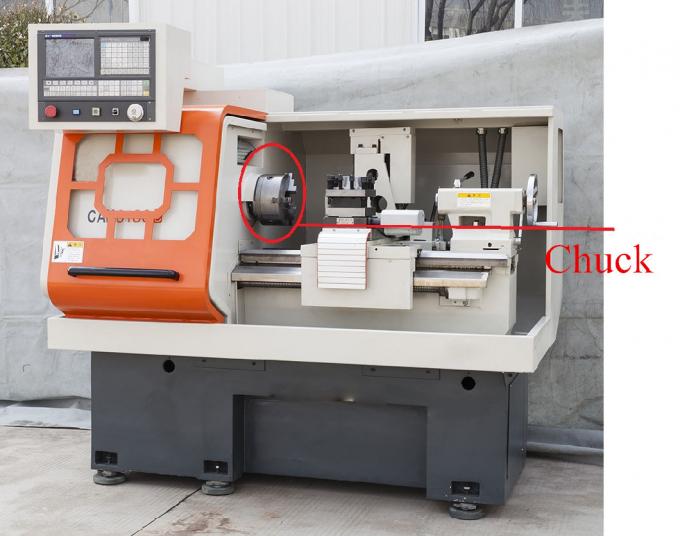

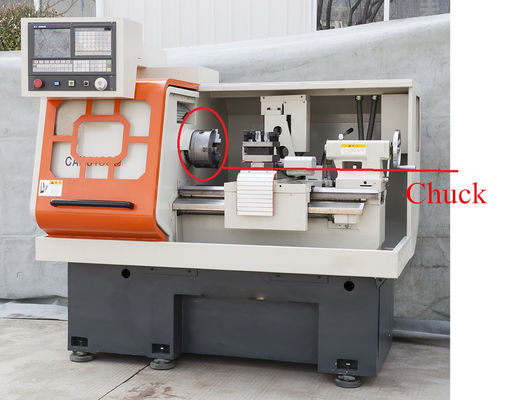

3-jaw chuck
lighting system
automatic lubricating system
cooling system
Siemens 808D system
Fanuc System 4 position electric tool post including a back center .

Special configuration:
steady rest
follow rest
live center
6 position electric toolpost
pneumatic or hydraulic chuck
CNC system of other brands
Parameter  & Price
SPECIFICATIONS  model CAK6136CX535
Swing diameter over bed ф400mm
Swing diameter over table ф200mm
Spindle speed(infinitely) 50~2000(2500)r/min
Spindle bore  54mm
Spindle taper MT6
Distance between centers 535mm
Max.longitudinal stoke 515 mm
Max.cross stoke 300mm
Tailstock  stroke 140mm
Tailstock  taper MT4
Turning tool size 20×20mm
Rapid feed X:6  Z: 8m/min
Circle 0.005mm/100mm
cylinder 0.01mm/100mm
Power of motor 4kW
Min.setting unit 0.001mm
Repositioning accuracy X:0.005 Z:0.006mm
N.W/G.W 1330/1530KGS
Overall dimensions 1820 ×1400×1730mm
Package Veneer box

High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment
CNC Lathe Machine Characteristics:
CNC machine tool is the abbreviation of digital control machine tool, which is an automatic machine tool with program control system. The control system can logically process and decode the program with control code or other symbolic instructions to cause the machine to operate and machine the part.

Compared with ordinary machine tools, CNC machine tools have the following characteristics:
1. High processing precision and stable processing quality;
Multi-coordinate linkage can be performed to process parts with complex shapes;
2. When the machined parts are changed, generally only need to change the NC program, which can save production preparation time;
3. The machine tool itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (usually 3~5 times of ordinary machine tools);
4. The degree of automation of the machine tool is high, which can reduce the labor intensity;
5. Widening high stability bed
6.Two gear spindle speed, stepless in gear
7. Wider layor board
8. Intergrated automatic lubrication system.

Application:
CNC lathes are one of the most widely used CNC machine tools. The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece, and could also turn various threads, circle arc, circle cone, inside and outside surface of revolved body.  and can be used for grooving, drilling, reaming and reaming. Holes and pupils, etc.This machine is widely used in sanitary, value, electrical appliance, instrument, automobile, motor cycle, bearing and so on.


High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.

2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
     We can Provide Technical support online service  and Machine operation Vedio
     We can provide on-site  training and commissioning Vedio
     We can Provide Spare parts replacement and repair service
     Give reasonable offers with the best quality.

3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
      OEM Accepted: We can produce customized design.
      Good Service: We treat clients as friends and provide problem solving anytime you need.
       Good Quality: We have strict quality control system. Good reputation in the market.
       Fast & Delivery: We have big discount from forwarder (Long-term Contract).

4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us

5. What is the MOQ?
---->We usually provide 1 set for customers to test.

6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before delivery)

8.Agents Wanted:

---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas.  Wherever you are from, we are looking forward to explore new market with you.
High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment

High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment
High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment
High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment
High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment
High Precision Horziontal CNC Metal Lathe/CNC Lathe Equipment
