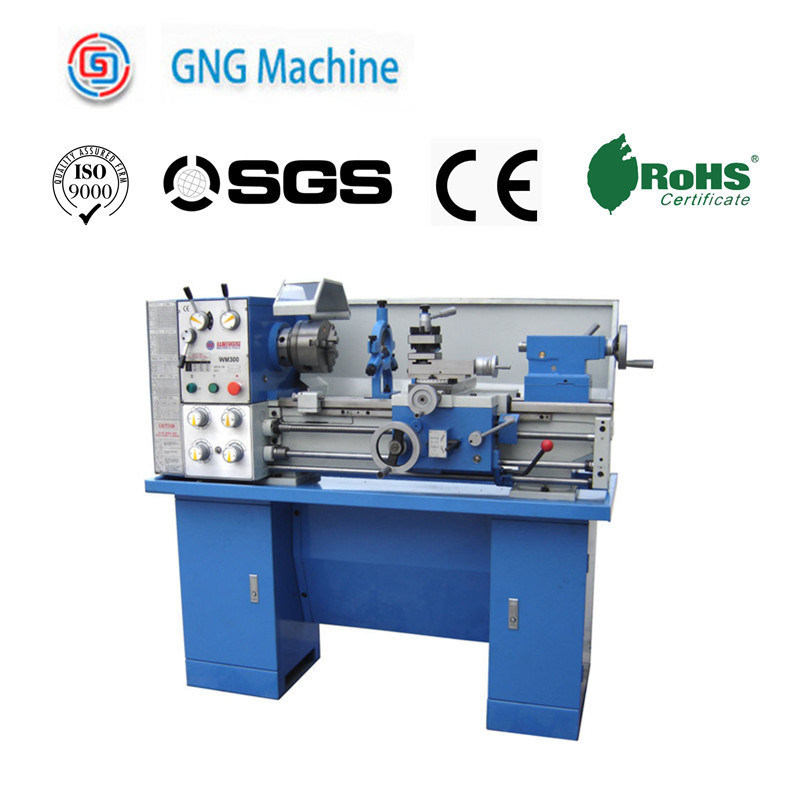

Horizontal CNC Metal Lathe

I'm Online Chat Now

Horizontal CNC Metal Lathe

Horizontal CNC Metal Lathe
Horizontal CNC Metal Lathe
Horizontal CNC Metal Lathe Horizontal CNC Metal Lathe Horizontal CNC Metal Lathe Horizontal CNC Metal Lathe Horizontal CNC Metal Lathe Horizontal CNC Metal Lathe Horizontal CNC Metal Lathe

Large Image :  Horizontal CNC Metal Lathe

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-39000
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

Horizontal CNC Metal Lathe

Description
Model NO.: CQ6230D Automatic Grade: Automatic
Setting Mode: Table Precision: Precision
Condition: New Max. Swing Over Bed: 300mm
Max. Swing Over Cross Slide: 178mm Max. Swing In Gap: 430mm
Centers Distance: 750/914mm Spindle Bore: 38mm
Transport Package: Package Specification: CE
Trademark: G&G Origin: China Jiangsu
HS Code: 84589900 Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe Guide Rail: Horizontal Guide Rail
Tool Holder: Single-tool Holder CNC Lathe Power Source: Electric
Controlling Mode: Artificial
High Light:

Horizontal CNC Metal Lathe

,

Precision CNC Metal Lathe

,

Horizontal Cnc Metal Lathe Machine

With Cover Metal Machining Bench Lathe

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: L/C,T/T

Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 300mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CQ6230D
Voltage: 380v
Power(W): 1100w
Dimension(L*W*H): 173x75x151cm
Weight: 550kgs
Certification: CE
After-sales Service Provided: No overseas service provided
lathe machine in blue color: metal lathe machine can be all colour according customer like universal lathe:
Color: blue

Packaging & Delivery
Packaging Details: packed in plywood package. the customer can requested use te Carton Box or in wood case
Delivery Detail: 30-45days

Specifications
Cheaper price lathe /lathe machine
metal Bench lathe/ Hobby lathe machine/single phase lathe CQ6230 made for modulers' DIY
Model CQ6230D



Max. swing over bed 300mm
Max. swing over cross slide 178mm
Max. swing in gap 430mm
Centers distance 750/914mm
Spindle bore 38mm
Taper of spindle bore MTNO. 5
Spindle speeds 65-1400rpm (65-1810rpm optional)
Longitudinal feed per revolution of spindle(32kinds) 0.052-1.392mm/r0.002"
Cross feed per revolution of spidle(32kinds) 0.014-0.3448mm/r0.0007"
Metric thread can be cut(26kinds) 0.4-7mm
Inch threads can be cut (34kinds) 4-56TPI
Taper of tailstockquill sleeve MTNO. 3
Power of motor 1.1KW / 1.5KW
Net weight 550kgs
with Cover Metal Machining Bench Lathe

with Cover Metal Machining Bench Lathe
with Cover Metal Machining Bench Lathe
with Cover Metal Machining Bench Lathe
with Cover Metal Machining Bench Lathe
with Cover Metal Machining Bench Lathe
