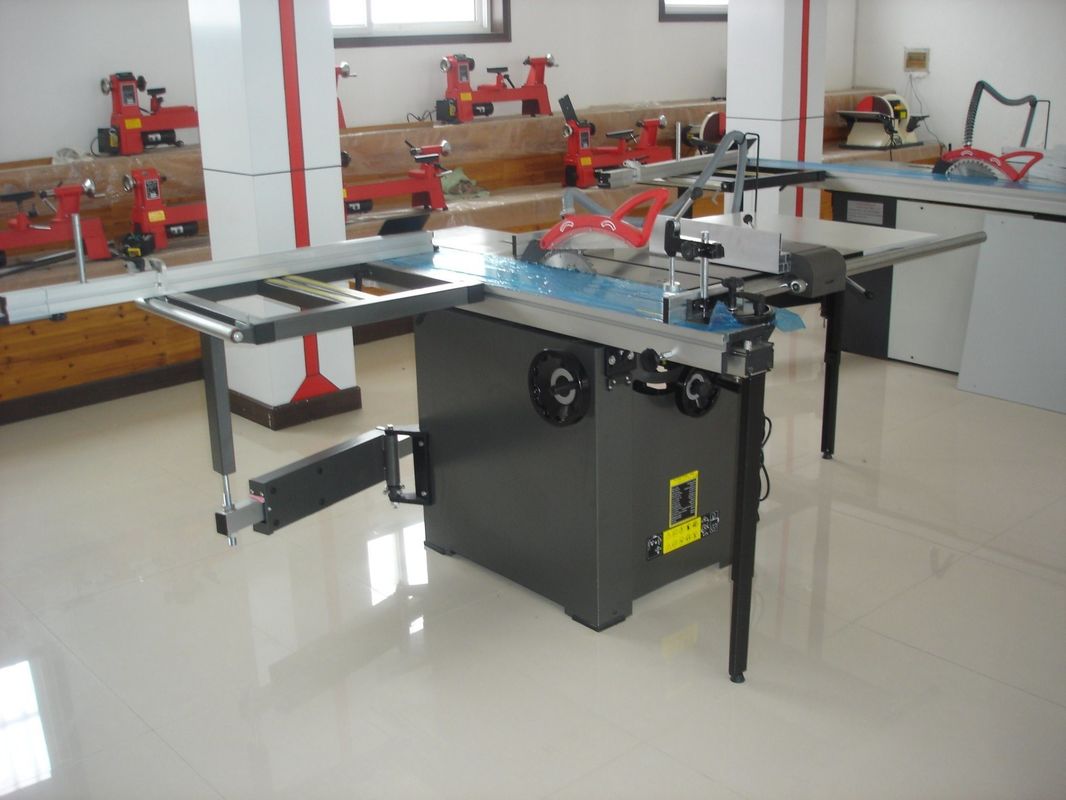

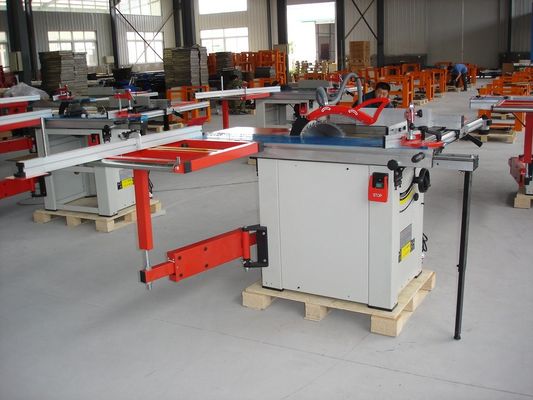

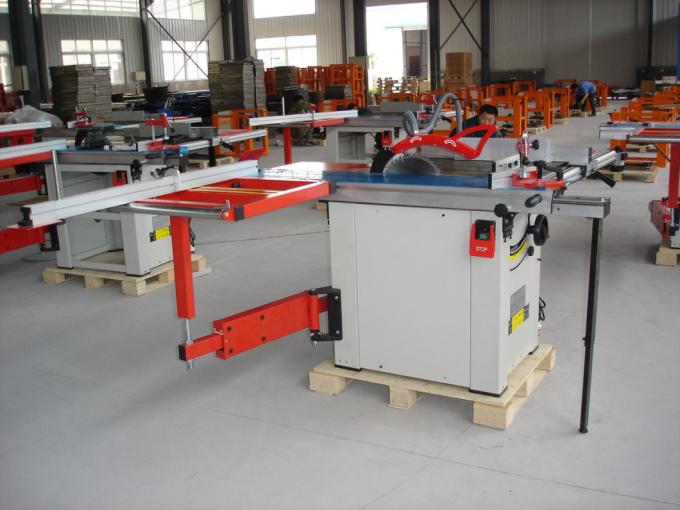

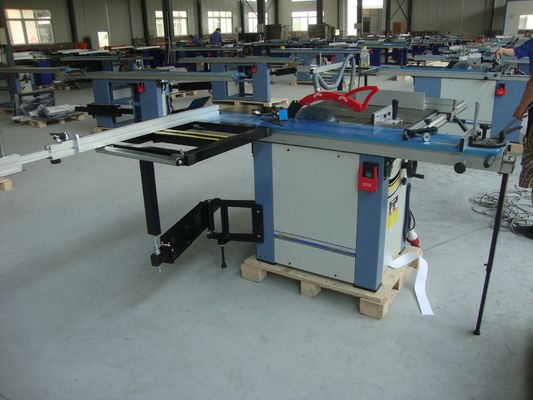

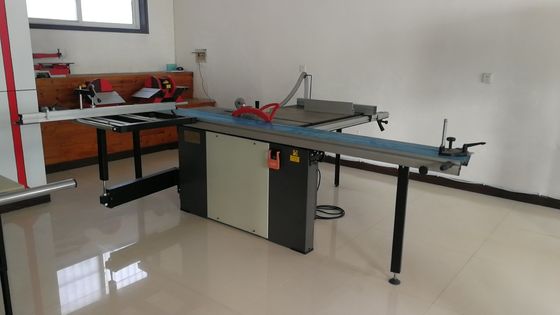

800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw

I'm Online Chat Now

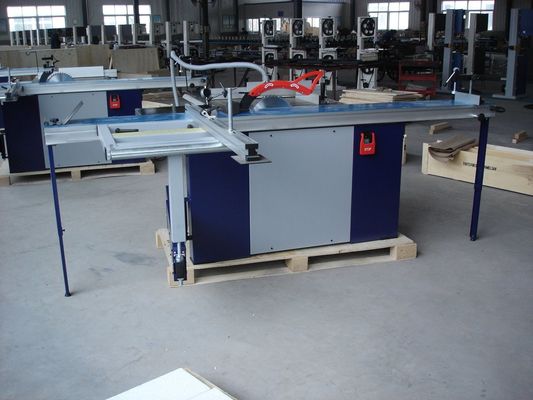

800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw

800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw
800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw 800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw 800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw 800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw 800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw 800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw

Large Image :  800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw

Product Details:
Place of Origin: China
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: USD 510-1300
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 100sets/month

800mm Wood Cutting Table Saw Vertical Woodworking Sliding Table Saw

Description
Model NO.: MJ12-1600 Customized: Customized
Condition: New Color: Customized
Saw Blade Bore Diameter: 30mm Saw Blade Diameter: 315mm
Main Table Size: 600X800mm Cross Extension Table(2PCS) Size: 440X800mm
Rip Extension Table Size: 530X600mm Transport Package: Package
Specification: CE Trademark: G&G
Origin: China Shandong HS Code: 84659200
Type: Table Panel Saw Power Type: Electric
Layout: Horizontal Controlling Mode: Artificial
Automatic Grade: Manual Precision: Precision
High Light:

800mm Wood Cutting Table Saw

,

800mm Woodworking Sliding Table Saw

,

Vertical Woodworking Sliding Table Saw

Electric Woodworking Equipment/ Compact Wood Table Saw

Company Info.

Basic Info.

Model NO.
MJ12-1600
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Saw Blade Bore Diameter
30mm
Saw Blade Diameter
315mm
Main Table Size
600X800mm
Cross Extension Table(2PCS) Size
440X800mm
Rip Extension Table Size
530X600mm
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Shandong
HS Code
84659200
Production Capacity
300/Per Month

Product Description

Specifications
Woodworking Sliding Table Saw MJ12-1600/2000/2600/2800/3200
TECHNICAL SPECIFICATIONS
Motor power 3000W
Major table size 385x800 MM
Extension table(Cast iron) 440x800 MM
Extension table (Steel plate) 440X800 MM
Rear Extension table size 310x500 MM
Sliding panel size 1600x270 MM
Extension sliding panel size 680x580 MM
Cross cut fence 1200-2200 MM
Main blade size 315x30x3 MM
Small blade size 90x20x3 MM
Main blade speed 4000 rpm/min
Small blade speed 5800 rpm/min
Max cut depth 100mm @90°(315)
80mm @45° (315)
Max distance-blade to rip fence 1220 MM
Sliding panel stroke 1600/2000/2600/2800/3200 MM
Packing size (mm) 940x765x1000      940x765x1000
1600x766x1040    1600x766x1040
1600x766x1040    1660x250x320
2060x250x320      2660x250x320
2860x250x320      3260x250x320
N./G.Weight (kgs) 210/240 kgs     210/240kgs    240/300kgs
240/300kgs   240/300kgs   40/50kgs
45/55kgs   56/68kgs   58/70kgs   60/72kgs



FOB Price: US $ 1, 200 - 1, 600 / Set
Min. Order Quantity: 5 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T

Quick Details
Condition: New
Type: Table Panel Saw
Use: Woodworking
Style: Vertical
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: MJ12-1600/2000/2600/2800/3200
Usage: Woodworking
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Delivery Detail: 30-45days
Electric Woodworking Equipment/ Compact Wood Table Saw
Electric Woodworking Equipment/ Compact Wood Table Saw


Features
1,Circular rod structure with chromium plating, compared with the past linear ball sliding table, has high positioning accuracy, long service life and promotes smoothness.
2,Upgrade large motor, the machine uses pure copper motor, the default main motor is 4kw, the scoring motor is 0.75kw. If you need to cut solid wood and other plates, you can customize 5.5kw+1.1kw large motor.
3,The ruler to adopt the European style large ruler, stable and non-displacement, effectively ensure the precision in the cutting process of the board.
4,Main and scoring saw blade first by a scoring saw blade to open a line, followed by a main saw blade can be easily cut with high precision to prevent chipping burrs.
5,The machine saw blade adopts an electric lifting system, which is more accurate than a hand-cranked saw blade.

Application
It is used for cross-cutting of various kinds of wood-based panels, such as veneers, particleboards, fiberboards, plywood and solid wood panels, aluminum alloys, plexiglass panels, etc.

This is our company's main product. This product has been selling well in Europe, North America, Australia and South America for more than ten years. We can adjust the details according to the different needs of our customers.


Electric Woodworking Equipment/ Compact Wood Table Saw
Electric Woodworking Equipment/ Compact Wood Table Saw
Electric Woodworking Equipment/ Compact Wood Table Saw
