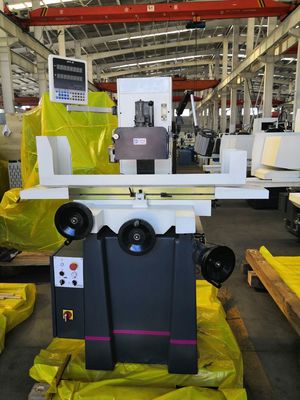

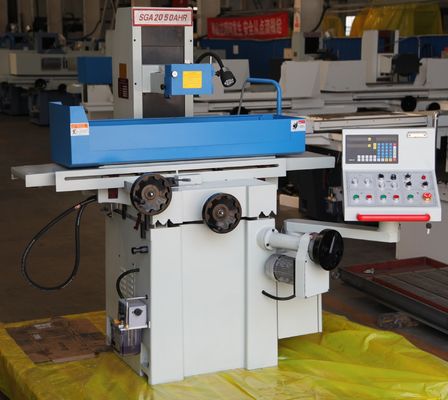

ISO Precision Surface Grinder

I'm Online Chat Now

ISO Precision Surface Grinder

ISO Precision Surface Grinder
ISO Precision Surface Grinder ISO Precision Surface Grinder ISO Precision Surface Grinder ISO Precision Surface Grinder ISO Precision Surface Grinder ISO Precision Surface Grinder

Large Image :  ISO Precision Surface Grinder

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-50500
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 10sets/month

ISO Precision Surface Grinder

Description
Certification: CE, ISO 9001 Model NO.: MDS1022
Transport Package: Carton Or Wood Case Specification: CE ISO
Trademark: GNG MACHINE Origin: China
HS Code: 84571010 Max.Workpiece To Be Ground (Lxwxh)(Mm): 540X50
Maximum Travel Of Table (Lxw)(Mm): 560X260 Table Maximum Cutting Area (Lxw)(Mm): 540X250
Number Of T -Slot: 1X14 Distance From Table Surface To Spind: 450
High Light:

ISO Precision Surface Grinder

,

ISO Surface Grinding Machine

Professional Automatic Precision Surface Grinder

Company Info.

Basic Info.

Model NO.
MDS1022
Transport Package
Carton or Wood Case
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84571010
Production Capacity
1000 Sets/Month

Product Description

Characteristics of machine tools:
Based on manual surface grinder, it covert the longitudinal and vertical machine to fully automatic The bidirectional friction electronic clutch, simple and reliable structure, clutch reversing process has no impact, no noise, safe commutation 5000000 times; the electric control part with electronic switching frequency switching, The service life 10 times longer than the relay control, simple operation, sensitive, infinitely variable; large output torque, low noise, Safe and reliable.  Power supply use a number of mechanical and electrical protection function which is safe voltage, Energy saving, power saving, power consumption per class (calculated according to 8 hours) is only 0.6.When the manual grinding is working,Before and after the workbench's movement, in and out, around the reversing are automatic operation, greatly improving the production's efficiency and the surface finish, suitable scope that from the original single, small  batch to mass batch.
Model       MDS1022
Bench     Max.workpiece  to  be Ground (L×W×H)                              (×) mm 540×250
Maximum travel of table (L × W)                                            (×) mm 560×260
Table maximum cutting area (L × W)                                        (×) mm 540×250
Number  of  T -Slot  T (×) mm 1×14
The grinding head        Distance  From  Table Surface  To  Spindle  Center m 450
Wheel  Size(dia×width×bore)                                                         (WA46K5V) (××) mm ø200×20×ø31.75
Spindle speeds     (50HZ) r/m 2850
The amount of feed             Table longitudinal (left and right) speed (stepless)                                          ()() /min 3--20
Table horizontal (before and after) the amount of feed                      () Continuous (variable speed)                       () m/min 150
Intermittent (stepless)                        () m/ 0-5
The handwheel rotates mm 2.5
Hand wheel each grid  mm 0.02
Vertical (up and down) feed wheel feed                                        () The handwheel rotates mm 1.25
Hand wheel each grid  mm 0.01
Reversing feeder   The total input power    W 150
X- feeder output speed.   X- /min 0--225
X- feeder size   X- m 280×130×120
Y- feeder output speed.   Y- /min 0--120
Y- feeder size M    Y- m 280×130×120
Motor power             Spindle motor  kw 1.5
Cooling motor  kw 0.4
Working precision      The machined surface of the base of parallelism                             m 300/0.005
Surface  Roughness     μm Ra0.32
Weight of machine      Net       kg 880
Cross   kg 980
Packing  Size (L×W×H)      (××) m 1780×1240×1980

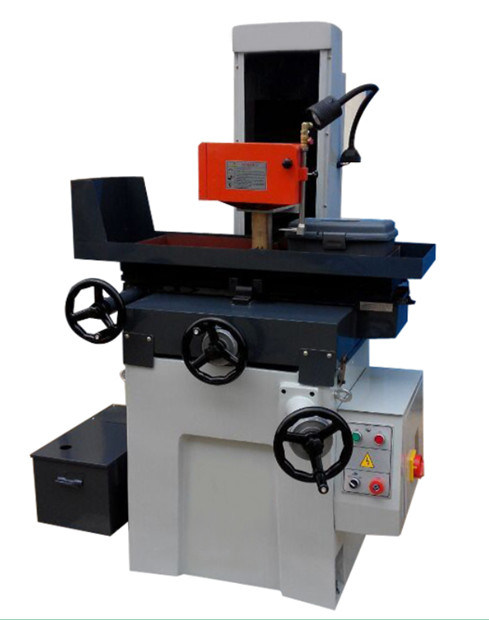

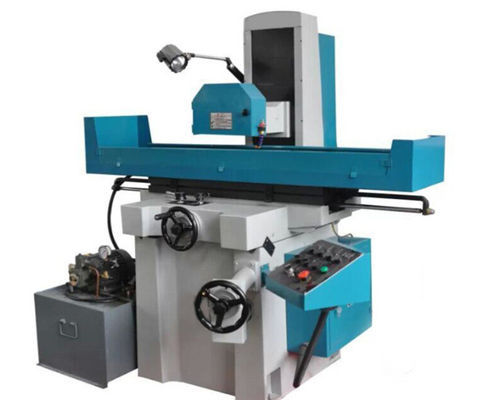

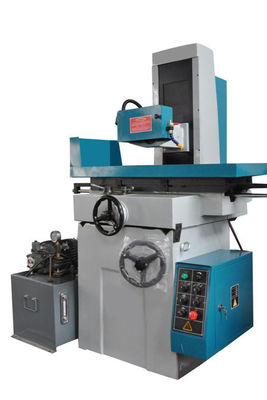

Professional Automatic Precision Surface Grinder
Professional Automatic Precision Surface Grinder
Professional Automatic Precision Surface Grinder
Professional Automatic Precision Surface Grinder
Professional Automatic Precision Surface Grinder
Professional Automatic Precision Surface Grinder
