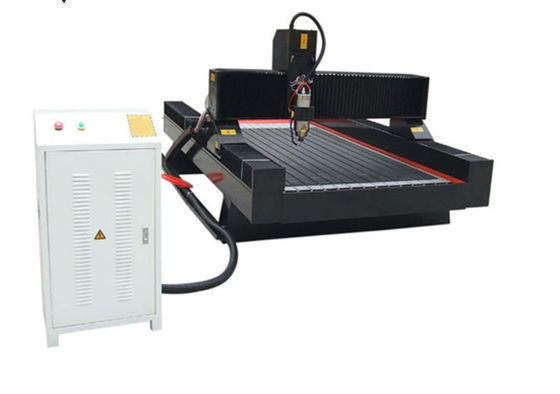

Product Details:
|
| Model NO.: | QL-6090 | Customized: | Non-Customized |
|---|---|---|---|
| Condition: | New | Color: | Customized |
| Z Working Area: | 600mm-1000mm | X. Y Working Area: | 3000*1200mm |
| Working Delicacy: | 0.005mm | Repositioning Accuracy: | 0.05mm |
| Surroundings For Software: | Windows98/2000/XP | Transport Package: | Package |
| Specification: | CE | Trademark: | G&G |
| Origin: | China | HS Code: | 8458910000 |
| Supply Ability: | 100sets/Month | Type: | Wooden Mold Router |
| Spindle Layout: | Spindle Underneath | Spindle Number: | Double-Spindle |
| Feed Mode: | Manual | Controlling Mode: | CNC |
| Certification: | CE, ISO | ||
| High Light: | Wood Router Machine 300mm,300mm Cnc Carving Machine,Leadshine Drive Cnc Carving Machine |
||
| Model | Standard | |
| Working size | 600*900*300mm | |
| Machine body | All cast aluminum | |

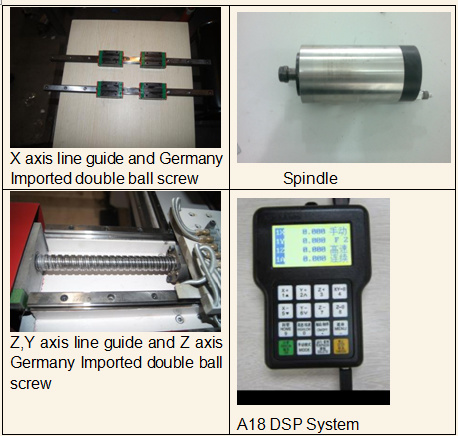

Transmission system |
X.Z |

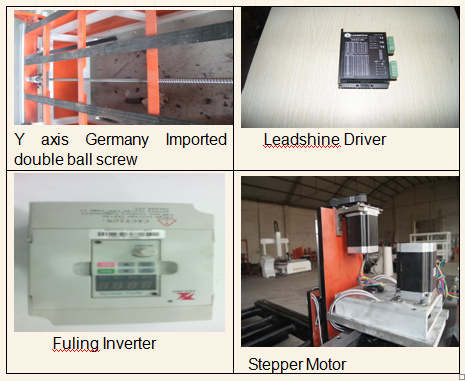

Taiwan Hiwin Square guide,Germany Imported double ball screw - driving |
Y |
Taiwan Hiwin Square guide, Germany Imported double ball screw - driving |
|

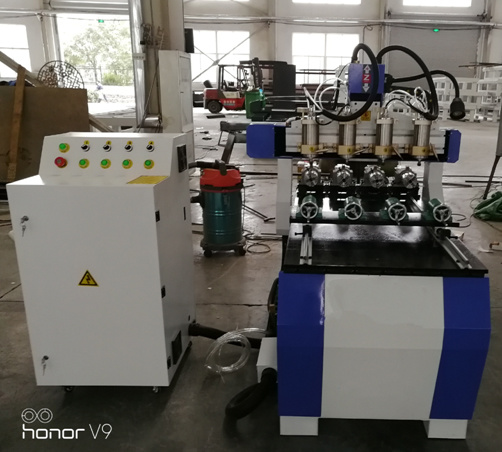

| A | 4 PCS Axis of rotation 500*800area | |
Drive system Drive systems |
X.Y.Z.A | Step motor , Leadshine drive |
Spindle |
Power | 1.5KW water cooling spindle 4 PCS |
| Inverter | Fuling | |
| Collet diameter | Ø3.175-Ø6 | |
Control System |
DSP A18 | |
| Working Voltage | AC220V±30V, 50HZ | |
| Command Code | G Code, *.mmg, *.plt, *.eng | |
| Tool sensor system | Available | |
| Compatible Software | Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad | |
| Packing type | Fumigation-Free Wooden Case | |
| Overall Dimension | 1300*950*1250mm | |
| Gross Weight | 250kg | |
