Min.Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: QL-1212
Voltage: 220V
Power(W): 2200W
Certification: CE
Warranty: 1year
After-sales Service Provided: Overseas third-party support available
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Axis under the control of software,high automation
High speed and efficiency,max.speed over 14m/m
High power spindle

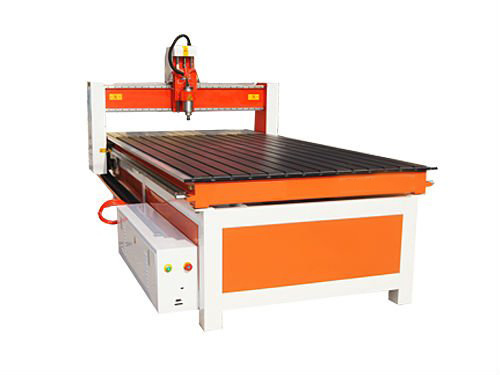

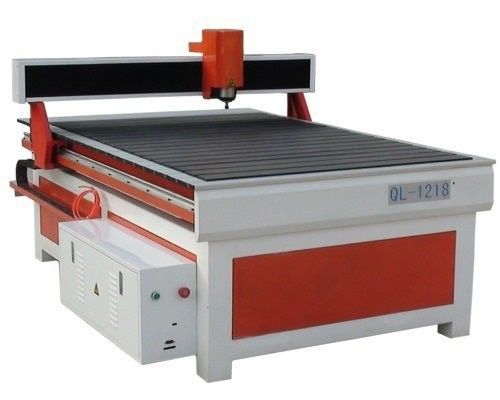

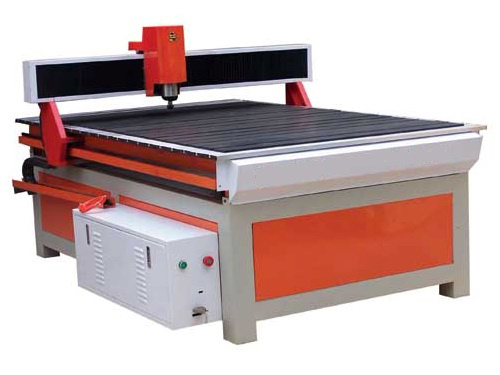

WOODWORKING CNC ROUTER MODEL QL1212
Axis under the control of software, high automation;
High speed and efficiency, max. speed over 14m/m;
High power spindle and good rigidity;

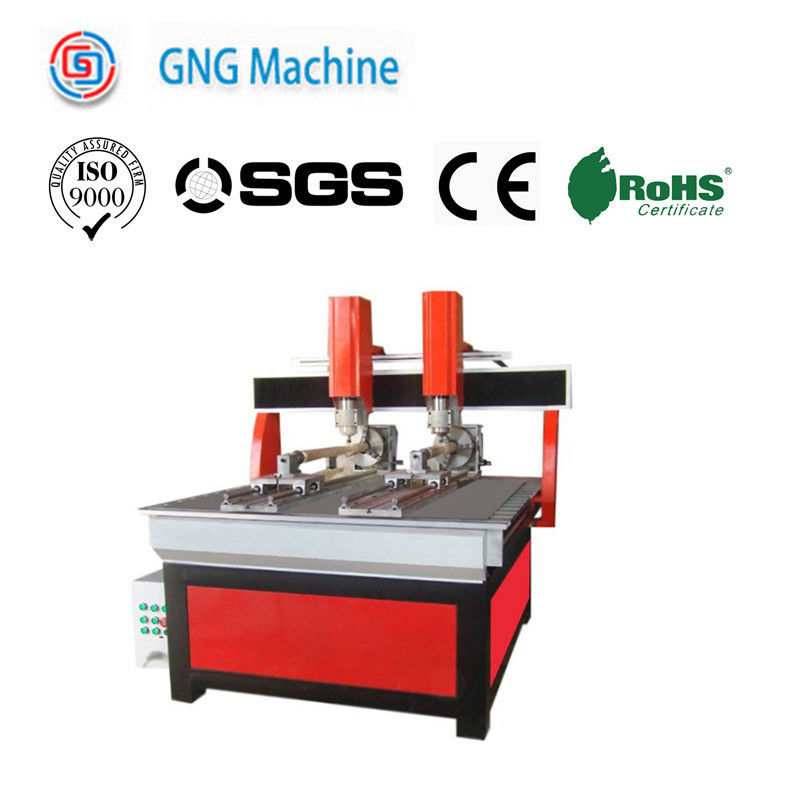

The Multi Spindles CNC Router is with two motors and unique two rack driving, No deformation and vibration after a long-time work at high speed.
Technical Data |
X Y Working Area |
1200mm*1200mm |
Z Working Area |
> 120mm |
Table Size |
1440mm*3000mm |
Max. Speed |
8m/min |
Max. Working Speed |
6m/min |
Working Delicacy |
0.01mm |
Repositioning Accuracy |
0.05mm |
Feeding Height |
120mm |
Command Code |
G Code*. u00*. mmg*. plt |
Working Software |
Windows98/2000/xp |
Power (not including spindle) |
1500w |
Working voltage
|
AC220V/50HZ |
Spindle Power |
2.2kw |
Spindle Running Speed |
0-24000rpm |
Motor |
Stepper |
