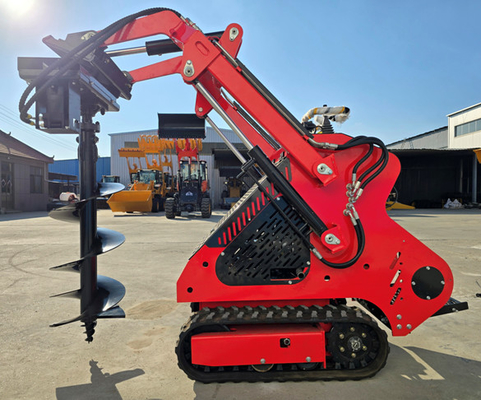

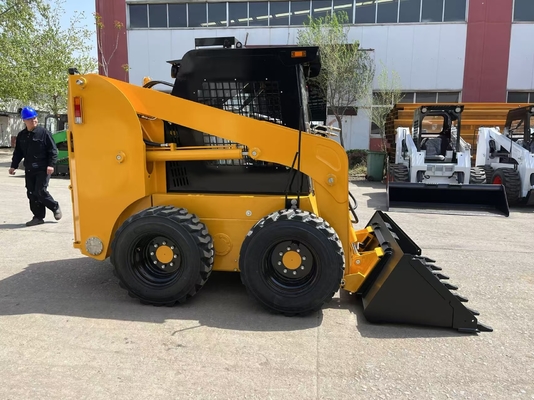

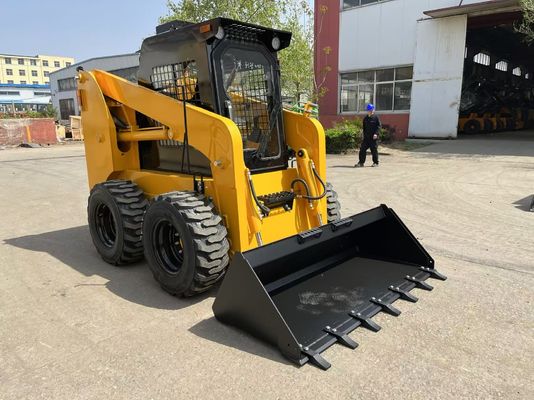

320 Skid Steer Double Pump Loader

You can get our good service after buy from us.

Specifications
Unique Selling Point: EPA Engine
Power: 13.5hp/23.5hp
Bucket capacity : 0.15m3
Loading weight : 320kg
Hydraulic pressure : 17Mpa
Tire Model : 200*72*32mm
Cooling : Air-Cooled
Electrical voltage : 12V
Battery : 45AH
Overall length with bucke t: 2170mm / 85.4 in
Length Without Bucket : 1740mm / 68.5 in
Total width : 830mm / 32.7 in
Max. working height : 2435mm / 96 in
Engine maker : Briggs&Stratton with EPA
Max hinge pin height : 1897mm / 74.7 in
Max. unloading height : 1498mm / 59 in
Dumping reach : 612mm / 24.1 in
Total height of loader : 355mm / 53.3 in
Ground clearance : 92mm / 3.6 in
Wheelbase : 720mm / 28.3 in
Angle of departure : 25°
Rollback of bucket on ground : 26°
Dump angle at maximum height : 34°
Rated power : 17.2kw
Number of cylinder : 3
Displacement : 625ml
Rated speed : 3600rpm
Max. drive speed : 6km/h
Lift time : 4s
Tipping Bucket time : 1.3s
Landing time : 3s
Noise Level : 95dB
Port: Qingdao
Payment Terms: T/T
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
