Product Details:
|
| High Light: | Electric Metal Cutting Bandsaw 220v,7in Metal Cutting Bandsaw,Horizontal Electric Metal Bandsaw |
||
|---|---|---|---|

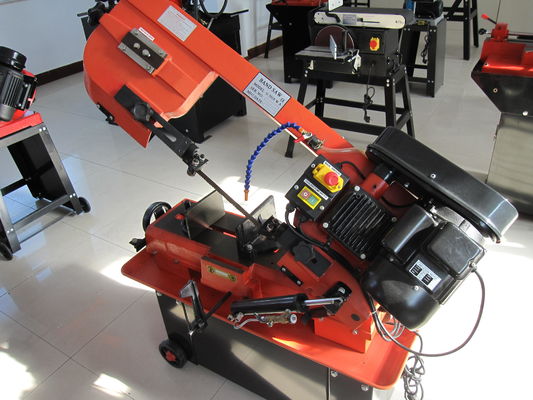

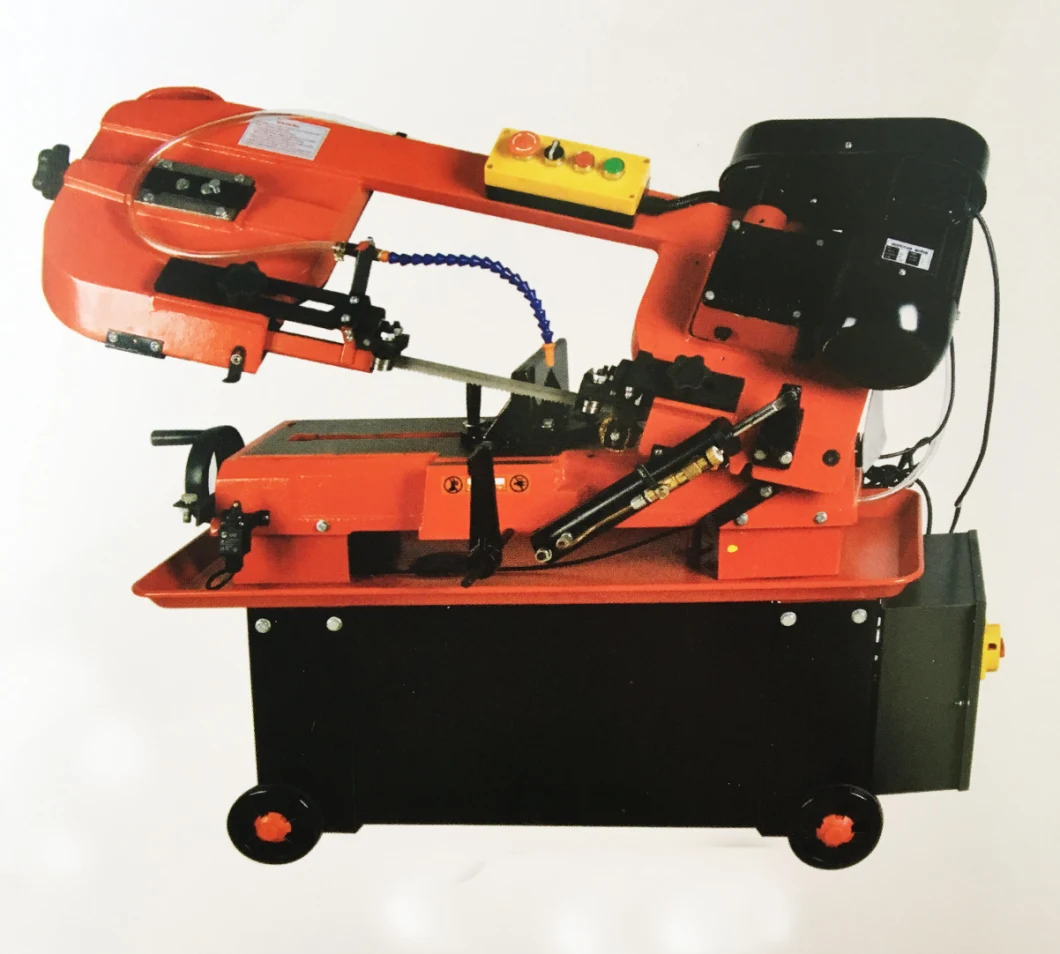

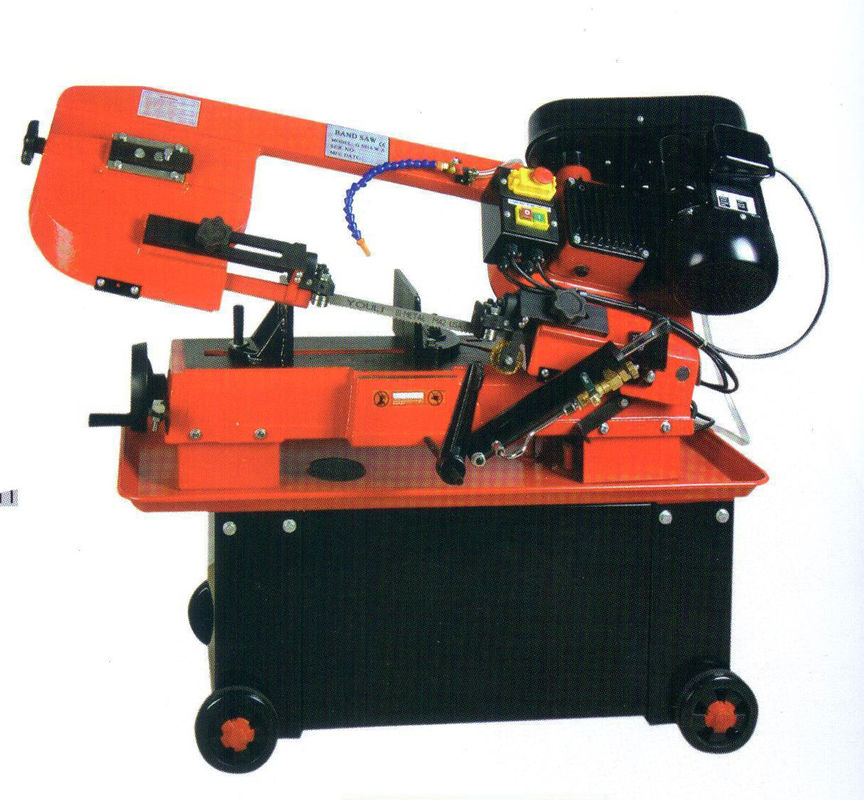

Our horizontal band saw machine features :
1. Maximum capability 7"
2. The belt gear of it has four cutting speeds
3. The quick clamps can be rotated from 0° to 45°
4. Can be used both vertically and horizontally
5. High-capacity due to controlled by motor
6. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
7. Has a sizing device (the machine will automatically stop after sawing materials)
8. With power break protection device, machine will power off automatically when the rear protective cover is opened
7. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
9. Equipped with a block feeder (with fixed sawing length
| G5018WA | |||
| Description | 7" METAL BAND SAW G5018WA | ||
| TECHNICAL SPECIFICATIONS | |||
| Motor power(W) | 750 | ||
| Blade size(mm) | 2360x20x0.9 | ||
| Blade speed(m/min) | 34, 41, 59, 98(50Hz) | ||
| 41, 49, 69, 120(60Hz) | |||
| The bow swivel degree | 0° ~45° | ||
| Cutting capacity at 90° | circle: 180mm | ||
| rectangle: 180x300mm | |||
| Cutting capacity at 45° | circle: 110mm | ||
| rectangle: 110x180mm | |||
| N. W/G. W | 145/180kg | ||
| Packing size(cm) | 126x46x108 | ||
| Quantity per 20' container | 40pcs | ||
| G5015 | |||
| Description | 6" METAL BAND SAW G5015 | ||
| TECHNICAL SPECIFICATIONS | |||
| Motor power(W) | 500 | ||
| Blade size(mm) | 1735x13x0.9 | ||
| Blade speed(m/min) | 20-65 | ||
| The bow swivel degre | 0° ~60° | ||
| Cutting capacity at 90° | circle: 150mm | ||
| rectangle: 150x180mm | |||
| Cutting capacity at 45° | circle: 115mm | ||
| rectangle: 150x115mm | |||
| Cutting capacity at 60° | circle: 70mm | ||
| N. W/G. W | 78/90kg | ||
| Packing size(cm) | 116x58x80 | ||
| Quantity per 20' container |
46pcs |
||
