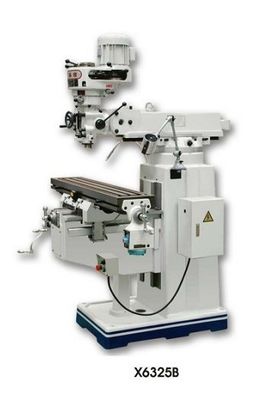

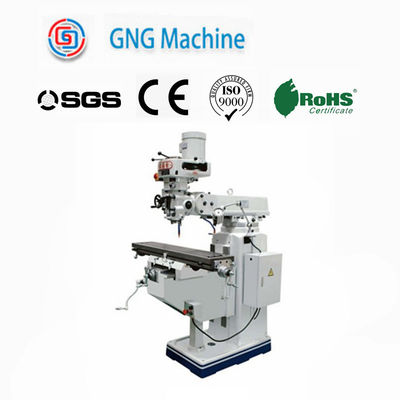

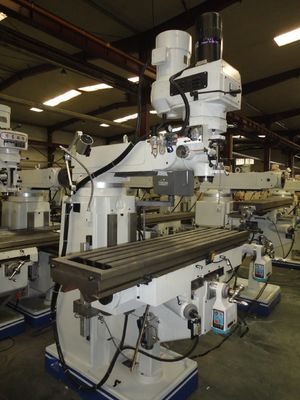

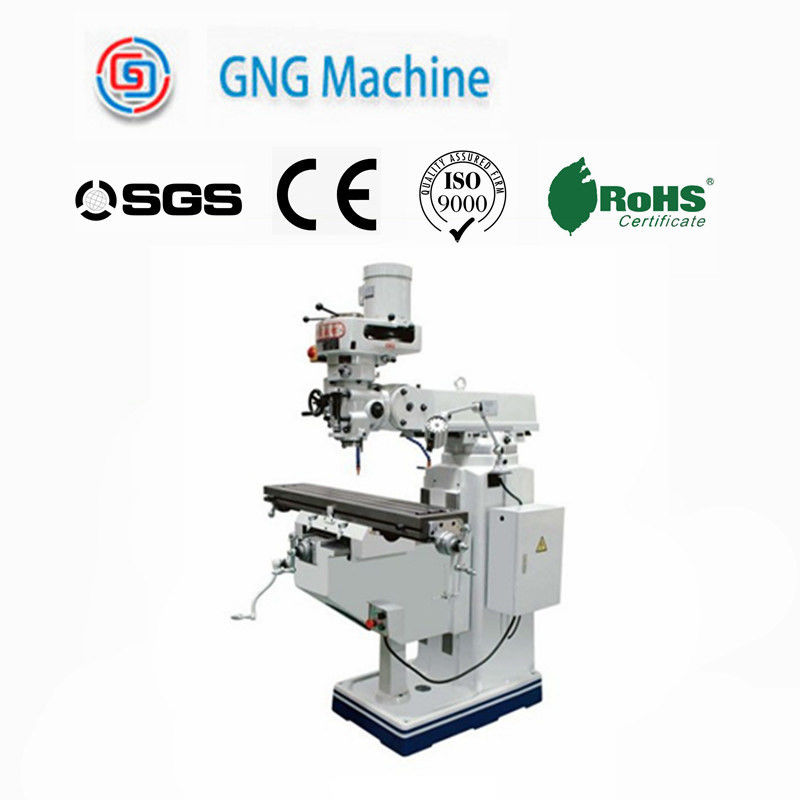

X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine

I'm Online Chat Now

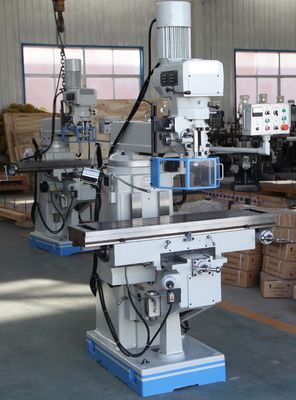

X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine

                 X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine
                 X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine                              X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine                              X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine                              X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine                              X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine                              X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine

Large Image :  X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine

Product Details:
Place of Origin: China
Certification: CE, ISO 9001
Payment & Shipping Terms:
Packaging Details: Carton/Wooden case
Delivery Time: 30-45days
Payment Terms: T/T

X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine

Description
Supply Ability: 50000 /Per Year Model NO.: X6325D
Automatic Grade: Manual Precision: Normal Precision
Milling Table Size: 254X1270(10"X50") Spindle Hole Taper: R8 Or ISO30/40
Long Travel: 850mm Cross Travel: 380mm
Vertical Travel: 400mm RAM Trvel: 470mm
Spindle Motor: 2250W Table Size: 254X1270X(10"X50")
Long Tavel: 850mm Transport Package: Wood Case Or Plywood
Specification: CE, ROHS Trademark: Can Use Customer Brand
Origin: Shandong China HS Code: 845959000
Type: Tool Milling Machine Object: Tool
Structure: Desktop Milling Cutter Type: Cylindrical Milling Cutter
Milling Cutter Structure: Integral Controlling Mode: Program Control

Product Description

Company Info.

Basic Info.

Model NO.
X6325D
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Milling Table Size
254X1270(10"X50")
Spindle Hole Taper
R8 or ISO30/40
Long Travel
850mm
Cross Travel
380mm
Vertical Travel
400mm
RAM Trvel
470mm
Spindle Motor
2250W
Table Size
254X1270X(10"X50")
Long Tavel
850mm
Transport Package
Wood Case or Plywood
Specification
CE, ROHS
Trademark
can use customer brand
Origin
Shandong China
HS Code
845959000
Production Capacity
50000 /Per Year

Product Description

X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine
Min. Order Quantity: 1 Set/Sets
Port: Qingdao
Payment Terms: L/C, T/T
Quick Details
Condition: New
CNC or Not: Normal
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: : X6325D
Voltage: 380V
Power(W): 3750W
Dimension(L*W*H): 1516X1550X2080mm
Weight: 1820kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Table size 254X1270(10"X50")
Spindle hole taper R8 or ISO30/40
Spindle travel127

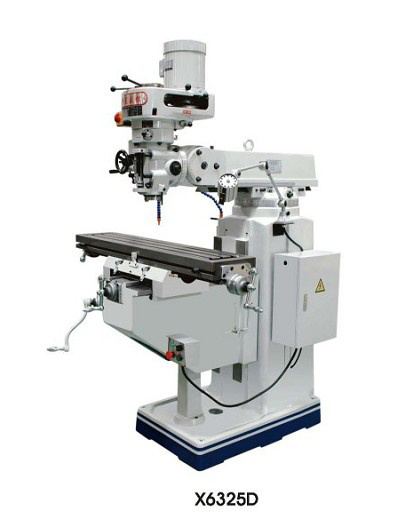

Universal milling machine X6325D
Table size: 254X1270(9"X42")
Long travel: 850mm
Cross travel: 380mm
Vertical travel: 400mm
T-slot number and size: 3X16
RAM travel: 470mm
Distance from spindle nose to table surface: 0-400mm
Spindle hole taper: STANDARD ISO40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-4200
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 2250W
Head swivel 90°
Head tilting 45°
Packing size: 1516X1550X2080mm
Gross weight 1490kgs

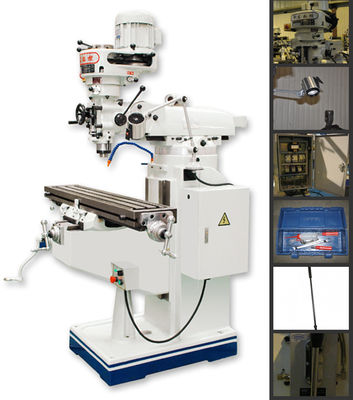

Standard accessories:
1. Drwa bar
2. Tools box and tools
3. Working lamp
4. Electric cabinet
5. Manual oil pump
6. Spindle NT40
Optional accessories:
1. X axis APF750 power feed
2. Y axis APF750 power feed
3. Coolant system
4. Plastic splash guideway sliding guards
5. Oil collecting plate
6. Variable speed head
7. X/Y axes SINO digital readout
8. X/Y/Z axes SINO digital readout
9.58PCS clamping kits
10.8PCS NT40 collect chuck
11.15PCS NT40 collect chuck
12. Spinde guard
X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine
X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine
X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine
X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine
X6235D Universal Heavy Duty Milling Machine Electric High Precision Milling Machine
